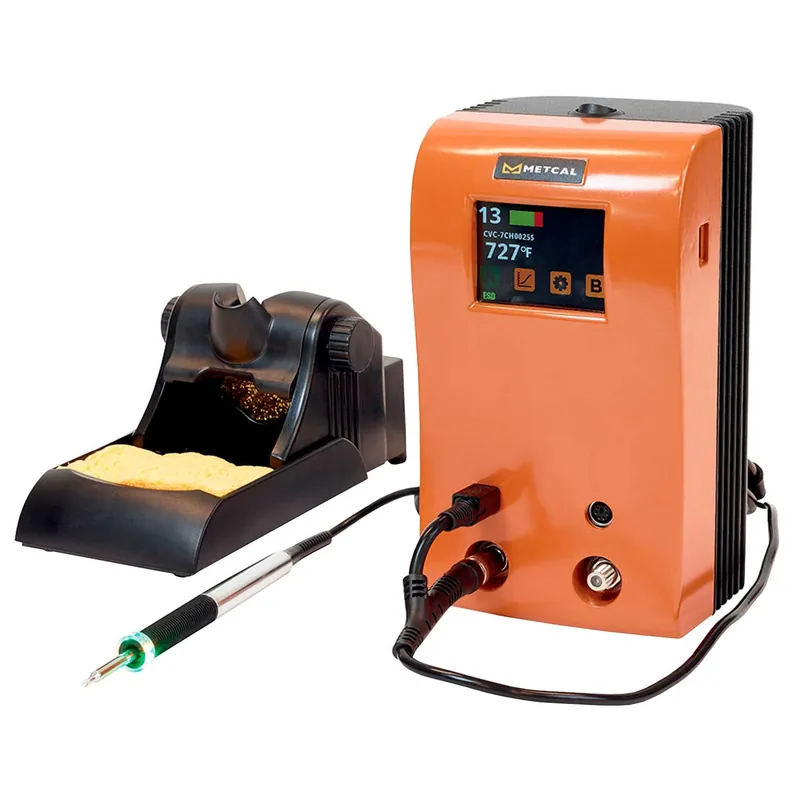

40W Connection Validation Digital Soldering System with Dual Simultaneous Ports

Metcal innovation has led the industry for decades, beginning with SmartHeat® Technology that senses the thermal load and instantly delivers power on demand to the solder joint. The embedded self-regulating heater delivers the right amount of Power based on the requirements of the solder joint. This provides a fast, safe and repeatable process with no calibration required. The intermetallic compound thickness is critical in the formation of a solder joint.

Connection Validation (CV) Evaluates the quality of the solder joint by calculating the intermetallic compound formation and provides closed loop feedback to the operator. CV provides feedback to the operator via the LED light ring integrated in the handpiece. It takes the risk associated with the variables involved in the soldering activity and removes the success and failure determination of a good solder joint out of the hands of the operator. CV complements the skill of the operator to judge the quality of a solder joint by introducing an objective method of evaluating solder joint quality. This systemic and objective approach provides repeatability and a measurable standard to the soldering process.

Specifications

Input Line Voltage: 100 – 240 VAC, grounded circuit, 50/60 Hz

Rated Power Consumption: 85 W max.

Output Power: Variable, 40 W max.*

Output Frequency: 13.56 MHz

Heating Method: Induction, smartHeat®

Display: 2.8” Color TFT Touch Display

Display Resolution: 320*240 RGB

Display Size: 2.8” Diagonal

Display Active Area: 43.20 x 57.60 mm

Connections: Dual Port, switchable

Interface -Communication/Firmware Upgrade: Via USB port and appropriate software with compatible computer and cables.

Power Supply Dim. W x D x H: 121 x 121 x 220 mm (4.8″” x 4.8″” x 8.7″”)

Power Supply Weight: 2.65 kg (5.8 lb.)

Certification / Marking: cTUVus, CE

Tip-to- Ground Potential: Tip-to-Ground Resistance: < 2 Ohm

Ground Detection: Permanent

Surface Resistivity: 10⁵ – 10⁹ Ohm

Idle Temperature Stability: 1.1°C ( 2°F) in still air

Tip Temperature Accuracy: Meets or exceeds IPC J-STD-001 Standard

Power Cord Length: 183 cm, 18/3 SJT

Warranty: 5 years

Ambient Operating Temp: 10 – 40°C (50 – 104°F)

Max. Enclosure Temp: 55°C (131°F)
