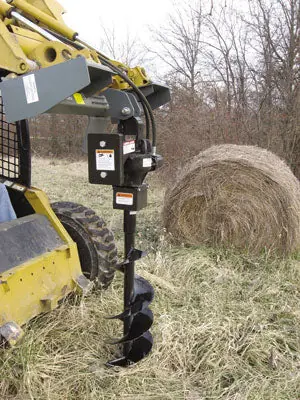

914HC Skid Steer Mounted Hydraulic Post Hole Digger
Increase your reach over shrubs, fence lines and other obstructions with a skid steer mounted 914HC/924HC hydraulically driven digger. It’s a great time saver with exceptional up-front visibility and control. Frame design incorporates a gearbox cradle to eliminate auger swing during transport. Choose from 6” to 24” diameter augers. Counter weights assures the digger maintains its vertical position. Note: These diggers will also fit on tractor loaders equipped with the “universal” skid steer attaching system. Models are also available for tractor loaders with the Euro/Global bucket quick attach system.
Specifications
Model
914HC
Mount Type
Skid Steer
Skid Steer
Euro/Global
Gearbox Ratio
3.18:1
3.18:1
3.18:1
Gearbox Output Shaft
2″
2″
2”
Gearbox Bearings
Tapered Roller
Tapered Roller
Tapered Roller
Gearbox Seals
Double lip, spring loaded
Double lip, spring loaded
Double lip, spring loaded
Drive Type
Hydraulic
Hydraulic
Hydraulic
Gearbox Ltd. Warranty
5-yrs.
5-yrs.
5-yrs.
Hyd. Requirement
5-10 GPM
10-20 GPM
10-20 GPM
Hyd. Pressure psi
1500-3000
1500-3000
1500-3000
Auger Sizes
6” thru 14″
6” thru 24″
6” thru 24”
Auger Length
42″
42″
42”
Auger Type
STD, HDSF, HDDF
STD, HDSF, HDDF
STD, HDSF, HDDF
Auger Point – Bolt-in
Fish Tail
Fish Tail
Fish Tail
12″ Auger Ext.
Opt. (170705)
Opt. (170705)
Opt. (170705)
Weight (lbs.)
208
210
220
Product Number
702120
702125
702135
Worksaver Augers
Model
Item #
Description
6″ STD
170585
6″ Standard Duty Single Flight Auger with Teeth
9″ STD
170710
9″ Standard Duty Single Flight Auger with Teeth
12″ STD
170720
12″ Standard Duty Single Flight Auger with Teeth
6″ HDSF
706150
6″ HD Single Flight Auger with Teeth
6″ HDDF
706155
6″ HD Double Flight Auger with Teeth
9″ HDSF
706109
9″ HD Single Flight Auger with Teeth
9″ HDDF
706009
9″ HD Double Flight Auger with Teeth
12″ HDSF
706112
12″ HD Single Flight Auger with Teeth
12″ HDDF
706012
12″ HD Double Flight Auger with Teeth
14″ HDSF
706033
14″ HD Single Flight Auger with Teeth
14″ HDDF
706037
14″ HD Double Flight Auger with Teeth
18″ HDDF
706070
18″ HD Double Flight Auger with Teeth
24″ HDDF
706075
24″ HD Double Flight Auger with Teeth
12″ Ext.
12″ Optional Extension
Standard Duty Augers:use for lighter soils free of stones, roots, etc. Heavy Duty Single Flight Augers:use for tougher digging or where stones, roots, etc. may be present. Heavy Duty Double Flight Augers:use for loose soil such as sand/gravel to help carry soil to the surface.
