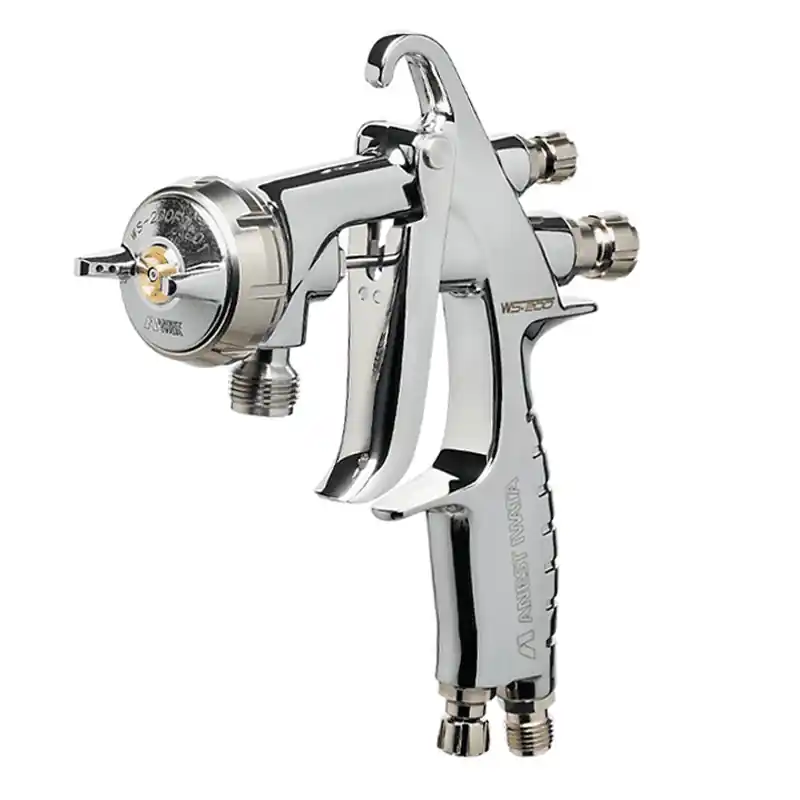

Anest Iwata WS-200 SP Pressure Feed Spray Gun

Anest Iwata Premium Pressure Fed Spray Gun

Manufacturer: Anest Iwata

Part #: WS200SP-XXXX

Description: WS-200 SP Pressure Feed Spray Gun featuring Split Nozzle™ technology

By increasing the spray gun’s atomization performance, the Split Nozzle™ technology increases the balance and stability of the droplets in combination with the flat spray pattern air caps to help reduce popping and boil on clear coats and mottle and shade on base coats.

The optimized fan pattern of Split Nozzle™ technology is a unique shape: perfectly even and flat with a large wet core. This helps to achieve an even lay-down of paint, avoiding mottle and creating little overspray.

The optimized paint delivery of Split Nozzle™ technology helps you apply the perfect amount of paint. The benefits of which can keep your costs low with the amount of paint material saved, while keeping quality high.

Features:

Nozzle Versatility – The WS200 comes equipped with Split Nozzle™ technology: a serrated split nozzle creates the unique Anest Iwata Pre-Atomization. This patented performance makes it the go-to gun for many precision applications.

Increasing Market Standards – The WS200 is fitted with a new linear pattern adjustment system to help speed up the fan to spot process of the pressure gun, plus the WS200 has a reduced sticking and smoother trigger action giving the painter a really responsive application experience.

Ergonomic Design – With its slim, light-weight, ergonomic dropped forged body, plus its easy to remove baffle and service air valve seat construction, the WS200 is one of the most reliable pressure guns on the market.

Spare Parts:

Ref. No.	Part No.	Description
1		AIR CAP SET
2-1 / 2-2		FLUID NOZZLE + NEEDLE SET
4		BAFFLE RING AND PACKING
6		NEEDLE PACKING SET
7		PATTERN ADJUSTMENT
8		AIR VALVE SEAT SET
8-1		O RING
9		AIR VALVE
10		AIR VALVE SPRING
11		FLUID ADJUSTMENT GUIDE SET
12		NEEDLE SPRING SET
12-1		FLUID NEEDLE SPRING
12-2	93001760	NEEDLE SPRING PACKING
13		FLUID ADJUSTMENT KNOB
14		AIR VALVE SHAFT
15		AIR ADJUSTMENT SET
16		TRIGGER SET
17		TRIGGER STUD
18		HEX. SOCKET BUTTON BOLT
19	93505951	UNIVERSAL SPANNER
20	93019720	BRUSH
