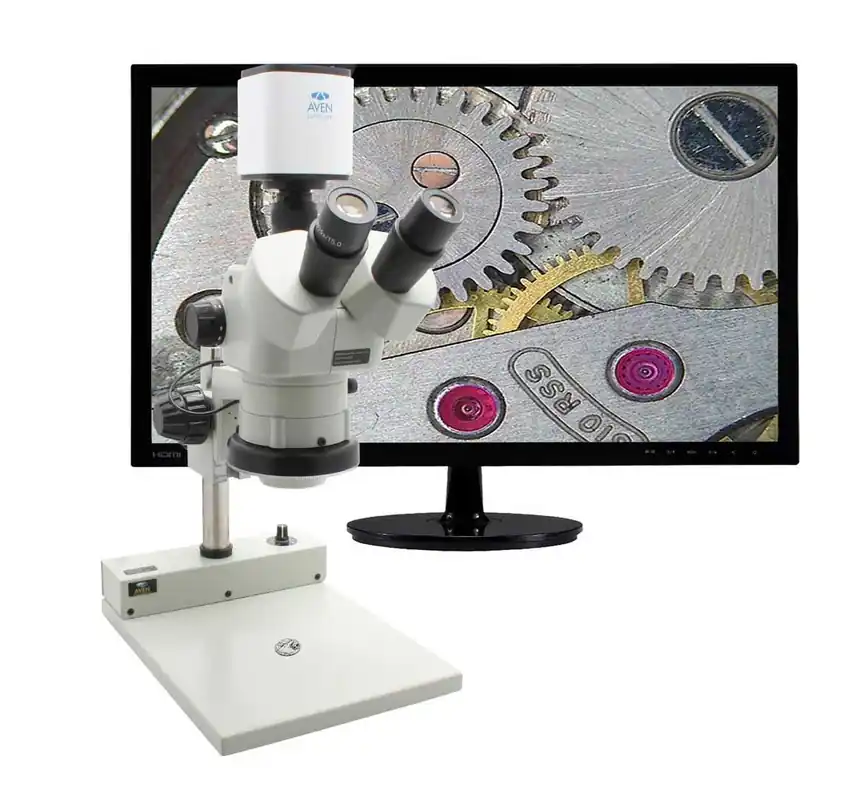

Aven Tools SPZV-50E-258-514-ESD ESD-Safe Stereo Zoom Trinocular Microscope with Post Stand, Monitor & Mighty Camera Pro

An unprecedented high-speed focusing experience

The heart of this system is our Mighty Cam Pro auto focus camera. It offers both continuous and single-shot auto focus modes helping you increase your productivity. The camera also supports mouse wheel control for fine tuning. Data transfer up to 60 frames per second enables users to get clear images with ease.

Specifications

System Contents:

SPZV-50E – Stereo Zoom Microscope

26100-258 – Mighty Cam Pro USB+HDMI Auto Focus Camera with SD Card

26800B-514 – PLED Stand

26700-406 – 22″ HD Monitor

SPZV-50E Stereo Zoom Microscope

Body Type: True Trinocular, 360° rotatable, 45° inclined eyepiece tube & C-mount camera port

Eyepieces: Two 10x(FN23)eyepieces supplied with microscope body. Optional 15x(FN15) and 20x(FN11.4) available to extend magnification range

Auxiliary Lens: 0.5x, 0.75x, 1.6x and 2x auxiliary lenses available to extended magnification range of microscope

Working Distance: 108mm without auxiliary lens 240mm with 0.5x auxiliary lens 132mm with 0.75x auxiliary lens 50mm with 1.6x auxiliary lens 41mm with 2x auxiliary lens

Zoom Ratio: 7.46:1

Diopter Adjustment: On both eye tubes: +5.6D-.72D

Interpupillary Distance: Adjustable from 52 to 75mm

Optical System: Greenough

Package Contents: 1ea SPZV True Trinocular Stereo Zoom Microscope Body with Photo tube 2 ea. 10x Eyepieces 2 ea. Rubber Eyeguards 1 ea. Dust Cover 1 ea. Instruction Manual

Weight: 5lb

Sensor: CMOS

Sensor Size: 1/2.8″

Dynamic Resolution: 2MP, 1920×1080

Static Resolution: 6MP, 3264×1836

Frame Rate: 60fps @HDMI, 30fps @USB2.0

Video Recording: 30fps @SD Card, 30fps @PC

Exposure Mode: Auto/Manual

Exposure Time: 0.002s-10s

Output Interface: USB2.0, SD Card, HDMI

Setting: Gamma,Gain, WDR, Noise Reduction

White Balance: Auto/Manual

Optical Port: Standard C-Mount

Built-in Software: Cloud 1.0 Ver

PC Software: Mosaic 2.1

Size: 90.7x78x70.8(mm)

Weight: 452(g)

Compatible OS: Windows 7/8/10 ,Mac

ESD-Safe Pole Stand with Focus Mount and LED Illumination

Base Size: 220 x 284 x 15mm

Vertical Post Length: 250mm

Focus Mount: Rack & pinion Focus Mount with Coarse & Fine Focus, 74mm diameter

Accepted Bodies: SSZ, SPZ, DSZ and NSW series

Package Contents: One Stand with Post and Focus Mount

Weight: 10lbs.

22″ LCD Monitor

Screen / Monitor Size: 22″ LCD Monitor

Display Resolution: 1920 x 1080 pixels

Input Voltage: 12V DC

Weight: 14.6 lb

Product Overview

More Information

SKU	I335804
Part No.	SPZV-50E-258-514-ESD
Brand	Aven Tools
ESD-Safe	Yes
Magnification	6.7x – 50x
Light	LED Ring Light
Mount	Post Stand
Includes	Camera, Monitor, Software
Warranty	5 Years
