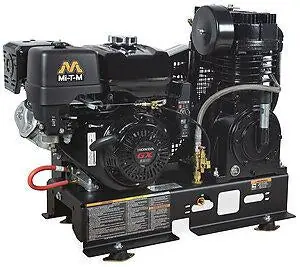

Base-Mount Two Stage Gasoline – ABS-13H-B

ABS-13H-B

This base-mount air compressor is designed to provide high capacity air flow required for most commercial, industrial and automotive industries. Mount one in a service truck and take it to the most demanding jobsite.

Compressor Pump: Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Engine: Electric start – battery and cables not included

Frame: 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard · Removable base plate offers flexible installation

Components: Regulator and two gauges for tank and outlet pressure · ASME safety valves · 16 1/2-inch fly wheel · Tank drain valve · Service truck mount kit

*Equipped with 150-PSI maximum rated regulator

Specifications

CFM @ 175 PSI*

29.0

Displacement/ Engine

389cc Honda GX390 OHV

Compressor

Two Stage, Cast Iron

Tank Size

Base-Mount

Engine Idle Control

Pneumatic

Weights & Dimensions

Net Weight

215.00 lbs.

Shipping Weight

279.00 lbs.

Length

36.50 in.

Width

19.00 in.

Height

28.00 in.

Options

IX-0055 Remote Start/Choke

Remote start/choke; 6-foot wire extension for key switch; you will also need to order electric start option, AX-0015

IX-0059 Remote Start/Choke

Remote start/choke; 6-foot wire extension for key switch, sealed cable; you will also need to order electric start option, AX-0015

Limited Warranties:

2 Year Pump Exchange

3 Year Honda Engine
