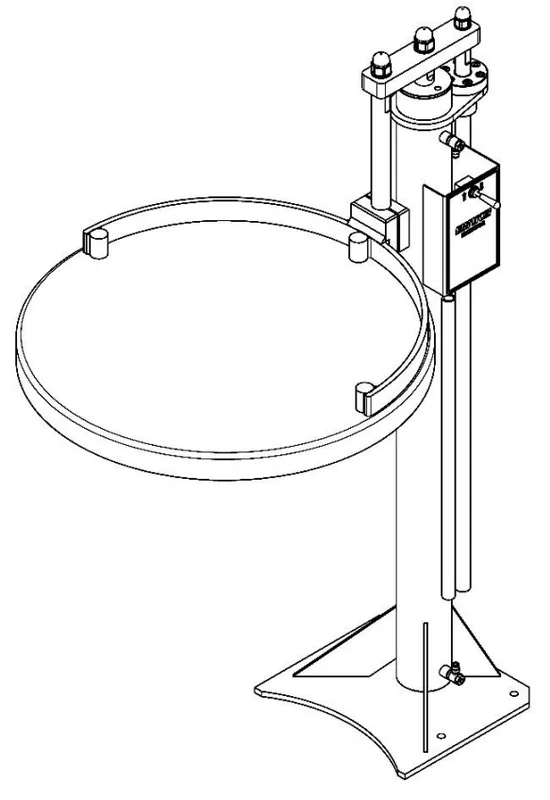

Binks 104155 Pneumatic 205L Elevator + Agitator Control

Pneumatic 205L Elevator + Agitator Control

Manufacturer: Binks

Part Number: 104155

Description: This equipment is designed for use with Solvent based and Waterborne materials. Suitable for use in Zone 1 and 2, Protection Level: II 2 G X

The pneumatic operated elevator is driven both upwards and downwards by an air cylinder. Typical applications are raising and lowering of a drum cover which has a paint pump and mixer or other accessories mounted to it. This allows the changing of drums with a minimum of inconvenience to the operator.

Clean and simple air operated

Speed control is possible in both directions

Elevator can be positioned anywhere along its stroke and will not drop

ATEX marked.

Specifications:

Stroke	955mm / 37.6”
Max drum size	Ø640mm
Max load capacity	61kg @ 375mm with lid
Maximum Working Air Pressure	7 Bar / 101 psi
Air Inlet	1/4″ BSP F
Air Quality	ISO 8573-1 Class 5/5/4
Unit Height – Fully Extended	2270 mm / 89″
Weight	64 Kg / 140 lbs

Literature:

You may be contacted with a freight quote for shipping. Fork lift may be required at time of delivery.
