Binks 106-1252 Fluid Repair Kit For Century LEL Gun Assemblies

Fluid Repair Kit For Century LEL Gun Assemblies

Manufacturer: Binks

Part Number: 106-1252

Description: Fluid Repair Kit For Century LEL Gun Assemblies

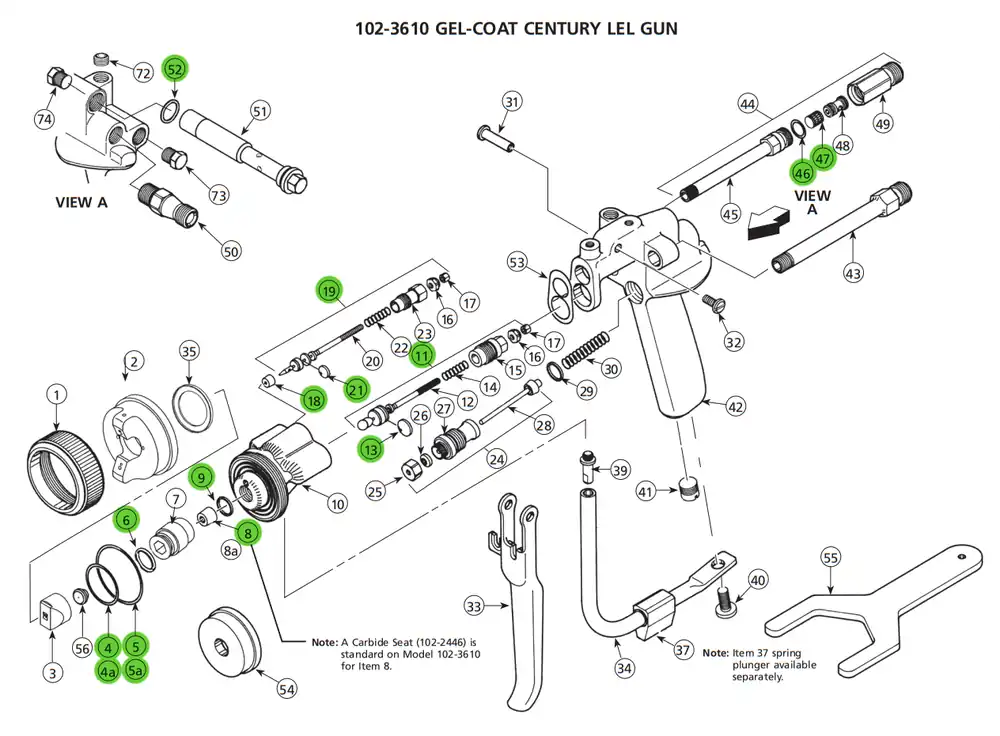

Includes the following components:

Ref. No.	Part No.	Description
4	20-4542	O-Ring (Silicone) Red
4a	20-6473	O-Ring (EPR) Purple
5	20-6296	O-Ring (Silicone) Red
5a	20-6474	O-Ring (EPR) Purple
6	20-5919	O-ring (EPR)
8	102-2446	Resin Seat Carbide
9	102-2505	Seal
11	102-2410	Resin Needle Assembly
13	102-2411	Resin Needle Packing
18	102-244	Catalyst Seat
19	102-2420	Catalyst Needle Assembly
21	102-2421	Catalyst Needle Packing
46	20-4858	O-Ring (Silicone)
47	102-2181	Filter Screen
52	102-2408	Gasket
–	102-2510	3/8″ Dowel Pin
–	102-2511	1/4″ Dowel Pin
–	102-2438	5/64″ Dowel Pin

Literature:

Binks charges a significant fee to drop ship orders of less than. Therefore, any parts orders under will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.

Contact: 503-545-3176
