Binks 193822 Piston Assembly, AX160L

Piston Assembly, AX160L

Manufacturer: Binks

Part #: 193822

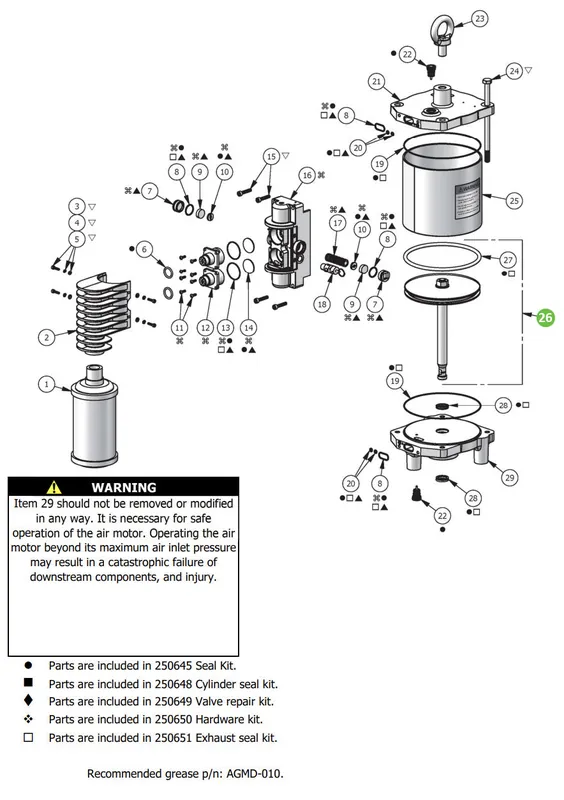

Description: Piston Assembly, AX160L. Reference 26.

Ref. No.	Part No.	Description	Qty
1		MUFFLER	1
2	193825	EXHAUST ADAPTER	1
3		SOCKET HEAD CAP SCREW	4
4		SPRING LOCK WASHER	4
5		PLAIN WASHER	4
6●		O-RING	2
7∆+		VALVE BLOCK END CAP	2
8∆●+◊		O-RING	4
9∆+		MAGNET	2
10∆●+		BUMPER	2
11∆		BUTTON HEAD CAP SCREW	8
12∆		QUICK EXHAUST VALVE CAGE	2
13∆●+◊		O-RING	2
14∆●+		DIAPHRAGM	2
15		SOCKET HEAD CAP SCREW	4
16∆	193817	VALVE BLOCK	1
17∆+		SPOOL AND SLEEVE ASSEMBLY	1
18		8 BAR [116 PSI] SAFETY VALVE	1
19●◊	162819	CYLINDER SEAL	2
20●+◊	0115-010051	O-RING	4
21	193826	UPPER END CAP	1
22●		POPPET ASSEMBLY	2
23	193689	EYE BOLT	1
24	162818	HEX HEAD CAP SCREW	4
25	194073	CYLINDER	1
26	193822	PISTON	1
27●◊	162817	PISTON SEAL	1
28●◊	193820	U-CUP SEAL	2
29	0115-010123	LOWER END CAP	1

NOTE:

∆ Items available separately or as a complete assembly:
● Parts are included in Air Motor Repair Kit.
+ Parts are included in Air Motor Valve Repair Kit.
◊ Parts are included in Air Motor Seal Kit.
