Binks 194074 AX200L Cylinder Assembly

AX200L Cylinder Assembly

Manufacturer: Binks

Part #: 194074

Description: AX200L Cylinder Assembly. Reference 19.

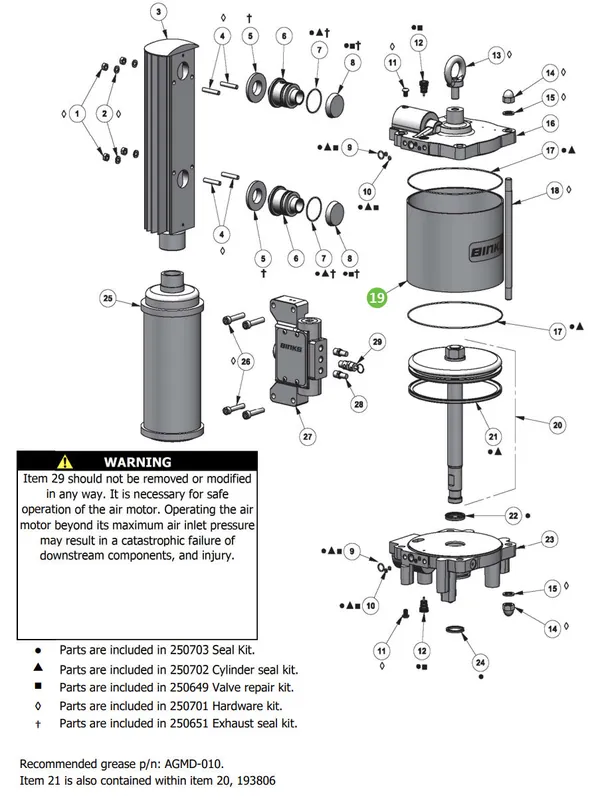

Ref. No.	Part No.	Description	Qty
1◊	192049	M8 HEX NUT (ST ST)	4
2◊		M8 LOCKWASHER S.S.	4
3		EXHAUST MANIFOLD ASSEMBLY	1
4◊	165994	M8 x 125 x 44mm STUD S.S	4
5<	193363	EXHAUST GASKET	2
6	193320	QEV CAP	2
7●+<	162765	2 x 46 mm O-RING	2
8●*<		QEV PISTON	2
9●+*	162766	2 x 13 mm O-RING	2
10●+*	0115-010051	2 x 4 mm O-RING	4
11◊	177000	M8 x 125 x 12mm BUTTON HEAD SCREW S.S.	2
12●*		POPPET ASSEMBLY	2
13◊	193689	M16 EYE BOLT	1
14◊	165981	M14 x 2mm DOME NUT S.S.	8
15◊	165982	M14 LOCKWASHER	8
16	193807	AX200L UPPER END CAP	1
17●+	162814	2 x 200mm O-RING	2
18◊	193150	AIR MOTOR TIE ROD	4
19		AX200L CYLINDER ASSEMBLY	1
20	193806	AX200L PISTON ASSEMBLY	1
21●+	162813	GLYDE RING ASSEMBLY	1
22●	193268	MOTOR ROD AIR U-CUP SEAL	1
23	193821	AX200L LOWER END CAP & BEARING	1
24●	0115-010355	MOTOR ROD U-CUP SEAL	1
25		1.5” SILENCER	1
26◊	165567	M10 x 50 mm SOCKET HEAD CAP SCREW S.S.	4
27	0115-010471	MAIN VALVE ASSEMBLY	1
28		VALVE MUFFLER	2
29		101 psi [7 bar] PRESSURE RELIEF VALVE 116 psi [8 bar] PRESSURE RELIEF VALVE	1

NOTE:

● Parts are included in Seal Kit.

+ Parts are included in Cylinder seal kit.

* Parts are included in Valve repair kit.

◊ Parts are included in Hardware kit.

< Parts are included in Exhaust seal kit.

AX200L Main Valve Assembly

Ref. No.	Part No.	Description	Qty
30*◊	165990	M8 x 55mm SOCKET HEAD CAP SCREW S.S	4
31		MANIFOLD	1
32●+*	0115-010460	GASKET	1
33		VALVE BLOCK END CAP	2
34●+*		2 x 30mm O-RING	2
35*		MAGNET	2
36*		BUMPER	2
37*		SPACER	2
38*		SPOOL AND SLEEVE ASSEMBLY	1
39	0115-010454	VALVE BLOCK	1

NOTE:

● Parts are included in Seal Kit.

+ Parts are included in Cylinder seal kit.

* Parts are included in Valve repair kit.

◊ Parts are included in Hardware kit.
