Binks 194093 Packing Spring

Packing Spring

Manufacturer: Binks

Part #: 194093

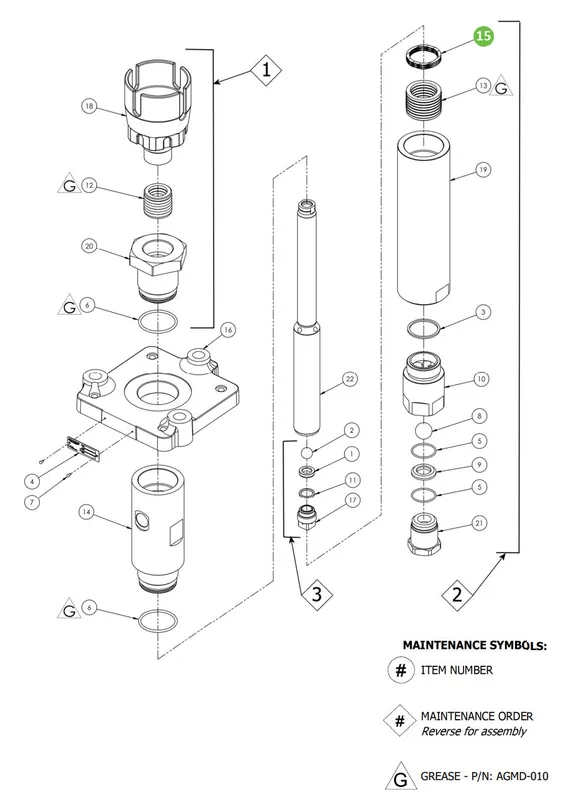

Description: Packing Spring. Reference 15.

Ref. No.	Part No.	Description	Qty
1	0114-014056	VALVE SEAT	1
2		BALL, Ø15	1
3+	0115-010140	LOWER BALL CAGE SEAL, FX12	1
4	0115-010642	NAMEPLATE	1
5+		O-RING, 29.9 X 1.78	2
6+	162825	O-RING, 46 X 3	2
7	164838	RIVET	2
8		BALL	1
9		SEAT	1
10	193776	LOWER BALL CAGE	1
11+	193794	PISTON SEAL	1
12+		UPPER PACKING SET (PTFE/UHMWPE)	1
13+		LOWER PACKING SET (PTFE/UHMWPE)	1
14		UPPER PUMP TUBE	1
15		PACKING SPRING	1
16	194094	PUMP ADAPTER PLATE	1
17		UPPER SEAT RETAINER, FX122	1
18		PACKING NUT	1
19		LOWER PUMP TUBE	1
20		PACKING RETAINER	1
21		FOOT VALVE, FX122	1
22		PUMP ROD, FX122	1

NOTE:

+ Parts are included in PTFE/UHMWPE – Seal Kit FX122

Literature:

Binks charges a significant fee to drop ship orders of less than. Therefore, any parts orders under will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.

Contact: 503-545-3176
