Binks 41-11031 Washer for “D” Fluid Section
Original price was: $34.55.$10.36Current price is: $10.36.
Washer
Manufacturer: Binks
Part Number: 41-11031
Description: Washer

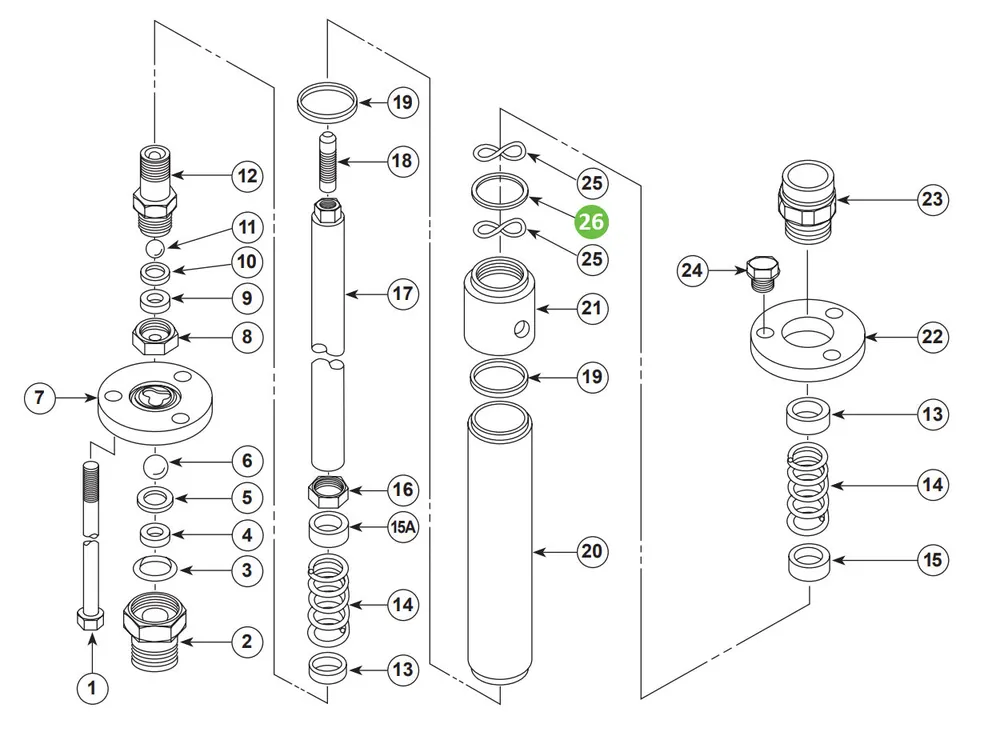

| Item No. | Part No. | Description | Qty |
| 1 | TIE BOLT (Lower) | 3 | |
| 2 | FOOT VALVE | 1 | |
| 3 | “O” RING (Lower) | 1 | |
| 4 | * | SEAT-SHAPE EDGE (Lower) | 1 |
| 5 | SEAT GASKET (Lower) | 1 | |
| 6 | 1″ BALL (Lower) | 1 | |
| 7 | FOOT VALVE BODY | 1 | |
| 8 | RETAINER NUT | 1 | |
| 9 | SEAT-SHAPE EDGE (Upper) | 1 | |
| 10 | GASKET (Upper) | 1 | |
| 11 | 3/4″ BALL (Upper) | 1 | |
| 12 | FLUID PISTON | 1 | |
| 13 | FEMALE ADAPTER | 2 | |
| 14 | “V” RING | 10 | |
| 15 | MALE ADAPTER (1/8″ Length) | 1 | |
| 15A | MALE ADAPTER (1/4″ Length) | 1 | |
| 16 | LOCKNUT | 1 | |
| 17 | PUMP SHAFT (Hard Chrome) | 1 | |
| 18 | STUD | 1 | |
| 19 | GASKET (Cylinder) | 2 | |
| 20 | CYLINDER (Hard Chrome) | 1 | |
| 21 | OUTLET | 1 | |
| 22 | RING | 1 | |
| 23 | UPPER PACKING NUT | 1 | |
| 24 | SPACER NUT | 3 | |
| 25 | WAVE SPRING | 2 | |
| 26 | WASHER | 1 |
Literature:
Binks charges a significant fee to drop ship orders of less than. Therefore, any parts orders under will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.
Contact: 503-545-3176
