Binks 41-15909 Piston Seal

Piston Seal

Manufacturer: Binks

Part Number: 41-15909

Description: Piston Seal

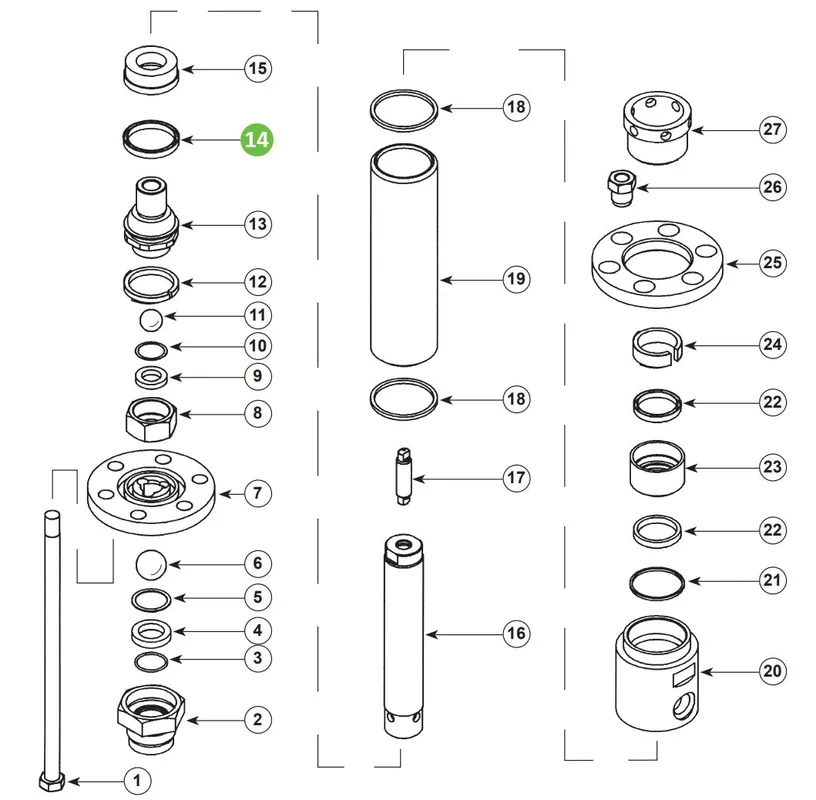

Item No.	Part No.	Description	Qty
1		TIE BOLT (Lower)	3
2		FOOT VALVE	1
3		“O” RING (Lower)	1
4	*	SEAT-SHAPE EDGE (Lower)	1
5		SEAT GASKET (Lower)	1
6		1″ BALL (Lower)	1
7		FOOT VALVE BODY	1
8		RETAINER NUT	1
9		SEAT-SHAPE EDGE (Upper)	1
10		GASKET (Upper)	1
11		3/4″ BALL (Upper)	1
12	149-1739*	LOWER GUIDE	1
13	41-15925	FLUID PISTON (U-Cup)	1
14	41-15909*	PISTON SEAL	1
15	41-15926	SEAL RETAINER	1
16		PUMP SHAFT (Hard Chrome)	1
17		STUD	1
18		GASKET (Cylinder)	2
19		CYLINDER (Hard Chrome)	1
20		OUTLET	1
21	149-1733*	UPPER SEAL	1
22	41-15908*	UPPER U-CUP SEAL	2
23	41-15927	UPPER SEAL HOUSING	1
24	149-1734*	UPPER GUIDE	1
25		RING	1
26		SPACER NUT	3
27	44-898	UPPER PACKING NUT	1

*Items in 106-1256 Soft Seal Kit
