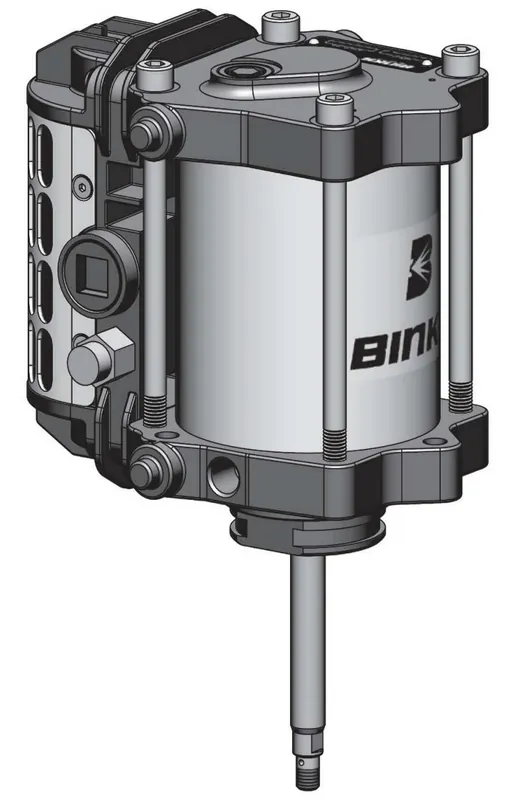

Binks AX85S Air Motor

AX85 Air Motor

Manufacturer: Binks

Part #: AX85S

Description: Air Motor

Specifications:

Maximum air inlet pressure:	8 bar [116 psi]
Maximum recommended continuous cycle rate [cycles/min]:	20
Air inlet connection:	Ø12mm Hose
Piston Diameter:	85 mm [3.3 in]
Stroke length:	75 mm [3.0 in]

Ref. No.	Part No.	Description	Qty
1		EXHAUST COVER SCREEN	1
2		EXHAUST COVER	1
3^		BUTTON HEAD CAP SCREW	4
4^		BUTTON HEAD CAP SCREW	8
5		QUICK EXHAUST VALVE CAGE	2
6*§□∆		O-RING	2
7*□		DIAPHRAGM	2
8^		COUNTER SUNK CAP SCREW	4
9		VALVE BLOCK	1
10^		PIPE PLUG	1
11*		VALVE BLOCK END CAP	2
13*		MAGNET	2
14*□		BUMPER	2
15*		SPOOL AND SLEEVE ASSEMBLY	1
16		SAFETY VALVE	1
17*§□∆		O-RING	4
18*§□∆	0115-010051	O-RING	4
19□		POPPET ASSEMBLY	2
20		UPPER END CAP MACHINING	1
21^	0115-010029	SOCKET HEAD CAP SCREW	4
22□§∆	0115-010050	CYLINDER SEAL, 85mm	2
23		CYLINDER, 85mm	1
24^		LOCKNUT	1
25□§∆	0115-010036	SEALING RING	1
26^		FLAT WASHER	2
27		PISTON, 85mm	1
28□§∆	0114-014466	PISTON SEAL, 85mm	1
29		MOTOR ROD	1
30		LOWER END CAP MACHINING	1
31□		MOTOR ROD CARTRIDGE ASSEMBLY	1
32+		90° SWIVEL ELBOW, Ø12mm TUBE – G3/8″ MALE	1

NOTE:

* Parts are included in .

§ Items available separately or as a complete assembly: .

□ Parts are included in .

∆ Parts are included in .

^ Parts are included in AX85 Hardware kit: .

+ not shown

Literature:

Binks charges a significant fee to drop ship orders of less than. Therefore, any parts orders under will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.
