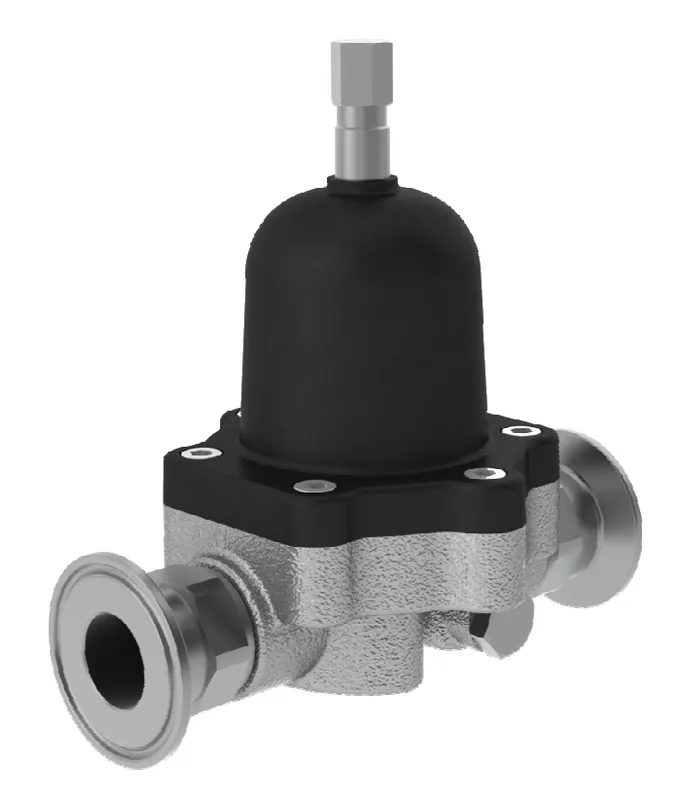

Binks Back Pressure Regulator (Low Shear 1½”) Series 107754-X-X Manual Control

Back Pressure Regulator (Low Shear 1½”) Series 107754-X-X Manual Control

Manufacturer: Binks

Part Number: 107754-X-X

Description: The Binks Low Shear range of back pressure regulators use either operator set spring pressure (107754-X-X) or air pressure () to control system fluid pressure upstream of the device by automatically adjusting the level of restriction applied to the flow of fluid passing between its inlet and outlet ports. For system pressure regulation at flow rates below the minimum shown, consider the smaller (¾”) product range based on 107757 (manual spring control) and 107758 (air control).

Specifications:

107754-X-X Manual Control

Ideal Working Range	3-15 bar 10-100 l/min
Max. Static Pressure	25 bar
Wetted Material	303 grade stainless steel, PTFE, TFM
Weight kg (lb) #	6.5 (14.3)
