Binks DVX Gravity Feed Manual Spray Gun

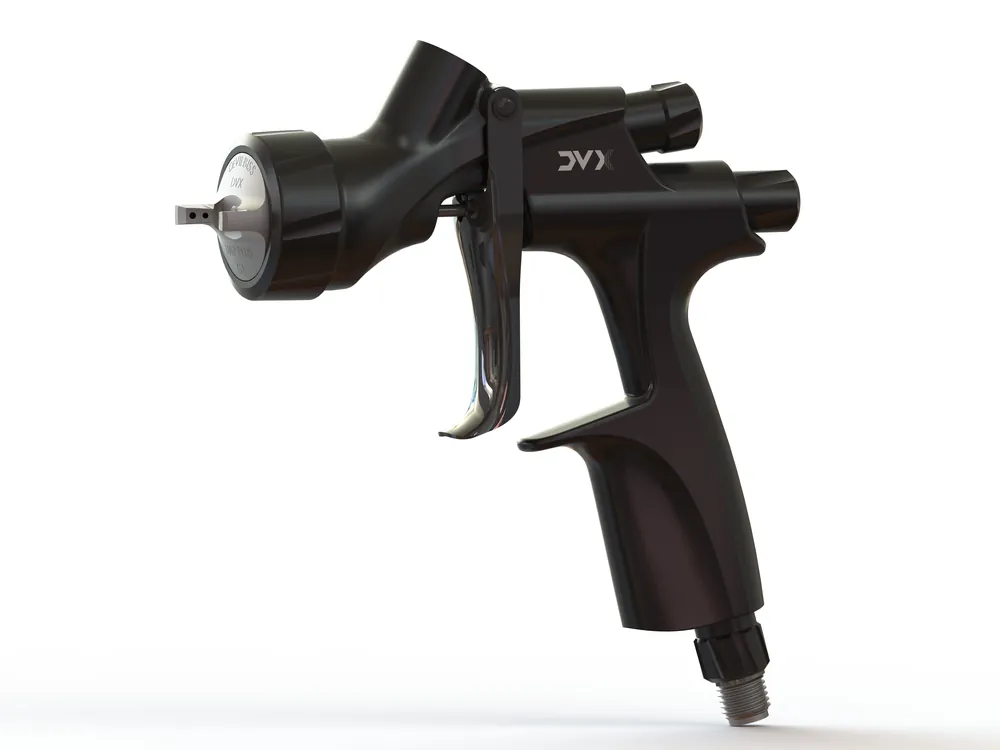

DVX Gravity Feed Manual Spray Gun

Next level design to maximize next level performance. The new standard in spray guns is here

Manufacturer: Binks

Part Number: DVXG-XX-XX

Description: The new DVX series revolutionizes air spray guns for the industrial market. The innovative redesign of the fluid body and air caps allows us to mitigate turbulence that occurs between the paint and air when the trigger is pulled. More efficient air flow paths reduce separation and stagnation zones. The result is higher flow rates for faster application, higher transfer efficiency to reduce material use, the most consistent pattern on the market, and the best spray finish quality ever.

Best Air Spray Finish Quality

Turbulence Control maximizes flow rate efficiency and precision

Reduces orange peel and mottling

The most consistent pattern on the market

Faster Application

Large, consistent pattern for fewer passes

The air cap orientation lock allows for more spray time

Easy to install, clean, maintain, and repair

Fewer parts and part numbers

Higher Transfer Effciency

Reduces material use compared to other non-electrostatic spray applications

Works at both low and high inlet air pressures

Sprays at 2 bar, reducing air consumption

Features HVLP PLUS aircaps, capable of handling a range of materials across three pressure air caps and two gravity air caps

DVX Manual Air Spray Guns are designed to provide improved balance and ergonomics, with high-flow rate capabilities to keep up with any painter.

Specifications:

Quick release air cap with orientation lock for fast and easy aircap selection, fitting and removal with orientation lock. Less time setting up & more consistent spraying.

The air inlet and the air-adjusting valve are reconfigured into a single “co-axial” component and placed in an ergonomic location for increased air control precision sensitivity.

The innovative trigger design removes sideways and rotary play from the trigger action, while maintaining a comfortable fit and feel.

Smoother surfaces, reduced contours and fewer features on the gun body makes cleaning quicker and easier.

Improved wetted fluid sections have been redesigned to help reduce paint build up and improve material flushing.

Parts and Accessories:

Ref. No.	Part No.	Description
1	SEE TABLE 1	AIR CAP & RETAINING RING
2		RETAINING RING SUB ASSEMBLY
3	–	AIR CAP
4	SEE TABLE 2	FLUID NOZZLE
5 +		SPRAY HEAD KIT
6		INDEXING BAFFLE PLATE
7 #	704403	SCREW (KIT OF 3)
8	–	SPRAYHEAD
9	704401	GASKET (KIT OF 2)
10 +		FAN CONTROL VALVE
11	–	VALVE BODY
12 #	–	O RING
13		SPREADER KNOB KIT
14	–	SPREADER VALVE ADJUSTING KNOB
15 +		AIR VALVE ASSEMBLY
16	–	FRONT CAGE ASSEMBLY
17	–	AIR VALVE STEM
18 #	–	AIR VALVE SPRING
19	–	REAR SEAL ASSEMBLY
20	SEE TABLE 2	FLUID NEEDLE
21 #	704405	NEEDLE SPRING
22		FLUID ADJUSTING KNOB
23	704406	TRIGGER, STUD, SPRING & SCREW KIT
24 #	–	TRIGGER SCREW
25 #	–	SPRING
26 #	–	TRIGGER STUD
27	–	TRIGGER
28	704417	INLINE FLOW VALVE
29 +	702731	PACKING, SPRING & PACKING NUT KIT
30	704429	TOOL KIT
31	–	TIP WRENCH
32	–	TORX DRIVER
33	–	VALVE TOOL
34		GRAVITY CUP
#		MINOR SERVICE KIT INCLUDES ITEMS MARKED #
+		MAJOR SERVICE KIT INCLUDES ITEMS MARKED +

Table 1 – DVXG AIR CAP PERFORMANCE GUIDE

Part No.	Air Cap & Type	Air Inlet Pressure	Air Cons.	Fan Pattern
	G1 HVLP PLUS	29 psi	11.1 scfm	11.8 in
	G2 HVLP PLUS	29 psi	12.0 scfm	13.0 in

Table 2 – DVXG AIR CAP- FLUID NOZZLE- NEEDLE COMBINATIONS

Air Cap	Fluid Nozzle			Needle
	Part No.	Nozzle Size	Marking	Part No.	Marking
G1		1.1	DVXG-1.1		DVXG-335
G1		1.2	DVXG-1.2	DVXG-335-K	DVXG-335
G1		1.3	DVXG-1.3	DVXG-335-K	DVXG-335
G1		1.4	DVXG-1.4	DVXG-335-K	DVXG-335
G1		1.5	DVXG-1.5	DVXG-335-K	DVXG-335
G2		1.6	DVXG-1.6		DVXG-336
G2		1.8	DVXG-1.8	DVXG-336-K	DVXG-336
G2		2.0	DVXG-2.0	DVXG-336-K	DVXG-336
