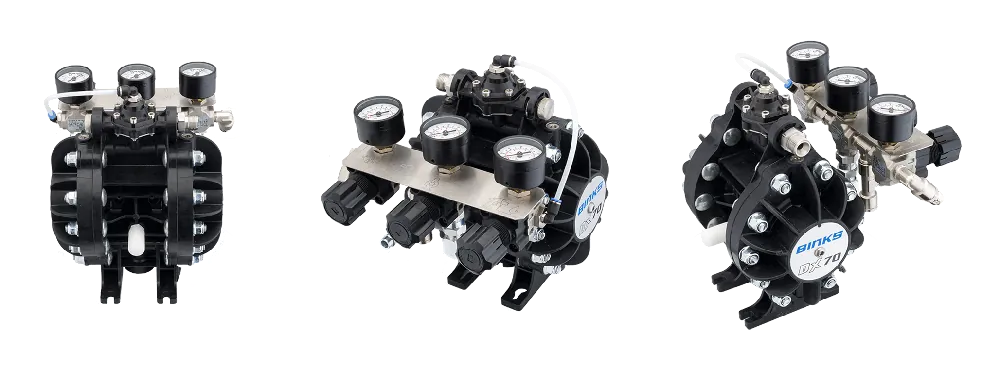

Binks DX70R Pump Configurable Inlet and Outlet

DX70R Pump Configurable Inlet and Outlet

Manufacturer: Binks

Part Numbers:

DX70R-MM

DX70R-FM

DX70R-FF

DX70R-FF-3

Description:

The DX70 is a high specification, air-powered 1:1 ratio double diaphragm pump specifically developed for the direct supply of paints and materials to spray guns. The pump features a unique diaphragm no-crease shape for a long and durable working life DX70 also includes a “built-in” fluid regulator which ensures a constant and virtually pulse-free fluid delivery, for direct feed to spray guns without the expense and complications of an additional fluid regulator or surge chamber.

The Binks DX70 range features bare pumps are assembled pump packages, complete and “ready to spray” matched with our World-renowned DeVilbiss spray guns. The pump is perfect for use with ALL types of spray gun technologies including, Conventional, Compliant Trans-Tech©, HVLP, LVLP, and low-pressure Electrostatic spray guns.

Acetal pump body with stainless steel balls and soft seats for universal paint compatibility including ceramic glaze coatings

The unique diaphragm design and “built-in” fluid regulator provide consistent pressure and readily adjustable paint flow

The Non-stall air valve provides smooth, quiet, and surges free paint delivery of up to 1000 cc/ minute

Clearly labeled Air regulators provide independent control of pump and spray gun fluid and air pressures

Quick-release air, a fluid inlet, and outlet connections for faster maintenance

Re-circulation/dump valve accessory for faster color changes reducing downtime, saving time and money

Pump outfit mountings include Cart, Wall, 25L Pail & Tripod outfits with or without spray guns & hoses

Outfits with Fluid filters are available for finer paint finishes

APPLICATIONS

Woodworking and Joinery

Aerospace Industry

Agricultural and Off-Road

Potteries and Ceramic Glaze*

Trade Coaters and Jobbers

Marine Industry

Truck and Bus

Rail and Transport

Plus Many Others

*The standard pump without fluid regulator can also be used on ceramic glaze applications.

TYPICAL MATERIAL/COATING TYPES

Solvent and Water Based Paints and Materials

Lacquers, Stains, and Varnishes

Adhesives and Fillers

Ceramics and Glaze*

Sealers and Undercoats

Literature:

Spare Parts
