Manufacturer: Binks

Part Number: DXK-15

Description: Fluid Regulator Kit for DX70. Reference number 15.

DX70 Spray Packages

The DX70 is a high specification, air-powered 1:1 ratio double diaphragm pump specifically developed for the direct supply of paints and materials to spray guns. The pump features a unique diaphragm no-crease shape for a long and durable working life DX70 also includes a “built-in” fluid regulator which ensures a constant and virtually pulse-free fluid delivery, for direct feed to spray guns without the expense and complications of an additional fluid regulator or surge chamber.

The Binks DX70 range features bare pumps are assembled pump packages, complete and “ready to spray” matched with our World-renowned DeVilbiss spray guns. The pump is perfect for use with ALL types of spray gun technologies including, Conventional, Compliant Trans-Tech©, HVLP, LVLP, and low-pressure Electrostatic spray guns.

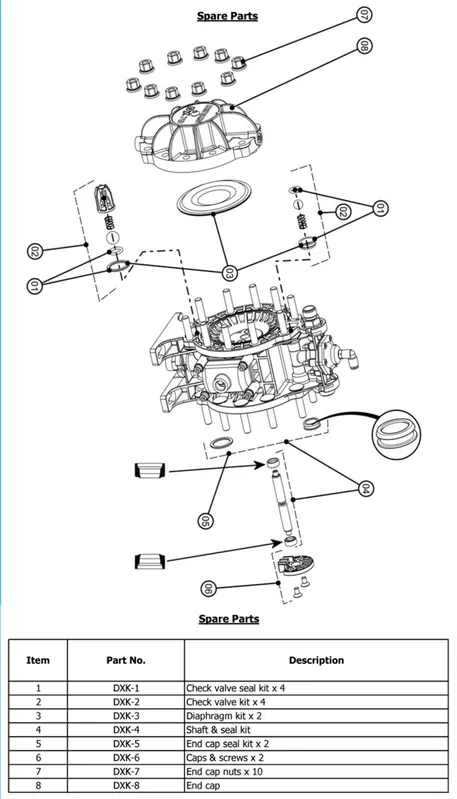

Item No.	Part No.	Description
9		Inlet, outlet & plug connector seal kit
10		Male inlet connector kit
11		Female inlet connector kit
12		Male outlet connector kit
13		Female outlet connector kit
14		Air valve kit
15		Fluid regulator kit
16		Regulator cap & screws
17		Inlet (x2) & outlet (x2) clips
18		Cover, seal & screws
19		Female inlet / outlet thread seal x 4
20		O-ring x 5
21		O-ring x 5
22		O-ring x 5
23		O-ring x 5
24		O-ring x 5
25		Gasket x 4
26		Blanking plate & screws ‡
27		Blanking gasket x 4 ‡
28		Insert ‡
29	DXK-29	Grounding cable 4m

‡ = parts for non-fluid regulator model

Binks charges a significant fee to drop ship orders of less than. Therefore, any parts orders under will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.

Contact: 503-545-3176
