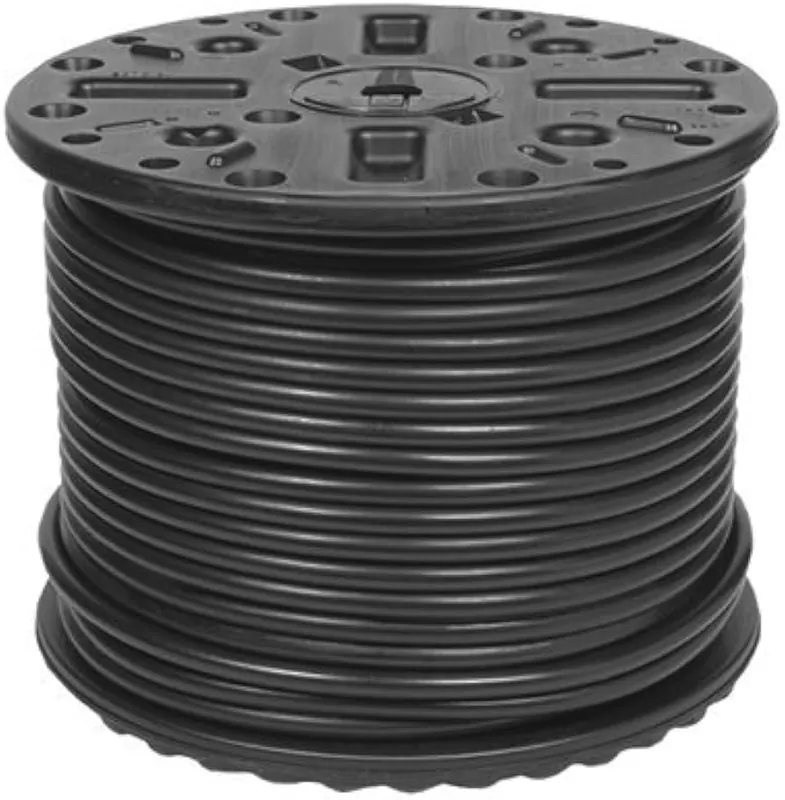

Binks Fluidall™ Fluid Hose (Nylon Lined, Maximum Versatility)

Fluidall™ Fluid Hose (Nylon Lined, Maximum Versatility)
Minimum Order Quantity 500ft.

Manufacturer: Binks

Part Number: 71-28X

Description: Premium, versatile fluid hose, for finishing operations plus a wide range of fluid applications. Fluidall™ is ideal for resins and solvents contained in epoxies, urethanes, alkyds, primers, acrylics, polyesters, silicones, bitumastic coatings, oil and water based paints, lacquers, alcohol and latex coatings. Temperature range from 0° F to +190°F (max).

Tube: Nylon.

Reinforcement: High tensile synthetic braid. Specially designed for maximum flexibility (under pressure) and maximum coupling retention.

Cover: Black, synthetic, smooth rubber. Class B oil resistant.

Specifications:

Connections for Fluidall™ Hoses:

Bulk Hose

Connections

I.D.	O.D.	Part No.	Thread	Part No.	Compression Sleeve	Type
1/4″	1/2″	71-280	1/4”nps(f)			A
			3/8”nps(f)			A
			3/8”nps(f)	*		A
3/8″	11/16″	71-282	1/4”nps(f)			A
			3/8”nps(f)			A
			3/8”nps(f)	*		A
1/2″	7/8″	71-283	3/8”nps(f)			A
			1/2”nps(f)			A
			1/2”nps(f)	†*		C
3/4″	1 3/16″	71-284	3/4”nps(f)	†		C
			3/4”nps(f)	†		C
			3/4”nps(f)	†*		C
1″	1 1/2″	71-285	1”nps(f)	†		C
			1”nps(f)	*		C
			1”nps(f)			–

†Punch-Lok Connection *Stainless Steel tailpiece

HOSE ONLY – ENDS NOT INCLUDED

Hose size is I.D., depending on the manufacturer the O.D. may differ
Based on supply, hose color may vary.
Order will be satisfied with priority to the psi rating and I.D. size.
Color is not guaranteed.

Hoses are NOT Returnable
