Binks Maple 15/6 Pump 6 1 Ratio

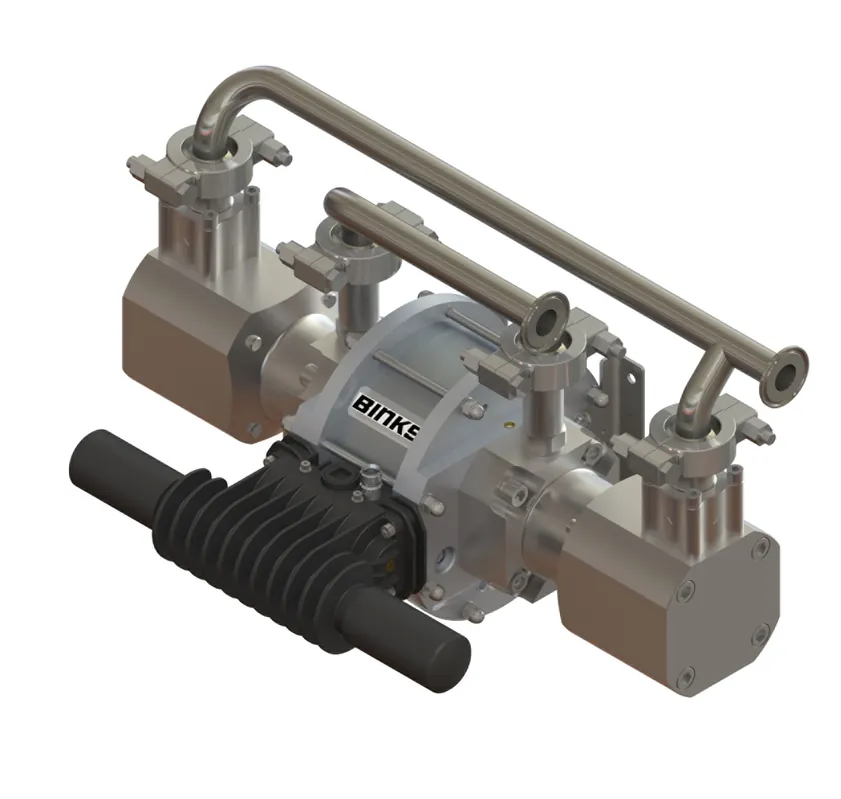

Binks Maple 15/6 Horizontal Piston Pump

Manufacturer: Binks

Part #: 104205

Description: 6:1 Ratio, 6 Gal Fluid Output @ 60 Cycles/Min. Advanced, air operated, horizontal piston pump for paint circulation and supply applications. See manual below for further specifications.

Less maintenance and less production downtime with the Binks Maple Pump Series.

The Maple pump series are horizontal piston pumps suited to low and medium pressure applications. The pumps combine an energy efficient air motor and a fluid section that has no exterior leaking seals. High quality materials and surface treatments ensure low maintenance costs and long operational life.

Designed to work with moisture sensitive, shear sensitive and abrasive materials, the horizontal piston arrangement provides minimal pressure fluctuations.

Features:

• Advanced air motor design: Patented technology means lubrication free, low ice, stall free performance

• Reliable operation: No exterior leaking seals, plus a backup seal with bellows visual leak detection ensures continued pump operation during the shift until scheduled maintenance

• Smooth performance: Equal pressure for each piston stroke and a quick changeover keeps pressure fluctuations to a minimum

• Simple to maintain: Easy access to piston seals and check valves

Recommended Materials	Typical Applications
Solvent and Waterborne UV Cure Catalyst Moisture Sensitive High Solids Abrasive CARC	Paint Circulation with Restricted Pipework Spray Gun Applications Flatline Manufacturing

Literature:

Accessories:

Spare Parts (Refer to Manual):

Parts List – Pump Assembly:

Ref. No.	Part No.	Description
1	164838	Ø2 x 4.75 RIVET
2		M12 SPRING WASHER
3		M8 SPRING WASHER
4	177107	M12 X 50 SOCKET HEAD CAP SCREW
5	177109	M8 X 65 SOCKET HEAD CAP SCREW
6	177111	M12 X 110 SOCKET HEAD CAP SCREW
7		1″ SANITARY GASKET
8		1″ BALL
9		Ø12.42 x 1.78 O-RING
10		1/4″ HEXAGON PLUG
11		Ø37.82 x 1.78 O-RING
12		1″ SILENCER
13	192816	LABEL
14		SEAT
15		OUTLET MANIFOLD
16	193360	INLET MANIFOLD
17	193775	LABEL
18	194179	OUTLET FITTING
19		Ø70 PISTON ASSEMBLY
20	194845	1 & 1 1/2 SANITARY CLAMP
21	194971	AIR MOTOR ASSEMBLY
22	194974	OUTLET CYLINDER
23		PISTON SEAL
24	194979	INLET CYLINDER
25		BALL CAGE

Parts List – Air Motor Assembly:

Ref. No.	Part No.	Description
1		POPPET ASSEMBLY
2		AIR VALVE ASSEMBLY
3		Ø117.5 x 2.62 O-RING
4		Ø20.35 x 1.78 O-RING
5		Ø4.47 x 1.78 O-RING
6		Ø19.5 x 3 O-RING
7		SHAFT SEAL
8		SHAFT BEARING
9		M6 x 30 SOCKET HEAD CAP SCREW
10		M8 SPRING WASHER
11		M4 x 16 SOCKET HEAD CAP SCREW
12		M8 DOME NUT
13		M4 PLAIN WASHER
14		M4 SPRING WASHER
15	177038	M10 x 12 BUTTON HEAD CAP SCREW
16		RETAINING NUT
17		KNIFED BELLOWS
18		AIR CYLINDER
19		CYLINDER STUD
20		CYLINDER STUD – LONG
21		BELLOWS SPACER
22		PUMP BRACKET
23		VENT PLUG
24		EXHAUST ADAPTER
25		BELLOWS LEAK DETECTION HOSE
26		PUSH IN ELBOW
27		AIR MOTOR PISTON
28	194972	END PLATE MACHINING

Parts List – Air Motor Piston Assembly:

Ref. No.	Part No.	Description
1		AIR MOTOR PISTON SEAL
2		M12 x 40 GRUB SCREW
3		PISTON SHAFT
4		PISTON

Parts List – Air Valve Assembly

Ref. No.	Part No.	Description
1		SPOOL AND SLEEVE ASSEMBLY
		SPOOL AND SLEEVE O-RING
2		BUMPER
3		MAGNET
4		VALVE BLOCK END CAP
5		DIAPHRAGM
6		Ø36 x 1.5 O-RING
7		Ø20 x 2 O-RING
8		M4 X 12 BUTTON HEAD CAP SCREW
9		VALVE BLOCK
10	0115-010103	1/4 BSPT PIPE PLUG
11		1/8 BSPT PIPE PLUG
12		3/8″ UNIVERSAL FITTING
13		QUICK EXHAUST VALVE CAGE

Parts List – Fluid Piston Assembly:

Ref. No.	Part No.	Description
1		PISTON BALL CHECK SPRING
2		Ø52.07 x 2.62 O-RING
3		Ø41.0 x 1.78 O-RING
4		Ø56.82 x 2.62 O-RING
5		1.375″ BALL
6		SEAT
7		INLET SPRING KEEP
8		Ø70 FLUID PISTON
9		BALL CAGE
