Binks Maple 3/36 Pump 36 1 Ratio

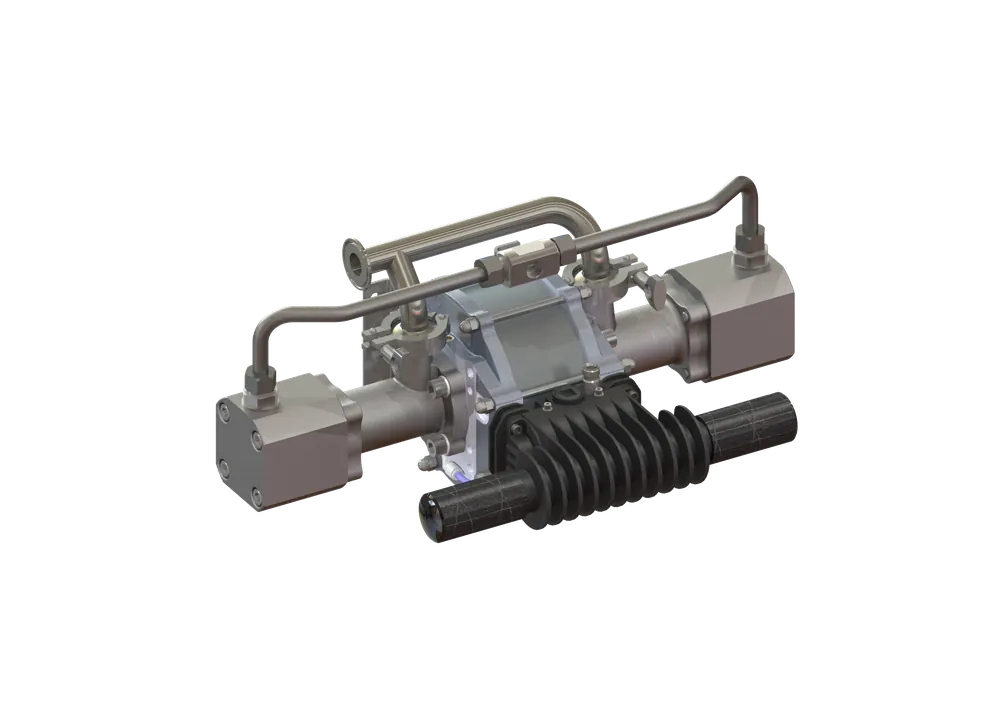

Binks Maple 3/36 Horizontal Piston Pump

Manufacturer: Binks

Part #: 104267

Description: 36:1 Ratio, 1.125 Gal Fluid Output @ 60 Cycles/Min. Advanced, air operated, horizontal piston pump for paint circulation and supply applications.

Less maintenance and less production downtime with the Binks Maple Pump Series.

The Maple pump series are horizontal piston pumps suited to low and medium pressure applications. The pumps combine an energy efficient air motor and a fluid section that has no exterior leaking seals. High quality materials and surface treatments ensure low maintenance costs and long operational life.

Designed to work with moisture sensitive, shear sensitive and abrasive materials, the horizontal piston arrangement provides minimal pressure fluctuations.

Features:

Advanced air motor design: Patented technology means lubrication free, low ice, stall free performance

Reliable operation: No exterior leaking seals, plus a backup seal with bellows visual leak detection ensures continued pump operation during the shift until scheduled maintenance

Smooth performance: Equal pressure for each piston stroke and a quick changeover keeps pressure fluctuations to a minimum

Simple to maintain: Easy access to piston seals and check valves

Recommended Materials	Typical Applications
Solvent and Waterborne UV Cure Catalyst Moisture Sensitive High Solids Abrasive CARC	Paint Recirculation Spray Gun Applications Flatline Manufacturing

Literature:

Accessories:

Spare Parts (Refer to Manual):

Parts List – Pump Assembly:

Ref. No.	Part No.	Description
1	0114-014237	BALL
2	162886	O-RING
3	162887	O-RING
4	164838	RIVET
5		SPRING WASHER
6		SPRING WASHER
7	177009	SOCKET HEAD CAP SCREW
8	177141	SOCKET HEAD CAP SCREW
9		SANITARY CLAMP
10		SANITARY GASKET
11		O-RING
12		HEXAGON PLUG
13		SILENCER
14	193360	INLET MANIFOLD
15	193361	INLET CYLINDER
16		AIR MOTOR ASSEMBLY
17	195809	OUTLET CYLINDER
18	195810	OUTLET FITTING
19	195815	SEAT
20	195825	PISTON ASSEMBLY
21	195826	OUTLET MANIFOLD
22	195827	FLUID SEAL ASSEMBLY
23	195848	SERIAL PLATE

Parts List – Air Motor Assembly:

Ref. No.	Part No.	Description
1		POPPET ASSEMBLY
2		AIR VALVE ASSEMBLY
3		Ø117.5 x 2.62 O-RING
4		Ø20.35 x 1.78 O-RING
5		Ø4.47 x 1.78 O-RING
6		Ø19.5 x 3.00 O-RING
7		SHAFT SEAL
8		SHAFT BEARING
9		M6 x 30 SOCKET HEAD CAP SCREW
10		M8 SPRING WASHER
11		M4 x 16 SOCKET HEAD CAP SCREW
12		M8 DOME NUT
13		M4 PLAIN WASHER
14		M4 SPRING WASHER
15	177038	M10 x 12 BUTTON HEAD CAP SCREW
16		RETAINING NUT
17		KNIFED BELLOWS
18		AIR CYLINDER
19		CYLINDER STUD
20		CYLINDER STUD – LONG
21		BELLOWS SPACER
22		PUMP BRACKET
23		VENT PLUG
24		EXHAUST ADAPTER
25		BELLOWS LEAK DETECTION HOSE
26		PUSH IN ELBOW
27		AIR MOTOR PISTON ASSY
28		END PLATE MACHINING

Parts List – Air Motor Piston Assembly: ()

Ref. No.	Part No.	Description
1		AIR MOTOR PISTON SEAL
2		M12 x 40 GRUB SCREW
3		PISTON SHAFT
4		PISTON

Parts List – Air Valve Assembly: ()

Ref. No.	Part No.	Description
1	0114-014657	1/4 BSPP PIPE PLUG
		SPOOL AND SLEEVE ASSEMBLY
2		SPOOL AND SLEEVE O-RING
3		BUMPER
4		MAGNET
5		VALVE BLOCK END CAP
6		DIAPHRAGM
7		1.5 x 36 O-RING
8		2 x 20 O-RING
9		M4 x 12 BUTTON HEAD CAP SCREW
10		VALVE BLOCK
11		1/8 BSPT PIPE PLUG
12		UNIVERSAL FITTING
13		QUICK EXHAUST VALVE CAGE

Parts List – Fluid Piston Assembly: (195825)

Ref. No.	Part No.	Description
1		BALL
2	162886	O-RING
3	162889	O-RING
4	193795	SPRING
5	195815	SEAT
6	195804	FLUID PISTON
7	195813	PISTON KEEP

Binks charges a significant fee to drop ship orders of less than. Therefore, any parts orders under will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.

Contact: 503-545-3176
