Binks Maple 7/7 Pump 7 1 Ratio

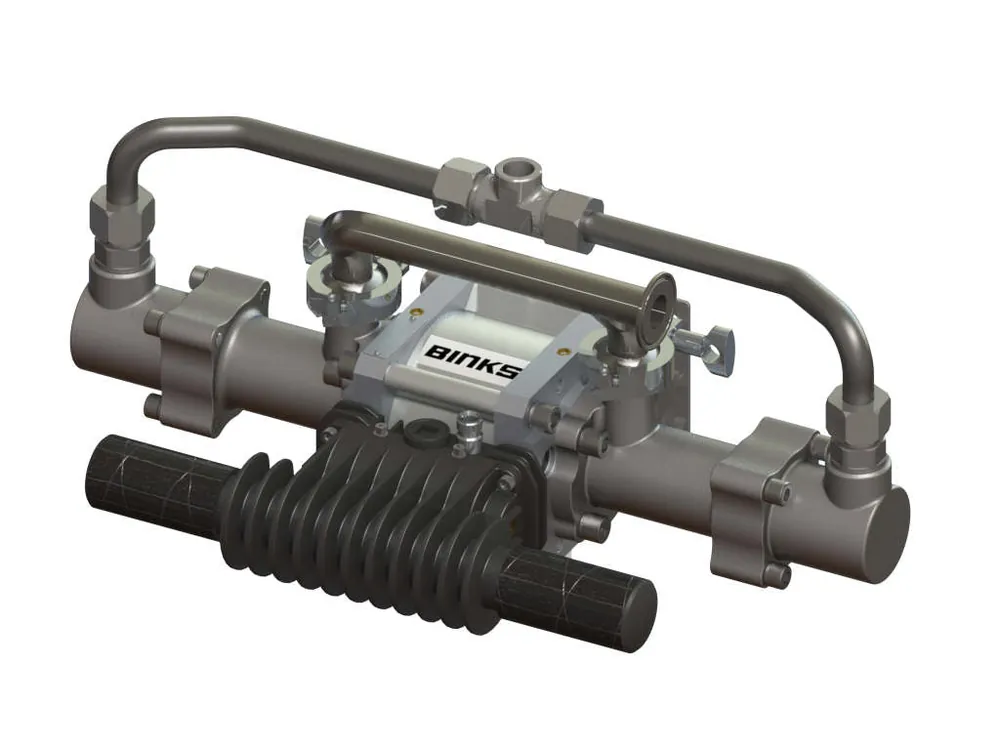

Binks Maple 7/7 Horizontal Piston Pump

Manufacturer: Binks

Part #: 104040

Description: 7:1 Ratio, 2.6 Gal Fluid Output @ 60 Cycles/Min. Advanced, air operated, horizontal piston pump for paint circulation and supply applications.

Less maintenance and less production downtime with the Binks Maple Pump Series.

The Maple pump series are horizontal piston pumps suited to low and medium pressure applications. The pumps combine an energy efficient air motor and a fluid section that has no exterior leaking seals. High quality materials and surface treatments ensure low maintenance costs and long operational life.

Designed to work with moisture sensitive, shear sensitive and abrasive materials, the horizontal piston arrangement provides minimal pressure fluctuations.

Features:

• Advanced air motor design: Patented technology means lubrication free, low ice, stall free performance

• Reliable operation: No exterior leaking seals, plus a backup seal with bellows visual leak detection ensures continued pump operation during the shift until scheduled maintenance

• Smooth performance: Equal pressure for each piston stroke and a quick changeover keeps pressure fluctuations to a minimum

• Simple to maintain: Easy access to piston seals and check valves

Recommended Materials	Typical Applications
Solvent and Waterborne UV Cure Catalyst Moisture Sensitive High Solids Abrasive CARC	Paint Recirculation Spray Gun Applications with Hose / Pipe Restrictions Flatline Manufacturing

Literature:

Accessories:

Spare Parts (Refer to Manual)

Parts List – Pump Assembly:

Ref. No.	Part No.	Description
1		POPPET ASSEMBLY
2		AIR VALVE ASSEMBLY
3		Ø20.35 x 1.78 VITON O-RING
4		Ø4.47 x 1.78 O’RING
5		Ø19.5 x 3.00 O-RING
6		Ø125 x 2 O-RING
7		SHAFT SEAL
8	162746	Ø25 X 1.6 O’RING PTFE
9	162833	SHAFT BEARING
10		M6 x 30 CAP HD SCREW (ST ST)
11	164838	No 2 x 4.75 RIVET
12		M12 SPRING WASHER STST
13		M10 SPRING WASHER (STST)
14		M4 x 16 CAP HD SCREW (STST)
15	165948	M10 x 40 CAP HD SCREW (ST ST)
16		M12 x 40 CAP HD SCREW (ST ST)
17		M4 PLAIN WASHER (STST)
18		M4 SPRING WASHER (STST)
19		3/4 BALL 440C
20	177009	M12 X 35 CAPHEAD SCREW
21	177038	M10 x 12 BUTTON HD CAP SCREW (STST)
22		1 & 1 1/2 SANITARY CLAMP
23		1 SANITARY GASKET PTFE
24		RETAINING NUT
25		KNIFED BELLOWS
26		BELLOWS SPACER
27		PUMP BRACKET
28		1″ MUFFLER
29		VENT PLUG
30		EXHAUST ADAPTER
31		BELLOWS LEAK HOSE
32		1/8R – 6MM PUSH IN ELBOW
33		AIR CYLINDER
34		OUTLET SEAT
35		FLUID PISTON SEAL
36	193225	OUTLET CYLINDER
37		PISTON ASSEMBLY
38	193360	INLET MANIFOLD
39	193367	OUTLET CHECK
40		OUTLET MANIFOLD ASSEMBLY
41	193775	NAMEPLATE
42	193861	ENDCAP
43	193862	INLET CYLINDER

Parts List – Air Motor Piston Assembly:

Ref. No.	Part No.	Description
50		PISTON SEAL
51		M12 x 45 GRUBSCREW (ST ST)
52		PISTON SHAFT
53		PISTON

Parts List – Piston Assembly:

Ref. No.	Part No.	Description
60	160526	CONICAL SPRING
61		Ø33 X 2 O-RING PTFE
62		Ø23.52 X 1.78 O-RING PTFE
63		Ø29.9 X 1.78 O-RING PTFE
64		0.875 BALL
65		INLET SPRING KEEP
66		PISTON SEAT
67		Ø46 PISTON
68		PISTON KEEP

Parts List – Valve Assembly:

Ref. No.	Part No.	Description
80		SPOOL AND SLEEVE ASSEMBLY
		SPOOL AND SLEEVE O’RING
81		BUMPER
82		MAGNET
83		VALVE BLOCK END CAP
84		DIAPHRAGM
85		O-RING 1.5 X 36
86		O-RING 2 x 20
87		M4 x 12 SHCS
88		VALVE BLOCK
89	0115-010103	1/4 BSPT PIPE PLUG
90		1/8 BSPT PIPE PLUG
91		3/8 UNIVERSAL FITTING
92		QUICK EXHAUST VALVE CAGE
