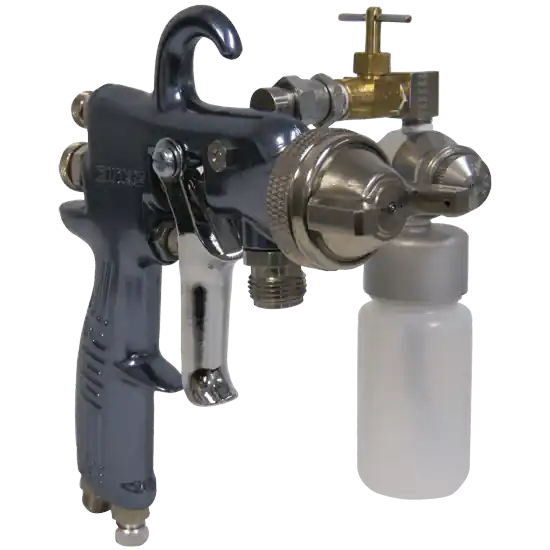

Binks Model 2100 GW Plural Component Spray Gun

Binks Model 2100 GW Plural Component Spray Gun

Manufacturer: Binks

Part #: 2101-4307-9GW, (1.8) / 2101-5111-5GW (2.8)

Description: The 2100 GW gun is a lightweight, hand-held, plural component spray gun for spraying limited applications of two-component materials, such as gel-coats or polyesters. The spray gun is operated in the conventional manner. The trigger action starts and stops the spray of both materials simultaneously. The two materials exit separately as an atomized spray from their respective nozzles and impinge on each other approximately 6″ in front of the gun (resin) nozzle. Here, the resulting turbulence
insures intimate mixing.

The “base” resin is “cured” by addition of a curative (catalyst) in a required ratio. In the 2100 GW gun, ratios of approximately 10:1 to perhaps 33:1 are possible by extending the curative with a compatible diluent.

Round to fan spray pattern and all intermediate shapes

Complete 360º rotation of spray pattern

2 Options Available: Spraying of very thin fluids (14-16 seconds #2 ZAHN) or Heavy fluids (over 28 seconds #2 ZAHN)

Type Of Fluid:	Nozzle Size:	CFM @ 50psi	Fan Pattern
Thin	1.8mm	12.1	10.5″
Heavy	2.8mm	14.1	12″

Features:

Built-in air and fluid controls

Siphon container assembly directly mounted

Conventional start/stop trigger action

Easy ratio adjustment of resin to curative material

Excellent training tool

Parts and Accessories:

Spray Gun Assembly Parts –

Ref. No.	Part No.	Description
–		REBUILD KIT
1		2100 GUN BODY
2		SIDE PORT CONTROL ASSEMBLY
3		MATERIAL BODY
4		PTFE PACKING
5		PACKING NUT
6		2100 TRIGGER
7		O-RING VITON
8		SPRING
9		AIR VALVE ASSEMBLY
10		AIR ADJUSTMENT VALVE
11		AIR CONNECTION
12		AIR NOZZLE 66SD
		AIR NOZZLE 68PB
13		GASKET
14		FLUID NOZZLE 66SS, 1.8mm
		FLUID NOZZLE 68SS, 2.8mm
15		FLUID NEEDLE 565
		FLUID NEEDLE 568
16		SPRING
17		CONTROL SCREW
18		SPRING
19		O-RING
20		PACKING
21		PIN
22		VALVE STEM ASSEMBLY
23		SCREW
24		NUT
25		PACKING
26		QUICK CHANGE SIDEPORT CONTROL (OPTIONAL)
27		PLUG ( OPTIONAL)
28		ROUND BRUSH
29		FLAT BRUSH
30		STUD
31		FLUID NOZZLE WRENCH

Catalyst Atomizing Assembly Parts –

Ref. No.	Part No.	Description
35		SWIVEL ADAPTER
39		AIR ADJUSTING VALVE
40	20-4997	O-RING (Silicone)
41		O-RING (PTFE)
42		WASHER
43		SPRING
44		STEM ASSEMBLY
45		CONTAINER & CAP ASSEMBLY
46		TUBE
47		JAMNUT
51	102-2209	CAP HOLDER
52		RETAINER RING
53		AIR NOZZLE (R6 Stainless Steel)
54		FLUID NOZZLE (J3 Stainless Steel)
55		NOZZLE BODY
56		STREET ELBOW 1/8 NPT
57		CATALYST BOTTLE ASSEMBLY
59		CATALYST ATOMIZING ASSY

Binks charges a significant fee to drop ship orders of less than. Therefore, any parts orders under will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.

Contact: 503-545-3176
