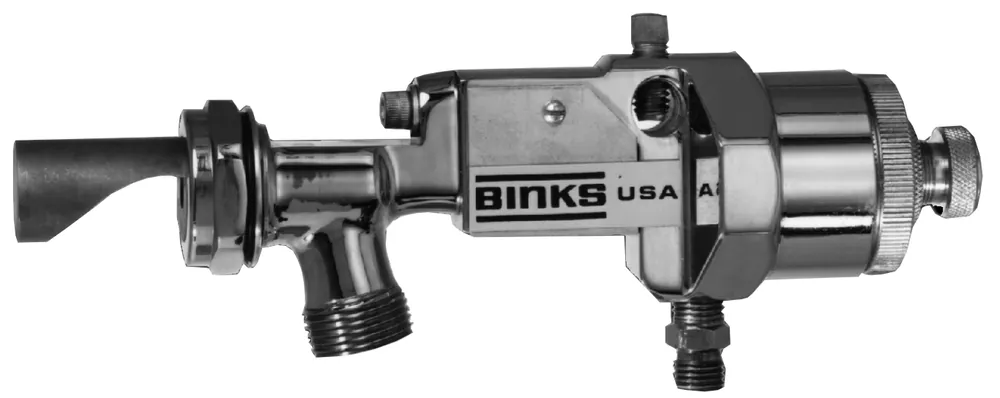

Binks Model 30 Automatic Glass Bead Dispensing Gun

Model 30 Automatic Glass Bead Dispensing Gun

Manufacturer: Binks

Part #:

6279-0000-1 MODEL 30

6279-0000-5 MODEL 30 (BIG BORE)

Description: The Model 30 Glass Bead Dispensing Gun delivers glass beads at the rate of up to 20 lbs. per minute. (A pressure tank with follower plate and bottom outlet is recommended for supply of glass beads to the gun.) Air for atomization is not required.

“On-off” of the gun is provided by the air cylinder. It is located at the rear of the gun body. The minimum recommended air pressure to the cylinder is 50 PSIG.

Designed for laying out glass bead during a line striping operation. Use on hand line stripers or moving trucks.

The gun is furnished with 4 nozzle inserts with orifice diameters of 7/32″, 1/4″, 9/32″ and 11/32″.

Optional Big Bore with a 1/2”dia nozzle delivers glass beads at a rate of up to 60lbs. per minute @ 70 psi.

Note: The Model 30A – HIgh Flow is similar in design to Model 30, but the 30A is a “bleeder” type heavy materials spray gun for road marking operations requiring a high volume delivery of viscous materials

Specifications:

Air Inlet: 1/4″ NPSM

Material Inlet: 3/4″ NPSM

Parts and Accessories:

Ref. No.	Part No.	Description
–		SPRAY GUN MOUNTING BRACKET
1		CONTROL SCREW
2		CONTROL SCREW LOCKNUT
3		CAP
4		SPRING
5▲		SPRING
6		PISTON ROD
7▲		O-RING
8		PISTON
9▲		U-CUP
10		RETAINER RING
11▲		O-RING
12■		DEFLECTION NOZZLE .344″ Dia.
13■		NOZZLE INSERT 7/32″ Dia.
13■		NOZZLE INSERT 1/4″ Dia.
13■		NOZZLE INSERT 9/32″ Dia.
13■		NOZZLE INSERT 11/32″ Dia.
14		DEFLECTION NOZZLE and INSERT ASSEMBLY
15		NEEDLE
16		GUN HEAD
17		SCREW, HEX HEAD 1/4″-20 x 7/8″ Long
18		LOCKWASHER
19		MOUNTING SCREW
20		GUN BODY
21		D.M. NIPPLE 1/4″ NPS x 1/4″ NPT
22		HEX NUT 1/4″-20
23		SCREW
24	▲	O-RING
25*	54-3114▲	WIPER
26*	54-3113▲	RETAINER
27		SCREW, ROUND HEAD 6-32 x 1 1/4″ Long
28		GUARD
29		NUT 6-32
30		PIPE PLUG 1/8″ NPT SOC Head
–		OPTIONAL: 1/2″ BIG BORE KIT

* Also available in Wiper Kit

▲ Also available in Repair Kit

■ Part of Assembly
