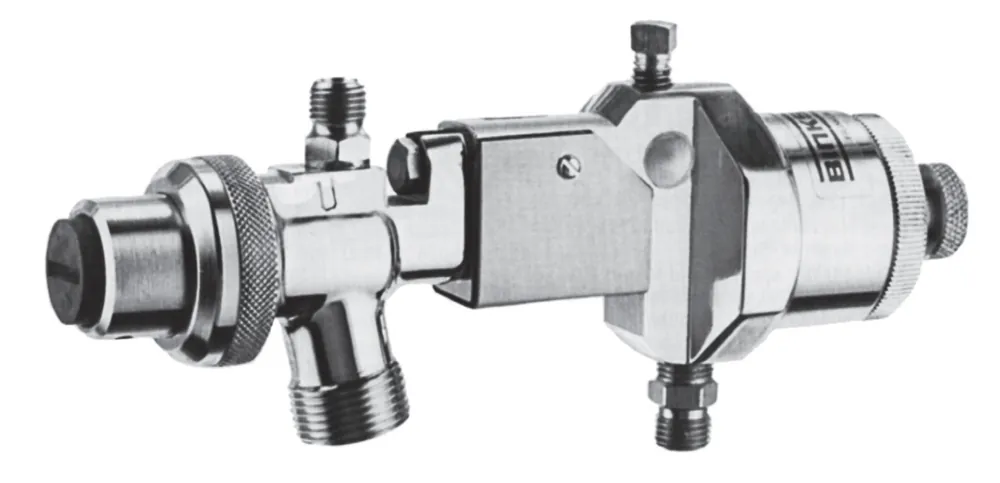

Binks Model 30A Automatic Heavy Materials Spray Gun

Model 30 Automatic Glass Bead Dispensing Gun

Manufacturer: Binks

Part #:

6277-3522-5 Model 30A (Tungsten Carbide Air Nozzle)

6277-3525-7 Model 30A (Stainless Steel Air Nozzle)

Description: The Binks Model 30A Spray Gun is designed specifically for the application of viscous materials such as mastics and traffic marking paints. The spray gun is a “bleeder” type and can be supplied with front or rear seating fluid nozzles.

“On-off” of the spray gun is provided by the air cylinder. It is located at the rear of the gun body. The minimum recommended air pressure to the air cylinder is 50 PSIG.

Specifications:

Air Inlet: 1/4″ NPSM

Material Inlet: 3/4″ NPSM

46SS Fluid Nozzle (0.312″ Orifice)

Stainless Steel or Tungston Carbide Air Nozzle

Air required: 11.5 CFM @ 50 PSI

Parts and Accessories:

Ref. No.	Part No.	Description
–		SPRAY GUN MOUNTING BRACKET
1		CONTROL SCREW
2		CONTROL SCREW LOCKNUT
3		CAP
4		SPRING
5▲		SPRING
6		PISTON ROD
7▲		O-RING
8		PISTON
9▲		U-CUP
10		RETAINER RING
11	As Specified	Air Nozzle
13		SCREW
14		BASE ASSEMBLY
15	As Specified	FLUID NOZZLE
16		NEEDLE, Front Seating, Stainless Steel
17▲		GASKET
18		GUN HEAD
19		AIR CONNECTION
20		SCREW, 1/4-20 x 7/8 in. long
21		LOCKWASHER
22▲*	54-3113	RETAINER
23▲*	54-3114	WIPER
24	–	GUN BODY
25		SCREW
26		D.M. NIPPLE, 1/4 NPS x 1/4 NPT
27		HEX NUT, 1/4-20
28		SCREW
29		O-RING
30		SCREW Rd. Hd., 6-32 x 1-1/4 in. long
31		GUARD
32		HEX NUT, 6-32

* Also available in Wiper Kit

▲ Also available in Repair Kit
