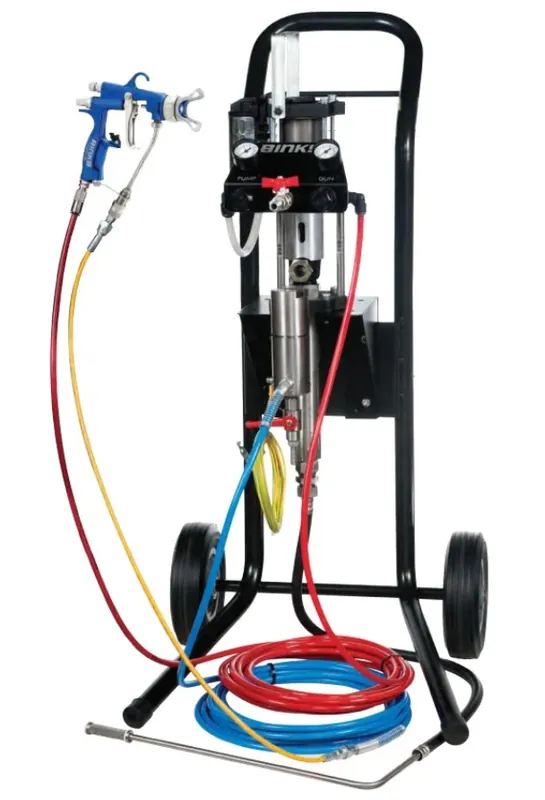

Binks MX432 Air Assisted Airless Pump Systems

Air Assisted Airless 32:1 Piston Pump Systems

Manufacturer: Binks

Part #: MX432XX-XXXXXXX

Description: MX432: 0.4 gal/m output and 32:1 ratio

Binks MX Pumps are a completely new design in air-operated pump technology utilizing patented magnetic detents to provide fast changeover with virtually no pulsation. The result is paint delivery with less pulsation for a more consistent finish. The MX pistons are ceramic coated – the most durable surface available – for resisting wear from abrasive materials.

The MX Pumps are ideal for air assisted airless spray finishing, supporting 1 to 2 spray guns, with thin to medium viscosity coatings.

Wood Stains, Varnishes, Lacquers

Primers & Sealers

Solvent & Waterborne Coatings

Enamel & Polyurethane

MX432 Pump Specifications:

Ratio:	32:1
Maximum air inlet pressure:	8 bar [116 psi]
Maximum fluid pressure:	256 bar [3712 psi]
Displacement per cycle:	24 cc [0.8 oz]
Output @ 60 cycles / min:	1.4 l/m [0.4 US gal/m]
Air consumption @ 20 cycles/min and 8 bar [116 psi] air inlet pressure:	147 l/m [5.2 SCFM]@20 LPM
Maximum recommended continuous cycle rate [cycles/min]:	20 cycles/min
Air inlet connection:	3/8″ BSP(m) and 1/4″ NPS(m)
Air piston diameter:	85 mm [3.3 in]
Stroke length:	75 mm [3.0 in]
Fluid inlet connection:	3/4″ NPS(m)
Fluid outlet connection:	3/8″ BSP(m) / 3/8″ NPS(m)
Sound level:	96.2 dB
Wetted parts materials of construction:	Stainless Steel, Tungsten Carbide, Hard Chrome, PTFE, Polyethylene, Leather

When selecting a model, the following options are available:

Seals: PTFE/UHMWPE (PU).

Spray Gun: None (0) or TROPHY AA 4400 Flat Tip (T).

Air Control: Air Control (D).

Mount: Cart (C) or Wall (W) Mount.

Filter: None (0) or 100 Mesh (1).

Siphon: None (0), 5 Gallon (S).

Hose: None (00) or 25ft/whip (25).

• Part # MX432PU-0DC0000

  Part # MX432PU-0DC0S00

  Part # MX432PU-0DC1S00

  Part # MX432PU-TDC1S25

Cart Mounted Spare Parts

Ref. No.	Part No.	Description	Qty
1		BARE PUMP ASSEMBLY (PTFE/LEATHER) BARE PUMP ASSEMBLY (PTFE) BARE PUMP ASSEMBLY (PTFE/UHMW) BARE PUMP ASSEMBLY (U-CUPS)	1
2	0909-4400-HF0000 0909-4400-HT0000	AA4400 GUN ASSEMBLY (FLAT TIP HOLDER) FLAT SPRAY TIP (1310) AA4400 GUN ASSEMBLY (TWIST TIP HOLDER) TROPHY AA 4400 GUN (FLAT TIP) TROPHY AA 4400 GUN (TWIST TIP) TWIST SPRAY TIP (613) AIRLESS 75 GUN TWIST SPRAY TIP (515)	1
3		MATERIAL HOSE (1/4″ ID X 25′, 4000 PSI) MATERIAL HOSE (1/4″ ID X 50′, 4000 PSI)	1
4		AIR HOSE (3/8″ OD TUBE X 28FT) AIR HOSE (3/8″ OD TUBE X 53FT)	1
5		MATERIAL HOSE (1/8″ ID X 3′, 5000 PSI)	1
6		SWIVEL ADAPTER (1/4″ NPS M X F) [NOT SHOWN]	1
7		ADAPTER FITTING (3/8″ OD TUBE X 1/4″ NPS F)	1
8		AIR CONTROL ASSEMBLY	1
9		DM NIPPLE (1/4″ NPS/NPT X 3/8″ NPS/NPT)	1
10		TROLLEY ASSEMBLY	1
11		PUMP BRACKET	1
12		SOCKET HEAD CAP SCREW (M8 X 35mm)	4
13		HEX NUT (M8)	8
14		LOCK WASHER (M8)	4
15		FLAT WASHER (M8)	8
16	0115-010630	S.S. FILTER ASSEMBLY (100 MESH) S.S. FILTER ASSEMBLY (200 MESH)	1
17		SWIVEL ADAPTER (3/8″ NPS F X 1/4″ NPT/NPS M)	1
18		SIPHON TUBE ASSEMBLY (5 GALLON) SIPHON TUBE ASSEMBLY (55 GALLON)	1
20		CHECK VALVE	1
21		SOCKET HEAD CAP SCREW (M8 X 25)	4
22		SWIVEL ELBOW (3/8″ OD TUBE X 1/4″ NPT)	1

Part # MX432PU-0DW0000

Part # MX432PU-0DW0S00

Part # MX432PU-0DW1S00

Wall Mounted Spare Parts

Ref. No.	Part No.	Description	Qty
1		BARE PUMP ASSEMBLY (PTFE/LEATHER) BARE PUMP ASSEMBLY (PTFE) BARE PUMP ASSEMBLY (PTFE/UHMW) BARE PUMP ASSEMBLY (U-CUPS)	1
2	0909-4400-HF0000 0909-4400-HT0000	AA4400 GUN ASSEMBLY (FLAT TIP HOLDER) FLAT SPRAY TIP (1310) AA4400 GUN ASSEMBLY (TWIST TIP HOLDER) TROPHY AA 4400 GUN (FLAT TIP) TROPHY AA 4400 GUN (TWIST TIP) TWIST SPRAY TIP (613) AIRLESS 75 GUN TWIST SPRAY TIP (515)	1
3		MATERIAL HOSE (1/4″ ID X 25′, 4000 PSI) MATERIAL HOSE (1/4″ ID X 50′, 4000 PSI)	1 IF HOSE LENGTH = 25 1 IF HOSE LENGTH = 50
4		AIR HOSE (3/8″ OD TUBE X 28FT) AIR HOSE (3/8″ OD TUBE X 53FT)	1 IF HOSE LENGTH = 25 1 IF HOSE LENGTH = 50
5		MATERIAL HOSE (1/8″ ID X 3′, 5000 PSI)	1 IF HOSE LENGTH = 25 / 50
6		SWIVEL ADAPTER (1/4″ NPS M X F) [NOT SHOWN]	1 IF GUN TYPE = P
7		ADAPTER FITTING (3/8″ OD TUBE X 1/4″ NPS F)	1 IF GUN TYPE = G / H
8		AIR CONTROL ASSEMBLY	1 IF AIR CONTROL = D
9		DM NIPPLE (1/4″ NPS/NPT X 3/8″ NPS/NPT)	1 IF AIR CONTROL = D
10		PUMP BRACKET	1
11		SOCKET HEAD CAP SCREW (M8 X 35mm)	4
12		HEX NUT (M8)	4
13		LOCK WASHER (M8)	4
14		FLAT WASHER (M8)	4
15	0115-010630	S.S. FILTER ASSEMBLY (100 MESH) S.S. FILTER ASSEMBLY (200 MESH)	1 IF FILTER TYPE = 1 1 IF FILTER TYPE = 2
16		SWIVEL ADAPTER (3/8″ NPS F X 1/4″ NPT/NPS M)	1 IF NO FILTER
17		SIPHON TUBE ASSEMBLY (5 GALLON) SIPHON TUBE ASSEMBLY (55 GALLON)	1 1
18		CHECK VALVE	1
19		SWIVEL ELBOW (3/8″ OD TUBE X 1/4″ NPT)	1 IF AIR CONTROL = D

Accessories:

Wall Bracket

Cart Assembly

Tripod Assembly

5-Gallon Siphon Kit (1/2″ NPS)

50 Mesh Inlet Filter (2 Pack)

5-Gallon Siphon Kit (3/4″ NPS)

5 Gallon Siphon Hose & Tube

50 Mesh Inlet Filter (2 Pack)

55-Gallon Siphon Kit (1/2″ NPS)

1/2 NPSM x 30 Mesh S.S. Strainer

Check Valve Assembly

Upper Ball, 6mm

Air Controls

S.S. High Pressure Filter Assembly (100 Mesh)

Pump Lubrication

Throat Seal Lube, Solvent-Based

Throat Seal Lube, Water-Based

Literature:

Binks charges a significant fee to drop ship orders of less than. Therefore, any parts orders under will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.

Contact: 503-545-3176
