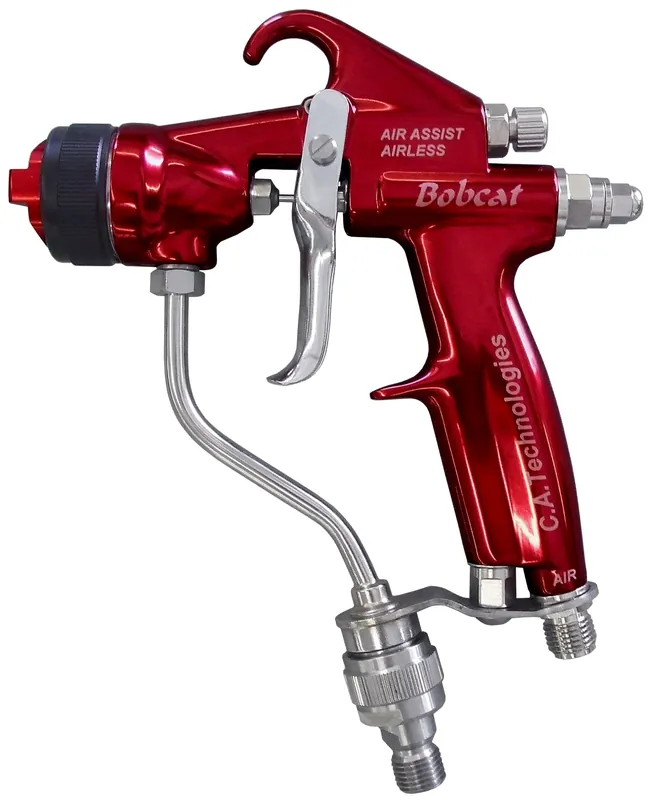

Bobcat Air-Assisted Airless Spray Gun

Bobcat Air-Assisted Airless Spray Gun

Manufacturer: C.A. Technologies

Part Number: Bxxx

Description: Bobcat Air-Assisted Airless Spray Gun

Bobcat Air-Assisted Airless Spray Gun HVLP* Compliant

The BOBCAT AAA is a fine finish gun for production wood or metal fine finish spraying. Features include all stainless steel fluid passages, ergonomic design, integrated fluid filter, and easy trigger pull. Superfine soft atomization is achieved with a precise geometry of airless fluid tip and low volume air cap that mix at the locus of atomization. Delivers finishes at production speeds. The pump and gun system can be operated with a 1.5 HP compressor.
Air Inlet: 1/4″ NPS (m)
Fluid Inlet: 1/4″ NPS (m)
Literature:

Spare Parts:

Ref. No.	Part No.	Description
1		Air Cap Ring
2		Air Cap
3		Fluid Tip
4		O-Ring
		Tip Strainer
5		Air Cap Adapter O-Ring
6		Air Cap Adapter
7		Nozzle Body
8		Seat
9		Seat Retainer
10		Nozzle Carrier
11		Teflon O-Ring
12		Gun Body
13		Set Screw
14		Safety Lock Spring
15		Pin, Trigger Safety
16		Viton O-Ring
17		O-Ring 12.5 mm x 2.0
18		Fan Control
19		Air Valve Assembly
20		Push Rod
21		Fluid Spring
22		Spring Cap
23		Air Inlet Fitting
24		Handle Plug
25		SS Button Hd Screw
26		Fluid Tube Assembly
27		Needle Seal Cartridge
28		Trigger Pivot Screw
29		Trigger
30		Filter (100 mesh standard)
		Filter (60 mesh optional)
31		Filter Retaining Nut
32		Filter Housing, Lower
–		Gun Repair Kit (soft seals only)
–		Complete Gun Repair Kit
