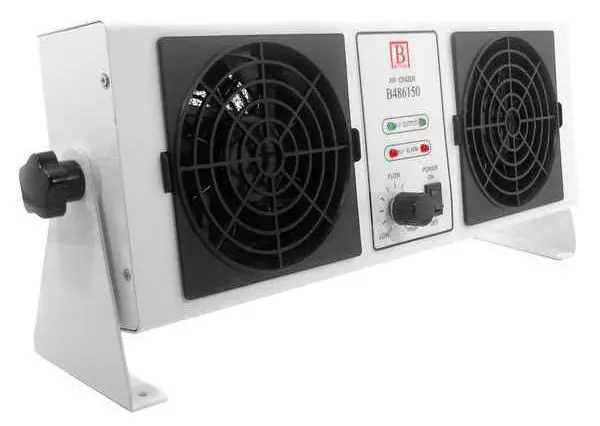

Botron B486150 High-Frequency Dual Fan Benchtop Ionizer Blower, 24V

Applications

As with all of Botron’s ionization units the B486150 is designed to neutralize electrostatic charge in personal bench top environments, sensitive materials assembly, packaging, cleanroom and laboratories.

Operation

Power on unit and adjust air flow for maximum neutralization. Aim unit at the area or items to be neutralized.

Performance

Ion balance +/- 5v

Positive decay times from (sec) 0.9 at 300mm to 2.5 at 900mm

Negative decay times from (sec) 1.1 at 300mm to 3.6 at 900mm

*All results are based according to EOS/ESD-STM 3.1-2000.

*Results may vary based on test conditions.

Detailed Info

Power supply: DC24VA

Capacity: 24VA

Output HV: AC2200V

Air volume: 2.6 – 6.5m3/min cfm

Temperature: 68-104° F/0-40° C

Humidity: 25-70% RH (no drops)

Ozone: < 0.007 ppm

Indicators: Green LED, Red LED

Controls: Fan speed control, Power On/Off

Mounting: Adjustable stand/bracket

Emitter: Tungsten Alloy

Dimensions: 7.0″H x 18″W x 3.5″D

Product Overview

More Information

SKU	I138416
Part No.	B486150
Brand	Botron
Input	24V
