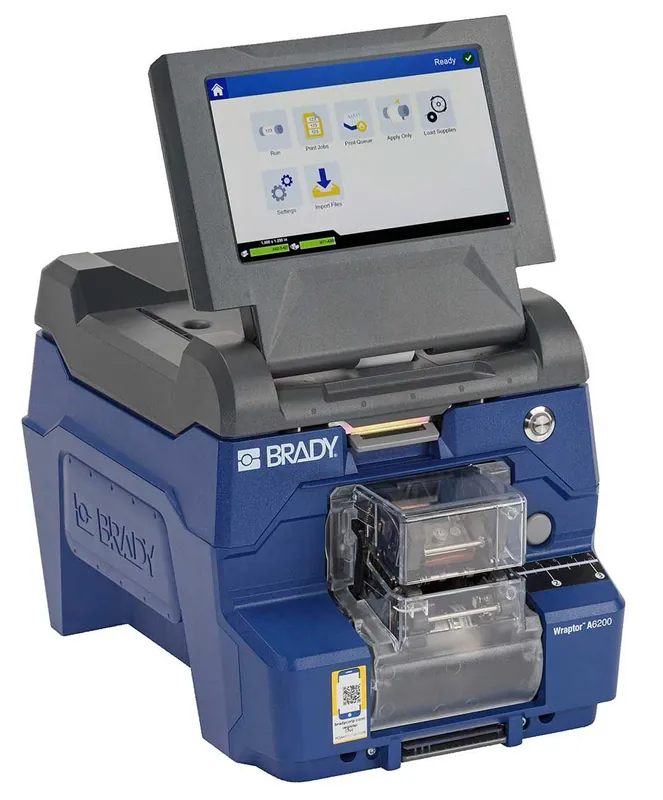

Brady Worldwide A6200 Wraptor™ Wi-Fi Wrap Printer Applicators

What’s Included

	A6200-NAB-WIFI	A6200-NAB-WIFI-KIT	177536	176715	176707	176723
Software	Product & Wire ID	Product & Wire ID	Product & Wire ID	Product & Wire ID	Product & Wire ID	Product & Wire ID
Printer	Wraptor™ A6200	Wraptor™ A6200	Wraptor™ A6200	Wraptor™ A6200	Wraptor™ A6200	Wraptor™ A6200
Scanner			V4500 Barcode Scanner (177233)	CR1500 Handheld Wired Barcode Scanner with Stand (176511)	CR2700 Scanner Handled Scanner with Charging Station (176516)	CR950 Handheld Wired Barcode Scanner (176522)
Rewinder (A6200-REWINDER)
Power Cord & AC adapter
Printer Applicator (A6200)
Printer Applicator (A6200-NAB-WIFI)
Printer Ribbon 2 x 150ft (A62-R4300)
Roll of Vinyl 1.25×1 Clear/White Labels (A62-3-417)
Quick Start Guide
V1200 Battery (177234)
V1300 Cradle (177235)
USB Cable
USB 1M Cable (177237)
Brady Workstation Design & Print Pro Insert

Specifications

Product Features

Application: Wire and Cable Labeling

Shipped with Battery:

A6200-NAB-WIFI, A6200-NAB-WIFI-KIT, 176715 & 176723: No

177536: Yes, rechargeable Lithium-ion Battery. Shipped in box, not installed

176707: Yes, rechargeable Lithium-ion Battery. Shipped installed in equipment

Connectivity Options: Ethernet, USB

Device Connectivity: PC connected & Stand-alone

Display Type: Color LCD Touch Screen

Memory: 32 GB, expandable through USB

Plug Type: US

Power Supply Voltage: 100 – 240 V

Operating System: Windows® 10, Windows® 7, Windows® 8

Printing Specifications

Calibration Required?: No

Color Printing Capability: Single Color

Aplication Cycle Time: 7 Seconds

Maximum Labels per Day: 1000

Maximum Label/Tape Width: 1 in

Minimum Label Length: 0.75 in

Maximum Print Speed: 1.5 in/s

Maximum Printed Label Length: 1.25 in

Print Resolution: 300 dpi

Print Technology: Thermal Transfer

Compatibility

Compatible Media: A62-, BA62-

Label Material Types: Nylon Cloth, Self-laminating Vinyl

Materials Supported: Bulk, Custom, Die-cut

Maximum Print Width: 1 in

Wire Diameter Range: 0.047 in – 0.25 in

Software Compatibility: Brady Workstation, CodeSoft, Windows based driver for 3rd party software use

Compliance

California Prop 65: No warning label required

REACH SVHC Status: Part contains an SVHC

REACH Candidate List Date: 25 June 2025

Country of Origin: Malaysia

ECCN (Export Commodity Control Number): EAR99

HTS Code (Harmonized Tariff Schedule): 8471.60.8000

RoHS Compliance Status: Compliant with Directive 2011/65/EU and 2015/863

UNSPSC: 45101519

Product Overview

More Information

SKU	G101377
Part No.	A6200
Brand	Brady Worldwide
Type	Benchtop
Compatible With	Brady Wraptor A6200
Warranty	1 Year
