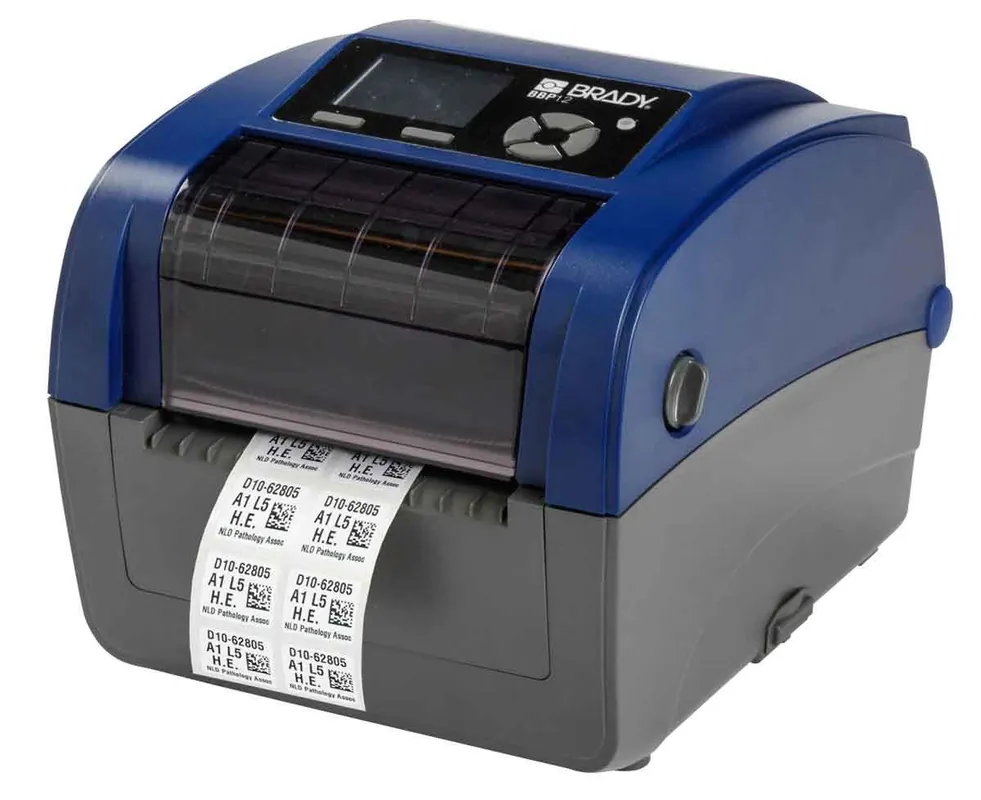

Brady Worldwide BBP12 Label Printers

What’s Included

	BBP12-US	BBP12-NA-PWID	BWS-SPS-BBP12
Software	–	Product & Wire ID	Scan & Print
Printer	BBP12 Printer (BBP12-US)	BBP12 Printer (BBP12-US)	BBP12 Label Printer (146202)
Drivers CD
Power Cord
Quick Start Guide
Ribbon Paper Core
USB Cable
Brady Workstation Scan and Print Insert
Code Reader CR1500 Barcode Reader (150507)

Top Applications

Wire and Cable – Sleeves, Self-Lams, Wire Wraps, Flag Labels, Cable Markers

General Identification – Directional marking, Equipment labeling

Rating & Name Plate – Durable finished goods, High quality barcode images and text, UL certification

Laboratory – Vial, Tube, Slide labeling, Sample identification

Specifications

Product Features

Dimensions: 7.5 in H x 7.99 in W x 10.21 in D

Application: Asset Tracking, Barcode Labeling, Laboratory Labeling, Wire and Cable Labeling

Built-In Label Wizards: No

Connectivity Options: Ethernet, RS232, USB 2.0, USB Host

Cutter Type: None

Device Connectivity: PC connected

Display Type: Monocolor LCD Screen

Media Sensor Type: Black Mark, Gap Sensor, Head Open, Ribbon End

Memory: 128 MB Flash, 64 MB SDRAM, SD Flash memory card up to 32 GB

Plug Type: US

Auto Shut-Off / Power Conserve: No

Print Preview Feature?: No

User Interface Type: LCD + Navigation Keys

Battery Type: Lithium-manganese Battery

Operating System: Windows® 10, Windows® 7, Windows® 8

Printing Specifications

Automatic Label Set Up: No

Barcode Symbologies – 2D: Aztec, GS1 DataMatrix, MaxiCode, MicroPDF417, PDF417, QR code

Barcode Symbologies – Linear: China Post, Codabar, Code 11, Code 128A, Code 128B, Code 128C, Code 128UCC, Code 39, Code 39 with check digit, Code 49, Code 93, Deutsche Post Identcode, Deutsche Post Leitcode, EAN-13, EAN-8, GS1 DataBar, GS1 DataBar Stacked Omnidirectional, GS1-128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, ITF-14, MSI, MSI with check digit, PLANET, Plessey, POSTNET, Telepen, UPC-A, UPC-E

Calibration Required?: Yes

Color Printing Capability: Single Color

Maximum Labels per Day: 1000

Maximum Label/Tape Width: 4.6 in

Minimum Label Length: 0.39 in

Maximum Print Speed: 4 in/s

Maximum Printed Label Length: 450 in

Print Resolution: 300 dpi

Print Technology: Thermal Transfer

Media Sensor Adjustment: Yes

Compatibility

Compatible Media: THT-, 2HX-, 3PS-, HX-, PS-, THT- for BWS-SPS-BBP12

Label Material Types: Direct Thermal Paper, FreezerBondz™ Polyester, Heat-shrink Polyolefin, Metallized Polyester, Metallized Polyester with Polyester Overlaminate, Nylon Cloth, Paper, Polyester, Polyester with Polyester Overlaminate, Polyimide, Polyolefin, Polypropylene, Polyvinylfluoride, Repositionable Paper, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Tamper-resistant Metallized Vinyl, Tamper-resistant Vinyl, Vinyl, Vinyl Cloth, Water-indicating Polyester/Paper Laminate

Materials Supported: Bulk, Continuous, Custom, Die-cut

Custom Labels Available: Yes

Maximum Print Width: 4.15 in

Software Compatibility: Brady Workstation, Windows based driver for 3rd party software use

Languages Available: Bulgarian, Chinese (Simplified), Chinese (Traditional), Czech, Danish, Dutch, English (US), Finnish, French (France), German, Greek, Hungarian, Italian, Japanese, Korean, Lithuanian, Norwegian, Polish, Portuguese (Portugal), Russian, Slovak, Spanish (Spain), Swedish, Turkish

Compliance

California Prop 65: No warning label required

REACH SVHC Status: Part does not contain an SVHC

REACH Candidate List Date: 25 June 2025

Country of Origin: China

ECCN (Export Commodity Control Number): EAR99

HTS Code (Harmonized Tariff Schedule): 8443.32.1050

RoHS Compliance Status: Compliant with Directive 2011/65/EU and 2015/863

UNSPSC: 45101519

Product Overview

More Information

SKU	G101381
Part No.	BBP12
Brand	Brady Worldwide
Type	Benchtop
Compatible With	Brady BBP12
Warranty	5 Years
