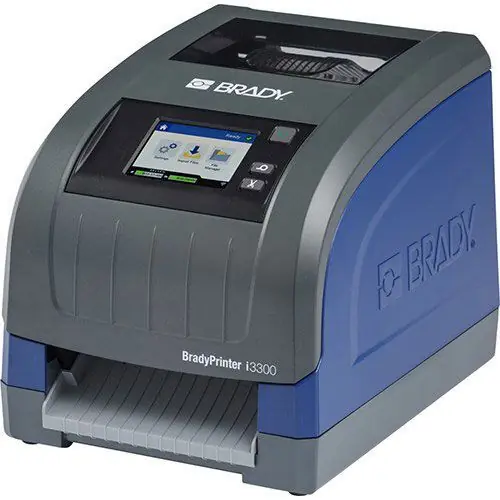

Brady Worldwide i3300 Label Printers

What’s Included

	150640	150642	176712
Software	Product & Wire ID	Laboratory ID	Product & Wire ID
Printer	i3300 Printer with Wi-Fi (150640)	i3300 Printer with Wi-Fi (149552)	i3300 Printer with Wi-Fi (150640)
Cleaning Kit (PCK-6)
Cutter Cleaning Tool
Power Cord
USB Cable
CR1500 Handheld Wired Barcode Scanner with Stand (176511)
Brady Workstation Design & Print Pro Insert
Brady Workstation Design & Print Essentials Insert
Product CD with User Manual
Quick Start Guide

Top Applications

General Identification: Directional marking, Equipment labeling

Wire and Cable: Sleeves, Self-Lams, Wire Wraps, Flag Labels, Cable Markers

Rating & Name Plate: Durable finished goods, High quality barcode images and text, UL certification

Circuit Board: ESD labels, Polyimide circuit board labels

Laboratory: Vial, Tube, Slide labeling, Sample identification

Specifications

Dimensions

Dimensions: 9.5″(H) x 9.0″(W) x 12″(D)

Display Size: 3.5″

Weight: 11.5 lbs.

Product Features

Color: Blue, Gray

Application: Asset Tracking, Barcode Labeling, Circuit Board Labeling, Component and Equipment Labeling, Data and Telecommunications Labeling, Electrical Labeling, Facility Identification, General Identification, Hazard Communication Identification, Inventory and Inspection Labeling, Laboratory Labeling, Lean and 5S Labeling, Pipe and Valve Marking, Warehouse Marking, Wire and Cable Labeling

Built-In Label Wizards: No

Connectivity Options: Ethernet, USB, USB 2.0, Wi-Fi

Cut Options Available: Cut at the end of print jobs, Cut between labels, Full Cut

Cutter Type: Auto Cutter

Display Type: Color LCD Touch Screen

Estimated Media Changeover Time: 15 seconds for media roll, 5 seconds for ribbon

Keyboard Type: None

Memory: 512 MB RAM, 195 MB IFFS Flash

Device Connectivity: PC connected

Number of Symbols: See Brady Workstation Software

Plug Type: US

Power Supply Voltage: 100 – 240V @ 50 – 60 Hz

Auto Shut-Off / Power Conserve: Yes

Print Preview Feature?: No

Units: Inches, mm, Points

User Interface Type: PC, Touch Screen

Operating System: Windows® 10, Windows® 11, Windows® 7, Windows® 8, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016

Printing Specifications

Automatic Label Set Up: Yes

Barcode Symbologies – 2D: Aztec, Data Matrix, MicroPDF417, PDF417, QR code

Barcode Symbologies – Linear: Code 128A, Code 128B, Code 128C, Code 39, Code 93, EAN-13, EAN-8, HIBC, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, JAN-13, JAN-8, UPC-A

Calibration Required?: No

Color Printing Capability: Single Color

Font Sizes: 4 – 250 pt

Font Styles: Arial, Courier New, Tahoma, Times New Roman, Trebuchet MS, Verdana

Maximum Labels per Day: 3,000

Maximum Print Speed: 4 in/s

Minimum Label Length: 0.25 in

Print Resolution: 300 dpi

Minimum Liner Width: 0.71 in

Print Technology: Thermal Transfer

Media Sensor Adjustment: Automatic Adjustment

On Screen Indicators: Data Reception, Error Messaging, Ethernet Status, Ribbon and label part number recognition, Ribbon Remaining, Supply Remaining, WiFi

Compatibility

Compatible Media: B30-, B30C-, B30EP-, B33-, B33C-, B33D-, B33FP-, B33FT-, B33R-

Label Material Types: FreezerBondz™ Polyester, Heat-shrink Polyolefin, High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve, Magnetic Polyester, Metal-detectable Polyester, Metallic, Non-metal Polyester, Metallized Polyester, Metallized Polyester with Polyester Overlaminate, Nylon Cloth, Paper, Phosphorescent Polyester, Polyester, Polyester with Polyester Overlaminate, Polyimide, Polyolefin, Polypropylene, Polyvinylfluoride, Reflective Tape, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Static Dissipative Polyester, Tamper-evident Metallized Polyester, Vinyl, Vinyl Cloth

Continuous & Die-Cut Materials Supported: Continuous and Die-cut

Custom Labels Available: Yes

Maximum Label/Tape Width: 4.25 in

Maximum Print Width: 4.015 in

Maximum Printed Label Length: 5 ft

Maximum Liner Width: 4.25 in

Software Compatibility: Brady Workstation, Windows based driver for 3rd party software use

Languages Available: Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French (Canada), French (France), German, Hungarian, Italian, Korean, Norwegian, Polish, Portuguese (Brazil), Portuguese (Portugal), Romanian, Russian, Spanish (Mexico), Spanish (Spain), Swedish, Thai, Turkish

Compliance

Country of Origin: Malaysia

ECCN (Export Commodity Control Number): EAR99

HTS Code (Harmonized Tariff Schedule): 8471.60.8000

RoHS Compliance Status: Compliant with Directive 2011/65/EU and 2015/863

UNSPSC: 45101519

Product Overview

More Information

SKU	G101352
Part No.	i3300
Brand	Brady Worldwide
Type	Benchtop
Compatible With	Brady i3300
Includes	Battery, Software
Warranty	5 Years
