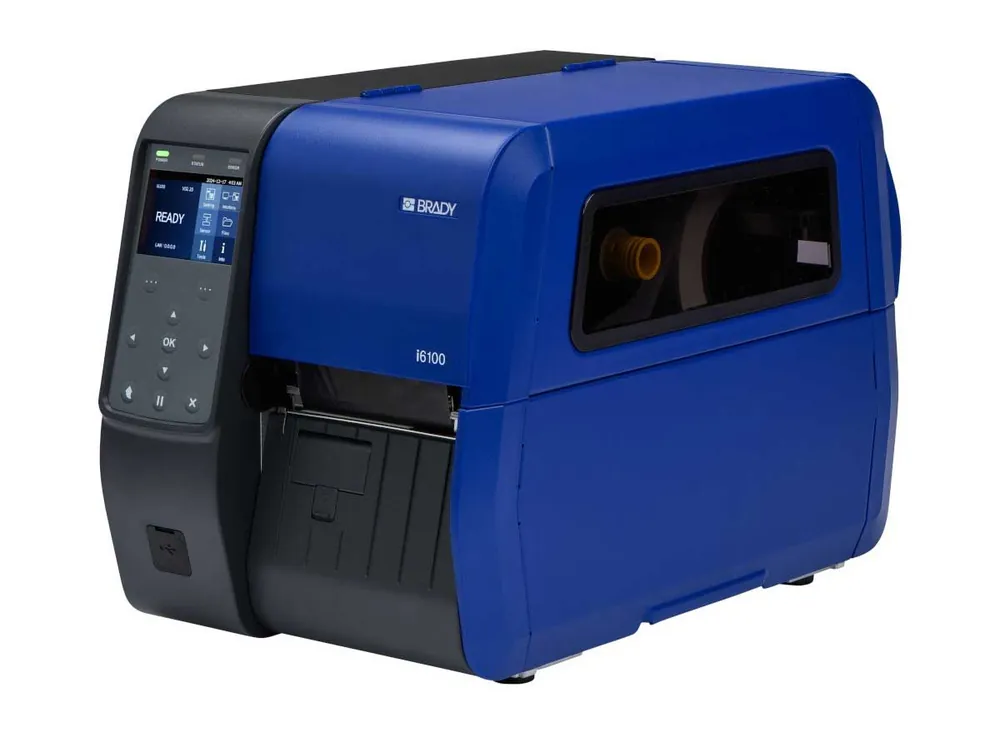

Brady Worldwide i6100 Industrial Desktop Label Printers

What’s Included

	178432	178434
Software	Product & Wire ID	Product & Wire ID
Printer	300 dpi i6100 Label Printer	300 dpi i6100 Label Printer with Rewinder
U.S. Type B Power Plug
Quick Start Guide

Ideal for a variety of applications

Manufacturing

Traceability solutions to optimize recall management

Meet serialization standards to keep supply chains moving

Parts labeling, quality control checks and inspections reports

Product ID

End-to-end labeling for content packaging

Enhanced component sourcing

Wide variety of materials

Wire ID

Label everything from small wires to entire cable harnesses

Organize and identify complex networks in datacom and telecom environments

Panel markers for rating plates and backer board identification

Specifications

Dimensions

Dimensions: 12.76″(H) x 10.6″(W) x 19.3″(D)

Core Diameter: 3″

Display Size: 3.5″

Product Features

Color: Blue, Gray

Application: Barcode Labeling, Component and Equipment Labeling, Data and Telecommunications Labeling, Electrical Labeling, General Identification, Inventory and Inspection Labeling, Laboratory Labeling, Wire and Cable LabelingApplication Barcode Labeling, Component and Equipment Labeling, Data and Telecommunications Labeling, Electrical Labeling, General Identification, Inventory and Inspection Labeling, Laboratory Labeling, Wire and Cable Labeling

Shipped with Battery: Yes

Built-In Label Wizards: No

Connectivity Options: Ethernet, RS232, USB 2.0, USB Host

Cut Options Available: Auto Cutter accessory available

Cutter Type: None

Device Connectivity: PC connected & Stand-alone

Display Type: Color LCD Screen

Estimated Media Changeover Time: 40 seconds

Keyboard Type: None

Media Sensor Type: Black Mark, Gap Sensor, Head Open, Notch, Reflective Sensor, Ribbon End, See-through

Memory: 512 MB SDRAM, 512 MB Flash

On Screen Indicators: Digital Clock, Error Messaging, Ethernet Status, Ready State

Plug Type: US

Power Supply Voltage: 100 – 240 V @ 50 – 60 Hz

Print Preview Feature?: No

Units: Inches, Millimeter, Points

User Interface Type: Buttons, PC

Battery Type: Internal, not removable, Lithium-manganese Battery

Operating System: Windows® 10, Windows® 11, Windows® Server 2019, Windows® Server 2022

Printing Specifications

Automatic Label Set Up: No

Barcode Symbologies – 2D: Aztec, Code 49, Composite Codes, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code

Barcode Symbologies – Linear: Codabar, Codablock, Code 11, Code 128, Code 39, Code 39 (Logmars), Code 49, Code 93, EAN/UPC Extension 2, EAN/UPC Extension 5, EAN-13, EAN-8, GS1 DataBar, Industrial 2 of 5, Intelligent Mail Barcode (IMb), Interleaved 2 of 5, MSI, Plessey, POSTNET, Standard 2 of 5 (IATA), UPC-A, UPC-E

Calibration Required?: Yes

Color Printing Capability: Single Color

Font Styles: Determined by software

Maximum Labels per Day: 4,000

Maximum Label/Tape Width: 4.488 in

Maximum Print Speed: 10 in/s

Minimum Label Length: 0.187 in

Maximum Printed Label Length: 8.2 ft

Print Resolution: 300 dpi

Print Technology: Direct Thermal, Thermal Transfer

Media Sensor Adjustment: Yes

Compatibility

Compatible Media: 2HT-, 3HT-, APL-, DR-, DT-, HX-, LSZH-, PS-, THT-, THTEL-, XTHT-, ZH-

Label Material Types: Direct Thermal Paper, FreezerBondz™ Polyester, Heat-shrink Polyolefin, Metallic, Non-metal Polyester, Metallized Polyester, Metallized Polyester with Polyester Overlaminate, Nylon Cloth, Paper, Polyester, Polyimide, Polyolefin, Repositionable Paper, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Static Dissipative Polyester, Tamper-evident Metallized Polyester, Tamper-evident Polyester, Vinyl, Vinyl Cloth, Water Dissolvable Paper, Water-indicating Polyester/Paper Laminate

Materials Supported: Bulk, Continuous, Custom, Die-cut

Custom Labels Available: Yes

Maximum Print Width: 4.161 in

Software Compatibility: Brady Workstation, Windows based driver for 3rd party software use

Languages Available: English (US), French (France), German, Korean, Spanish (universal)

Compliance

Country of Origin: Korea (the Republic of)

ECCN (Export Commodity Control Number): EAR99

HTS Code (Harmonized Tariff Schedule): 8443.99.2550

RoHS Compliance Status: Compliant with Directive 2011/65/EU and 2015/863

UNSPSC: 45101519

Product Overview

More Information

SKU	G101359
Part No.	i6100
Brand	Brady Worldwide
Compatible With	Brady i6100
Includes	Battery, Software
Warranty	5 Years
