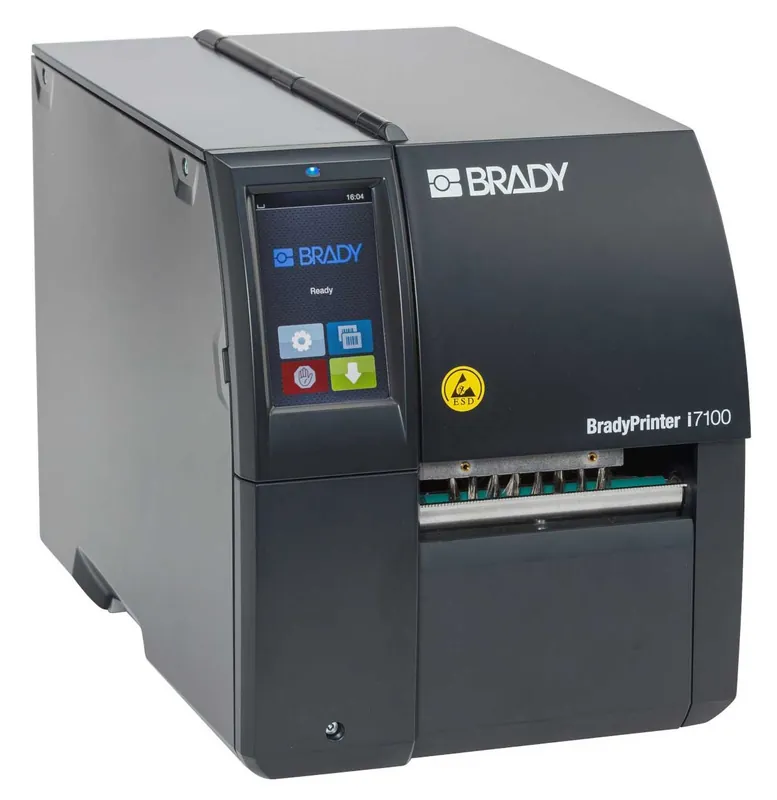

Brady Worldwide i7100 ESD-Safe Industrial Label Printers

What’s Included

	150773	150775	150774	150776
Software	Product & Wire ID	Product & Wire ID	Product & Wire ID	Product & Wire ID
Printer	i7100 300 dpi Full ESD Printer (150773)	i7100 600 dpi Full ESD Printer (150775)	i7100 300 dpi Peel Model Full ESD Printer (150774)	i7100 600 dpi Peel Model Full ESD Printer (150776)
Configuration Settings Manual
Owners Manual
Product CD with Driver
U.S. Type B Plug Power Cord
USB Cable
(2) 1 In Ribbon Takeup Cores

Top Applications

General Identification – Directional marking, Equipment labeling

Wire and Cable – Sleeves, Self-Lams, Wire Wraps, Flag Labels, Cable Markers

Rating & Name Plate – Durable finished goods, High quality barcode images and text, UL certification

Circuit Board – ESD labels, Polyimide circuit board labels

Electrical – Sleeves, Self-Lams, Wire Wraps, Cable Markers, Flag and Raised Panel Labels

Specifications

Product Features

Dimensions: 11.4″(H) x 9.9″(W) x 18.1″(D)

Weight: 22.05 lbs

Display Size: 2″ x 3.6″

Color: Blue, Gray

Application: Barcode Labeling, Circuit Board Labeling, Component and Equipment Labeling, Data and Telecommunications Labeling, Electrical Labeling, General Identification, Inventory and Inspection Labeling, Laboratory Labeling, Wire and Cable Labeling

Connectivity Options: Ethernet, RS232, USB 2.0, USB Host

Cutter Type: None

Device Connectivity: PC connected, Stand-alone

Display Type: Color LCD Screen

Keyboard Type: None

Media Sensor Type: Black Mark, Gap Sensor, Notch, Reflective Sensor

Memory: 256 MB RAM, 50 MB IFFS Flash, SD card up to 512 GB

On Screen Indicators: Bluetooth Status, Data Reception, Data Recording, Digital Clock, Ethernet Status, Ribbon Remaining, SD Memory Card inserted, Supply Remaining, USB Memory Stick inserted, USB Slave Status, WLAN Field Intensity

Plug Type: US

Power Supply Voltage: 100 – 240 V @ 50 – 60 Hz

User Interface Type: PC, Touch Screen

Battery Type: Lithium-manganese Battery

Operating System: Windows® 10, Windows® 7, Windows® 8, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016

Printing Specifications

Automatic Label Set Up: No

Barcode Symbologies – 2D: Aztec, Data Matrix, GS1 DataMatrix, MaxiCode, MicroPDF417, PDF417, QR code

Barcode Symbologies – Linear: Codabar, Codablock F, Code 128A, Code 128B, Code 128C, Code 39, Code 39 Full ASCII, Code 93, Deutsche Post Identcode, Deutsche Post Leitcode, EAN/UCC 128, EAN/UPC, EAN/UPC Extension 2, EAN/UPC Extension 5, EAN-13, EAN-8, FIM, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Truncated, GS1-128, HIBC, Interleaved 2 of 5, JAN-8, MSI, Plessey, POSTNET, UPC-A, UPC-E, UPC-E0

Calibration Required?: Yes

Color Printing Capability: Single Color

Font Styles: Bitmap Default Font – 12×12 dots, Bitmap Default Font – 16×16 dots, Bitmap Default Font – 16×32 dots, Monospace 821, OCR-A Size I, OCR-B, Swiss 721, Swiss 721 Bold

Max Labels/Day: 7,000

Max Label/Tape Width: 4.33″

Minimum Label Length: 0.125″

Max Print Speed: 5.9 in/s

Max Printed Label Length: 9.8″

Print Technology: Direct Thermal, Thermal Transfer

Progamming Language: abc Basic Compiler, Database Connector, Jscript, SAP Integration, ZPL Emulator

Media Sensor Adjustment: Yes

Compatibility

Compatible Media: 3PS-, BPT-, BPTC-, BPTRDS-, HCM-, HSNX-, HX-, LSZH-, PS-, PSHT-, PSL-, TB-, THT-, TIL-, XTHT-, ZH-

Label Material Types: TypesDiesel-resistant Heat-shrink Polyolefin Sleeve, Direct Thermal Paper, FreezerBondz™ Polyester, Heat-shrink Polyolefin, High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve, Metallic, Non-metal Polyester, Metallized Polyester, Metallized Polyester with Polyester Overlaminate, Nylon Cloth, Paper, Polyester, Polyester with Polyester Overlaminate, Polyethylene Foam Laminate Polyester, Polyimide, Polyolefin, Polypropylene, Polyvinylfluoride, Repositionable Paper, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Static Dissipative Polyester, Tamper-evident Metallized Polyester, Tamper-evident Polyester, Tamper-resistant Metallized Vinyl, Tamper-resistant Vinyl, Vinyl, Vinyl Cloth, Water-indicating Polyester/Paper Laminate

Materials Supported: Bulk, Continuous, Custom, Die-cut

Custom Labels Available: Yes

Maximum Print Width: 4.16 in

Software Compatibility: Brady Workstation, Windows based driver for 3rd party software use

Languages Available: Bulgarian, Chinese (Simplified), Croatian, Czech, Danish, Dutch, English (US), Farsi, Finnish, French (France), German, Greek, Hungarian, Italian, Korean, Lithuanian, Macedonian, Norwegian, Polish, Portuguese (Portugal), Romanian, Russian, Serbian, Slovenian, Spanish (Spain), Swedish, Turkish

Compliance

Country of Origin: Germany

ECCN (Export Commodity Control Number): EAR99

HTS Code: (Harmonized Tariff Schedule) 8443.32.1050

RoHS Compliance Status: Compliant with Directive 2011/65/EU and 2015/863

UNSPSC: 45101519

Product Overview

More Information

SKU	G101355
Part No.	i7100
Brand	Brady Worldwide
ESD-Safe	Yes
Type	Benchtop
Compatible With	Brady i7100
Includes	Battery, Software
Warranty	5 Years
