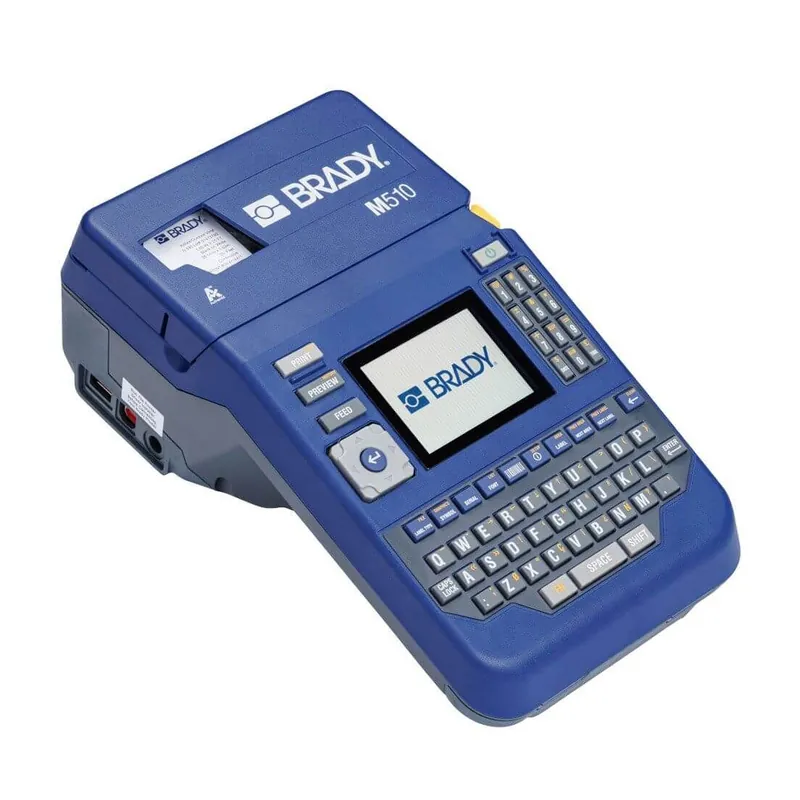

Brady Worldwide M510 Portable Industrial Label Printers

What’s Included

	M510	M510-KIT	M510-PWID	M510-SFID	M510-LAB	178340	178342
Software	Basic Design Suite	Basic Design Suite	Product & Wire ID	Safety & Facility ID	Laboratory ID	Product & Wire ID	Product & Wire ID
Printer	M510	M510	M510	M510	M510	M510	M510
AC Adapter (M41-51-61-AC)
Indoor/Outdoor Vinyl Label Cartridge (M5C-1500-595-WT-BK)
Rechargeable NiMH Battery Pack (M-NIMH-BATTERY)
USB Cable (M-USB-103788)
USB Flash Drive with Driver and User Manual
Hard Case (M510-HC)
Magnet (M51-MAGNET)
Rechargeable Li-ion Battery Pack (M-LION-BATTERY)
Utility Hook (M51-HOOK)
CR2700 Wireless Barcode Scanner with Charging Station (176516)
CR950 Wired Barcode Scanner (176522)
Quick Start Guide
Brady Workstation Design & Print Essentials Insert
Brady Workstation Design & Print Pro Insert

More options. More applications. More professional.

A powerhouse for lab, safety and electrical professionals

Labs

Do more with a surplus of sizes, colors and materials

Easily locate equipment, assets and batches

Confidently label in the coldest, harshest environments

Safety & Facility and Lean 5S

Pipe markers, tool kits and bins

See bigger text from safer distances

Communicate info better: safety, caution & compliance

Wire & Cable and Electrical

Use 1 tool for multiple on-site applications

Create pre-set label options

Wrap, sleeve, tag and flag through challenging work

Features

Automatic label detection: Easier material loading with technology that automatically recognizes new cartridges and shows material info on the screen

Full-color LCD screen: Get a clear and accurate preview of your labels so you can print with confidence

Intuitive QWERTY keypad: Quickly format text and special characters on the easy-to-use keypad

Large window on cover door: Easily view the installed cartridge so you can always be sure what material you’re working with

Pre-sized and continuous labels (.25″ to 1.5″ width): Get more label size options with edge-to-edge printing and 300 dpi

Textured rubber overmolding: Get better grip with ergonomic textured rubber overmolding for improved durability

Numeric keypad: Ergonomically designed to enter data with more speed and accuracy

Hundreds of purpose-built materials for the applications you need

A few M510 label materials you need to know about

Material	Wire & Cable	Electrical & DataCom	Component & Equipment	Safety & Facility	Laboratory
Multi-Purpose Nylon
All-Weather Vinyl
Cryo & Vial Polyester
Tear-Resistant Tags
Heat-Shrink Sleeves
Flags
Metalized Matte Polyester
All-Weather Reflective

Specifications

Dimensions

Dimensions: 3.75″(H) x 5.75″(W) x 10″(D)

Display Size: 2.8″

Weight: 3.05 lbs.

Product Features

Color: Blue, Gray

Application: Asset Tracking, Barcode Labeling, Circuit Board Labeling, Component and Equipment Labeling, Data and Telecommunications Labeling, Electrical Labeling, Facility Identification, General Identification, Inventory and Inspection Labeling, Laboratory Labeling, Lean and 5S Labeling, Safety Identification, Warehouse Marking, Wire and Cable Labeling

Shipped With Battery: Yes

How Is Battery Shipped: NiMH Battery installed in equipment, Lithium Ion Battery shipped in box

Battery mAh Rating: 1200 mAh

Battery Weight: 0.93 lb

Built-In Label Wizards: 66 Block, Breaker Box, DesiStrip, Face Plate, Flags, General, Patch Panel, Terminal Block, Vial, Wire Wrap

Connectivity Options: USB

Cutter Type: Single Hand Manual Actuate, Straight Cut, With label retention

Display Type: Color LCD Screen, LCD backlit graphics display

Keyboard Type: QWERTY

Memory: 256 MB Flash, 512 MB RAM

Device Connectivity: PC connected, Stand-alone

Number of Symbols: 480

Plug Type: US

Power Supply Voltage: 110 – 240V

Auto Shut-Off / Power Conserve: 10 minutes, User Configurable

Recharge Time: 4 hours

Special Characters Quantity: 123

User Interface Type: Full QWERTY Keyboard, PC

Battery Type: Rechargeable NiMH Battery

Printing Specifications

Barcode Symbologies – 2D: Data Matrix, QR code

Barcode Symbologies – Linear: Code 128, Code 39, EAN-13, EAN-8, Interleaved 2 of 5, More through Brady WorkStation, UPC-A, UPC-E

Calibration Required: Automated through Smart Cell

Color Printing Capability: Single Color

Font Sizes: 4 – 170 pt

Font Styles: Brady Alpine, Brady Fixed Width

Label Retention Feature: Yes

Maximum Labels per Day: 1,000

Maximum Print Speed: 1.50 in/s

Minimum Label Length: 0.240 in

Print Resolution: 300 dpi

Minimum Liner Width: 0.813 in

Print Technology: Thermal Transfer

On Screen Indicators: Battery Life, Ribbon and label part number recognition, Supply Remaining

Device Drop Test & Durability: Resistant to 4-foot drops

Compatibility

Compatible Media: M4-, M4C-, M5-, M5C-

Label Material Types: BradyGrip® Polyester, FreezerBondz™ Polyester, Heat-shrink Polyolefin, Metallized Polyester, Nylon Cloth, Polyester, Polypropylene, Reflective Tape, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Tamper-resistant Vinyl, Vinyl, Vinyl Cloth, Water Dissolvable Paper

Continuous & Die-Cut Materials Supported: Continuous and Die-cut

Custom Labels Available: No

Maximum Label/Tape Width: 1.5 in

Maximum Print Width: 1.44 in

Maximum Printed Label Length: 39 in

Maximum Liner Width: 1.80 in

Software Compatibility: Brady Workstation

Languages Available: Bulgarian, Chinese (Traditional and Simplified), Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French (France), German, Italian, Japanese, Norwegian, Polish, Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Spanish (Mexico), Swedish, Turkish

Compliance

UNSPSC: 45101520

California Prop 65: WARNING: Cancer and Reproductive Harm

RoHS Compliance Status: Compliant with Directive 2011/65/EU and 2015/863

Product Overview

More Information

SKU	G101346
Part No.	M510
Brand	Brady Worldwide
Type	Portable
Compatible With	Brady M510
Includes	AC Adapter, Battery, Software
Warranty	2 Years
