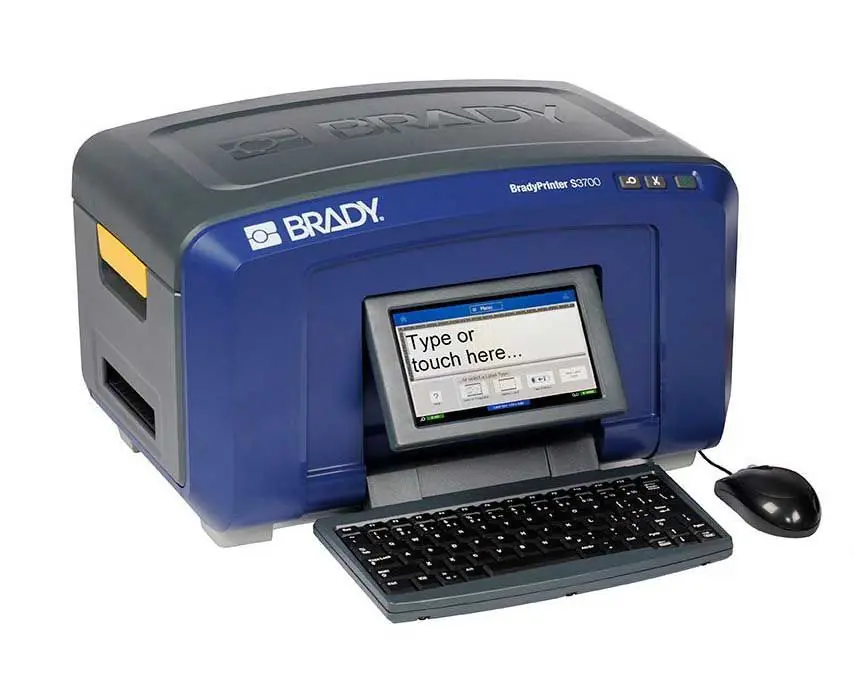

Brady Worldwide S3700 Multicolor Label Printers

What’s Included

	S3700-WB	S3700-KIT-COLOR	S3700-KIT-PIPE	S3700-KIT-ARC	S3700-KIT-STARTER	S3700-KIT-LEAN	S3700-M611-KIT	S3700-KIT-GHS	S3700-KIT-LOTO	S3700-KIT-LINK360	177546
Software	Safety & Facility ID	Safety & Facility ID	Safety & Facility ID	Safety & Facility ID	Safety & Facility ID	Safety & Facility ID	Safety & Facility ID	GHS, Safety & Facility ID	Safety & Facility ID	LINK360® Starter Bundle	Safety & Facility ID
Printer	S3700 Safety and Facility Printer	S3700 Safety and Facility Printer	S3700 Safety and Facility Printer	S3700 Safety and Facility Printer	S3700 Safety and Facility Printer	S3700 Safety and Facility Printer	S3700 Safety and Facility Printer & M611 Bluetooth Label Printer (M611)	S3700 Safety and Facility Printer	S3700 Safety and Facility Printer	S3700 Safety and Facility Printer	S3700 Safety and Facility Printer
Cleaning Kit (PCK-6)
Mouse
Power Cord
USB Cord
USB Flash Drive
Printer Power Cable
V1200 Battery (177234)
V1300 Cradle (177235)
V4500 Barcode Scanner (177233)
Brady Workstation Design & Print Essentials Insert
Quick Start Guide

S3700-KIT-COLOR: (1) 4″ Continuous Blue Vinyl Label (B30C-4000-595-BL), (1) 4″ Continuous Green Vinyl Label (B30C-4000-595-GN), (1) 4″ Continuous Red Vinyl Label (B30C-4000-595-RD), (1) 4″ Continuous White Vinyl Label (B30C-4000-595-WT), (1) 4″ Continuous Yellow Vinyl Label (B30C-4000-595-YL), (1) Black Ribbon Cartridge (B30-R10000), (1) White Ribbon Cartridge (B30-R10000-WT)

S3700-KIT-PIPE: (1) 2.25″ Continous Green Vinyl Labels (B30C-2250-595-GN), (1) 2.25″ Continous Red Vinyl Labels (B30C-2250-595-RD), (1) 2.25″ Continous Vinyl Label (B30C-2250-595-YL), (1) 2.25″ Continuous Blue Vinyl Labels (B30C-2250-595-BL), (1) 4″ Continous Blue Vinyl Labels (B30C-4000-595-BL), (1) 4″ Continous Green Vinyl Labels (B30C-4000-595-GN), (1) 4″ Continous Red Vinyl (B30C-4000-595-RD), (1) 4″ Continous White Vinyl Labels (B30C-4000-595-WT), (1) 4″ Continous Yellow Vinyl Labels (B30C-4000-595-YL), (1) Black Ribbon Cartridge (B30-R10000), (3) White Ribbon Cartridges (B30-R10000-WT)

S3700-KIT-ARC: (1) 2.25″ Continuous Orange Vinyl Label (B30C-2250-595-OR), (1) ANSI WARNING Vinyl Labels (B30-25-595-ANSIWA), (1) Raised Panel Polyester Labels (B30EP-174-593-WT), (1) S3700 Safety and Facility Printer (S3700-WB), (1) USB Flash Drive, (2) Black Ribbon Cartridges (B30-R10000)

S3700-KIT-STARTER: (1) 1.125″ Continuous White Vinyl Label (B30C-1125-595-WT), (1) 2.25″ Continuous White Vinyl Label (B30C-2250-595-WT), (1) 2.25″ Continuous Yellow Vinyl Label (B30C-2250-595-YL, (1) 4″ Continuous White Vinyl Label (B30C-4000-595-WT), (1) 4″ Continuous Yellow Vinyl Label(B30C-4000-595-YL), (1) 4×6″ White Vinyl Label (B30-25-595-BLNKWT), (1) Red Ribbon Cartridge (B30-R10000-RD), (1) White Ribbon Cartridge (B30-R10000-WT), (2) Black Ribbon Cartridges (B30-R10000)

S3700-KIT-LEAN: (1) 2.25″ Continous Yellow Polyester Label (B30C-2250-483YL-KT), (1) 2.25″ Continuous White Vinyl Label (B30C-2250-595-WT), (1) 2.25″ Continuous Yellow Vinyl Label (B30C-2250-595-YL), (1) 2.5″ Coninuous Magnetic Polyester Label (B30C-2500-509-WT), (1) 3.85×2.25″ White Vinyl Label (B30-219-595-BLNKWT), (1) 4″ Continuous Yellow Label (B30C-4000-595-YL), (1) 4″ White Vinyl Continuous Label (B30C-4000-595-WT), (1) 4.25″ Continuous Magnetic Polyester Label (B30C-4250-509-WT), (1) 4-Color Ribbon Cartridge (B30-R10000-KRYG-8), (1) Black Ribbon Cartridge (B30-R10000), (1) Blue Ribbon Cartridge (B30-R10000-BL), (1) Red Ribbon Cartridge (B30-R10000-RD), (1) White Ribbon Cartridge (B30-R10000-WT)

S3700-M611-KIT: (1) 0.5″ Continuous White Vinyl Labels (M6C-500-595-WT), (1) 0.5″ Continuous Yellow Vinyl Labels (M6C-500-595-YL), (1) 1″ Continous White Vinyl Labels (M6C-1000-595-WT), (1) 1″ Continuous Yellow Vinyl Labels (M6C-1000-595-YL), (1) 2.25″ Continous White Vinyl Labels (B30C-2250-595-WT), (1) 2.25″ Continous Yellow Vinyl Labels (B30C-2250-595-YL), (1) 4″ Continous Yellow Vinyl Labels (B30C-4000-595-YL), (1) 4″ Continuous White Vinyl Labels (B30C-4000-595-WT), (2) Black Ribbon Cartirdges (M61-R10010), (2) Black Ribbon Cartridges (B30-R10000)

S3700-KIT-GHS: (1) Pre-Printed GHS Labels (B30-260-7569-CLP4B), (1) Pre-Printed GHS Labels (B30-262-7569-CLP4B), (2) Black Ribbon Cartridges (B30-R10000)

S3700-KIT-LOTO: (1) 3″ x 100 Ft White Outdoor Vinyl (B30C-3000-595-WT), (1) 3.25″ x 5.75″ OSHA DANGER Polyester Tags (B30-255-851-OSHADA), (1) 4.33″ x 200 FT R10000 Black Printer Ribbon (B30-R10000), (1) 4.33″ x 200 FT R10000 Red Printer Ribbon (B30-R10000-RD)

S3700-KIT-LINK360: (1) 3″ x 100 Ft White Outdoor Vinyl (B30C-3000-595-WT), (1) 3.25″ x 5.75″ OSHA Polyester Tags Danger (B30-255-851-OSHADA), (1) 4.33″ x 200 FT R10000 Black Printer Ribbon (B30-R10000), (1) 4.33″ x 200 FT R10000 Red Printer Ribbon (Red) (B30-R10000-RD)

Enhanced capabilities for a flawless facility

A powerhouse for lab, safety and electrical professionals

Multicolor brilliance

Put color at the core of your labeling for safety, Lean and work-in-process visuals that truly pop. Auto-adjusting multicolor panel ribbons last up to 60% longer and print color labels on a single cartridge.

Transformative shape cutting

Enjoy straighter lines, smoother curves and tighter connection points thanks to the precision XY plotter cutter. Plus, stack pipe markers and pack multiple shapes per label to minimize waste.

Faster print experience

Create and print faster than ever before with time-saving onboard templates, intuitive PC labeling software and a mobile app, plus 20-second material changeovers and 5 inches per second print speed.

Hundreds of purpose-built materials for the applications you need

A few S3700 label materials you need to know about

Material	Lockout Tagout	Lean/5S	Safety ID	Operations	GHS / HazCom	Pipe Marking	Equpment ID	Electrical ID
All Weather
Raised Panel Labels
Printable Tags
Repositionable Multi-Purpose Vinyl
Magnetic Polyester
ToughStripe Printable Floor Marking Tape
Preprinted Header Labels
Retro Reflective All-Weather
BradyGlo High Intensity Glow-In The Dark
Washdown Resistant
Washdown Resistant & Metal Detectable
Cold Temperature Application Polyester
Pre-Printed GHS CLP Chemical Labels
Low-Halide Multi-Purpose Polyester

Specifications

Dimensions

Dimensions: 11″(H) x 19″(W) x 14.25″(D)

Display Size: 6.11″ x 3.42″

Weight: 36.9 lbs.

Product Features

Color: Blue, Gray

Application: Asset Tracking, Barcode Labeling, Cold temperature Labeling, Component and Equipment Labeling, Electrical Labeling, Exit and Egress Marking, Facility Identification, Floor Marking, Food and Beverage Process Labeling, General Identification, Hazard Communication Identification, Healthcare and Hospital Labeling, Inventory and Inspection Labeling, Lean and 5S Labeling, Pipe and Valve Marking, Safety Identification, Security Identification, Temperature Indicating Labeling, Temporary Labeling, Warehouse Marking

Shipped With Battery: No

Built-In Label Wizards: Arc Flash, Circle Gauge, Custom Label, General Templates, GHS/CLP, Gradient Scale, Pipe Marker, PreMade Labels, Right-to-Know, Tags, WHMIS

Built-In Label Wizards: 66 Block, Breaker Box, DesiStrip, Face Plate, Flags, General, Patch Panel, Terminal Block, Vial, Wire Wrap

Connectivity Options: Bluetooth® 5 Low Energy (class II)

Cut Options Available: Cut at the end of print jobs, Cut between labels

Cutter Type: XY Cutter and Auto Cutter

Display Type: Color LCD Touch Screen

Estimated Media Changeover Time: 20 seconds

Keyboard Type: Full Size QWERTY

Media Sensor Type: Notch

Memory: 512 MB RAM

Device Connectivity: Mobile device connected, PC connected, Stand-alone

Number of Symbols: 664

Plug Type: US

Power Supply Voltage: 110 – 240V

Auto Shut-Off / Power Conserve: Yes

Print Preview Feature?: Yes

Special Characters Quantity: 95

Units: Inches, mm, Points

User Interface Type: Keyboard, Mobile device, PC, Touch Screen

Battery Type: No Battery

Printing Specifications

Automatic Label Set Up: Yes

Barcode Symbologies – 2D: PDF417, QR code

Barcode Symbologies – Linear: Code 128 Auto, Code 39, EAN-13, Interleaved 2 of 5, More through Brady WorkStation, UPC-A

Calibration Required?: No

Color Printing Capability: Multi-Color

Font Sizes: 4 – 600 pt

Font Styles: Arial, Arial 65, Courier New, MS Gothic, See Brady Workstation, Tahoma, Times New Roman, Trebuchet MS, Verdana

Maximum Labels per Day: 600

Maximum Print Speed: 5 in/s

Minimum Label Length: 0.5 in

Print Resolution: 300 dpi

Print Technology: Thermal Transfer

Media Sensor Adjustment: Automatic Adjustment

On Screen Indicators: Bluetooth Status, Data Reception, Error Messaging, Ethernet Status, Ribbon and label part number recognition, Supply Remaining, WiFi

Compatibility

Compatible Media: B30-, B30C-, B30EP-

Label Material Types: Heavy Duty Polyester, Magnetic Polyester, Metal-detectable Polyester, Metallic, Non-metal Polyester, Metallized Polyester, Paper, Phosphorescent Polyester, Polyester, Polyester with Polyester Overlaminate, Polyimide, Polyvinylfluoride, Reflective Tape, Tamper-evident Metallized Polyester, Transfer Tape, Vinyl, Vinyl Cloth

Continuous & Die-Cut Materials Supported: Continuous and Die-cut

Custom Labels Available: No

Maximum Label/Tape Width: 4.0 in

Maximum Print Width: 4.0 in

Maximum Printed Label Length: 8.3 ft

Maximum Liner Width: 4.25 in

Software Compatibility: Brady Workstation, Express Labels Mobile App, Windows based driver for 3rd party software use

Languages Available: Bahasa (Indonesian), Bahasa Malay, Bulgarian, Chinese (Traditional and Simplified), Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French (France), German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Spanish (Spain), Swedish, Thai, Turkish, Vietnamese

Compliance

UNSPSC: 45101519

California Prop 65: WARNING: Cancer and Reproductive Harm

RoHS Compliance Status: Compliant with Directive 2011/65/EU and 2015/863

Product Overview

More Information

SKU	G101351
Part No.	S3700
Brand	Brady Worldwide
Type	Benchtop
Compatible With	Brady S3700
Warranty	5 Years
