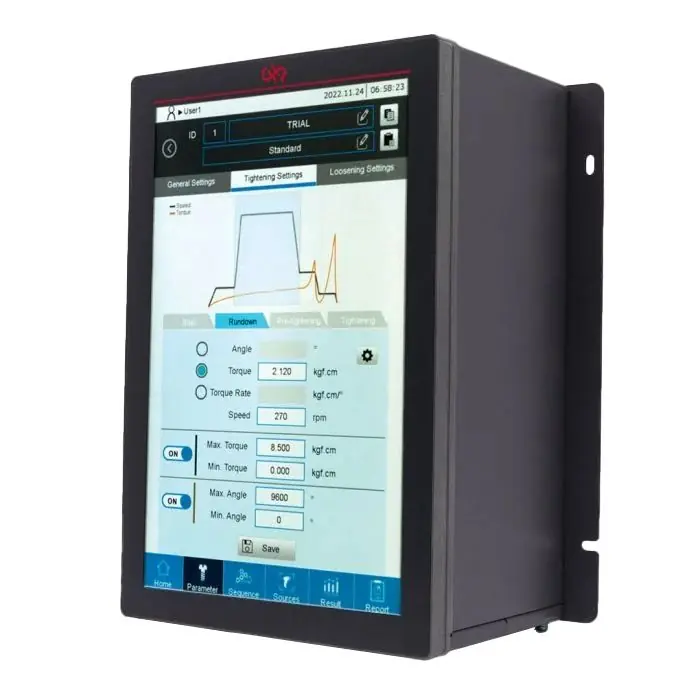

CHP ATX-P1 ATX Intelligent Single Port Controller

Intelligent Torque Drivers

The CHP ATX-12, 30, and 50 Intelligent Torque Drivers are premium non-slip grip drivers that work with the ATX Intelligent Torque Controller to calculate pressure and precision. The new CHP ATX Series Smart Servo Fastening System provides high-precision torque and angle-controlled fastening using a high-quality DC brushless servo motor, a high-precision transducer, and a high-resolution digital encoder for accurate angle measurement.

Touchscreen Smart Controller

The new generation of CHP Torque Drivers is now controlled via touchscreen digital controls for setting torque speeds, making it easier to change and manage torque speeds. The ATX Intelligent Torque Controller is a 10-inch, LCD touchscreen controller for the CHP ATX-12, 30, and 50 drivers. The controller includes a network interface that stores and exports graph data and is user-friendly and intuitive for easy set-up. LED backlight, the controller comes with either 1 or 2 ports for powering and controlling the ATX drivers. The large touchscreen interface allows the user to easily adjust the settings on the drivers for superior torque control.

Torque Range

These transducer drivers have an LED status indicator ring, use a 1/4″ hex bit, and has a torque range of 2.4 to 50 (kgf/cm) with a maximum speed of 2,000.

Specifications

Part No.: ATX-P1

Supported No. of Screwdrivers: 1

Input Voltage: 100 to 240 VAC 50/60 Hz

Power Consumption: 100 W

Output Voltage: 38 VDC

Continuous Output Current (RMS): 3.7 A / Screwdriver

Max Instantaneous Output Current (RMS): 15.0 A / Screwdriver

Display: 10.1″ TFT LCD Touchscreen

Resolution: 800 x 1280 24-bit RGB

Network Interface: 1 port RJ-45 10/100 Mbps Auto-Detect

Serial Interface 1 Port RS-232

HDMI Output: 1 port HDMI 1.4a

USB Host: 1 port USB 2.0

Digital Input/Output (Per Tool):

8 – Digital Outputs (150 mA max.)

8 – Digital Inputs (30 VDC max.)

Fastener Definitions: 500 max.

Fastener Sequence Definitions: 500 max.

Dimensions (W x D x H): 200 x 121.1 x 251.5mm (7.9″ x 4.8″ x 9.9″)

Operating Environment:

0 to 40°C (-32 to 104°F)

0 to 90% RH (Non-condensing)

Enclosure Rating: IP20

Product Overview

More Information

SKU	I356240
Part No.	ATX-P1
UPC/EAN	641328086132
Brand	CHP
Input	100 to 240V
Output	Single Tool
Compatible With	ATX Series
