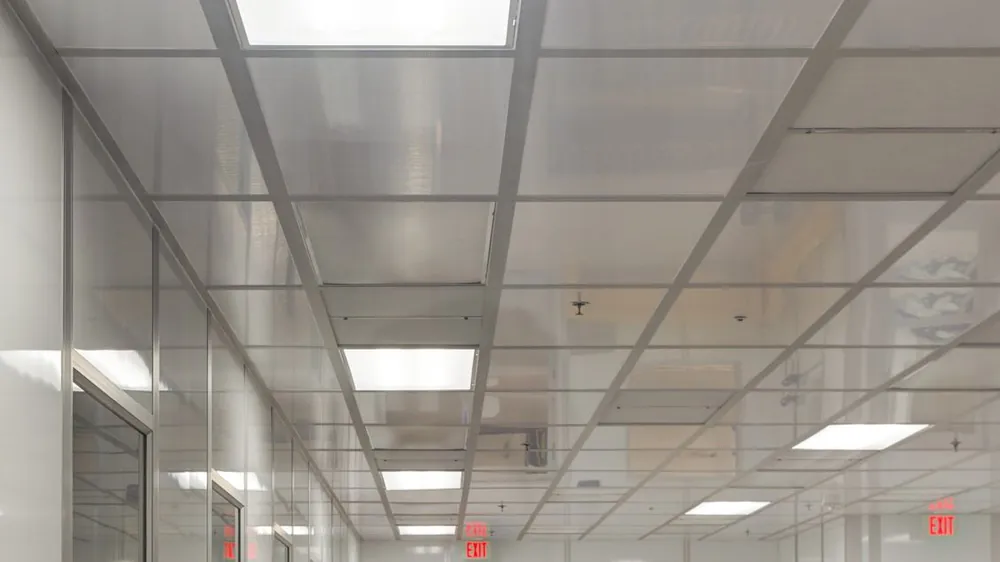

CleanPro® Megabond Aluminum Clad Cleanroom Ceiling Tiles

Specifications

Properties

Thickness: 6mm

Size: Panels for nominal 2′ x 4′ T-Grids measure 23.75″ x 47.75″

Weight: 10 lbs. per tile

Core: Extruded Solid Polyethylene

Texture Finish: Smooth

Color Finish: White Gloss or Satin

Thermal Expansion: 13.1×10^-6 in/in/°F

Tolerances: (+/-) 1/4″ (Length & Width) and (+/-) 1/32″ (Thickness)

Squareness: Equal Within 1/8″ (Diagonals)

Flatness: < 1/4" / 4 ft. (0.52%)

Performance

Fire Performance (ASTM E84):

Class: A

Flame Spread Index: 22

Smoke Developed Index: 400

Flexural Rigidity (EI) (ASTM E529): 22.0×10³ lb-in²/ft (6mm)

Warranty:

5 years against bond line delamination

5 years against color fade in excess of (8) NBS units and cracking, chipping, flaking, or peeling

Product Overview

More Information

SKU	G101161
Brand	CleanPro
Cleanroom-Safe	Yes
Cleanroom Class	ISO Class 3 (Fed. Class 1), ISO Class 4 (Fed. Class 10), ISO Class 5 (Fed. Class 100), ISO Class 6 (Fed. Class 1,000), ISO Class 7 (Fed. Class 10,000)
Width	23.75″
Length	47.75″
