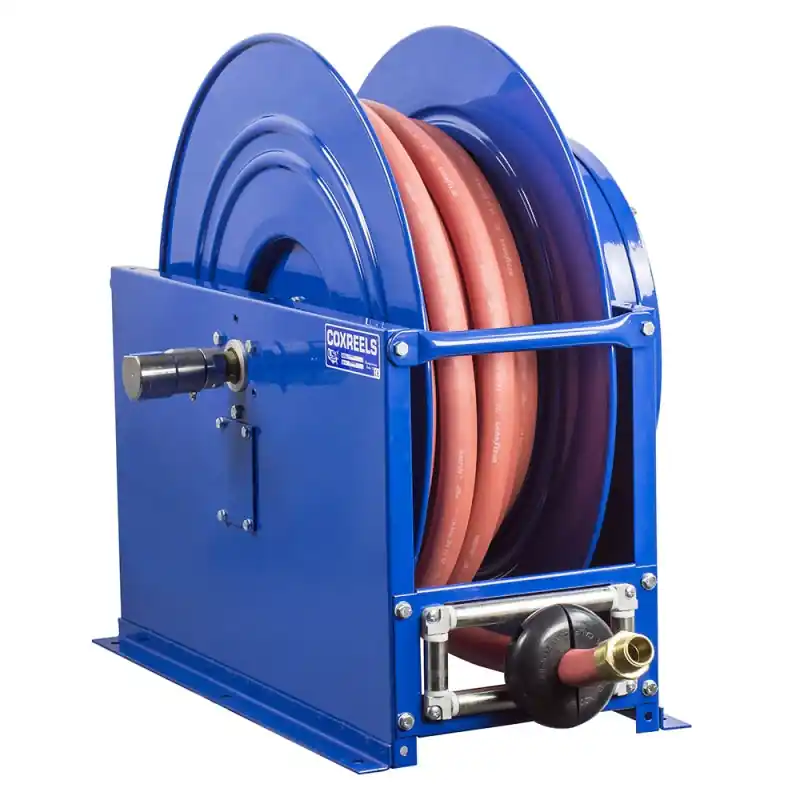

Coxreel Single Hose Aviation Spring Rewind Reel, Reel Only, 1″ x 50′ – SLPL-650
COXREELS® SP Series “Single Product Delivery” spring driven hose reels are built to handle large hose diameters. Used in applications demanding large volume delivery in low and medium pressures such as fuel and water. The sturdy box-style frame has heavy duty steel cross supports to all four corners for extra strength and rigidity.
Swivel
Machined from solid brass 90º full-flow NPT swivel inlets
Electroless nickel plated steel swivel on 1″ models
Straight in-line aluminum swivel on 1 -1/2″ models
Swivel Seals: NITRILE (AFLAS on 1″ models)
Design & Structure
Reel features a sturdy box-style frame designn
Reel adjusts to wall, floor, vehicle & overhead positions
Long lasting self-lubricated flange bearings for smooth rotation
Heavy duty 1″ stainless steel pinch-proof rollers
Retract
Enclosed factory tuned & matched cartridge-style spring motor
Non corrosive stainless steel pawl spring
Cast iron lock ring with non-sparking bronze pawl
Multi-position lock ratchet mechanism secures hose at desired length
Signature Features
Professional grade heavy duty steel construction
Rolled edges & ribbed discs provide strength & safety
Leading 2-year manufacturer’s limited warranty
Made in the U.S.A. – Sold & Supported Worldwide
SWIVEL– Electroless nickel plated steel 90º full-flow NPT swivel onn 1″ models for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
CARTRIDGE MOTOR– Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
CNC SPUN DISCS – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
BOX-STYLE DESIGN– Sturdy box-style, reinforced steel frame design provides maximum strenght and stability.
STEEL ROLLERS– Heavy duty 1″ stainless steel pinch-proof rollers.
OTHER FEATURES INCLUDE– long lasting, chip resistant and rust inhibiting CPC powder coat finish,and sturdy permanently lubricated precision bearings.
Model
I.D
O.D
Length
Hose
Max PSI
Ship Weight (lbs)
Overall Dimensions (W) (H) (L)
Mounting Pattern (M) (N)
Base (X) (Y)
SLPL-650
1″
1 1/2″
50′
No
300
109
19.63″(W)24.5″(H)26.38″(L)
14″(M)22″(N)
15.38″(X)25″(Y)
