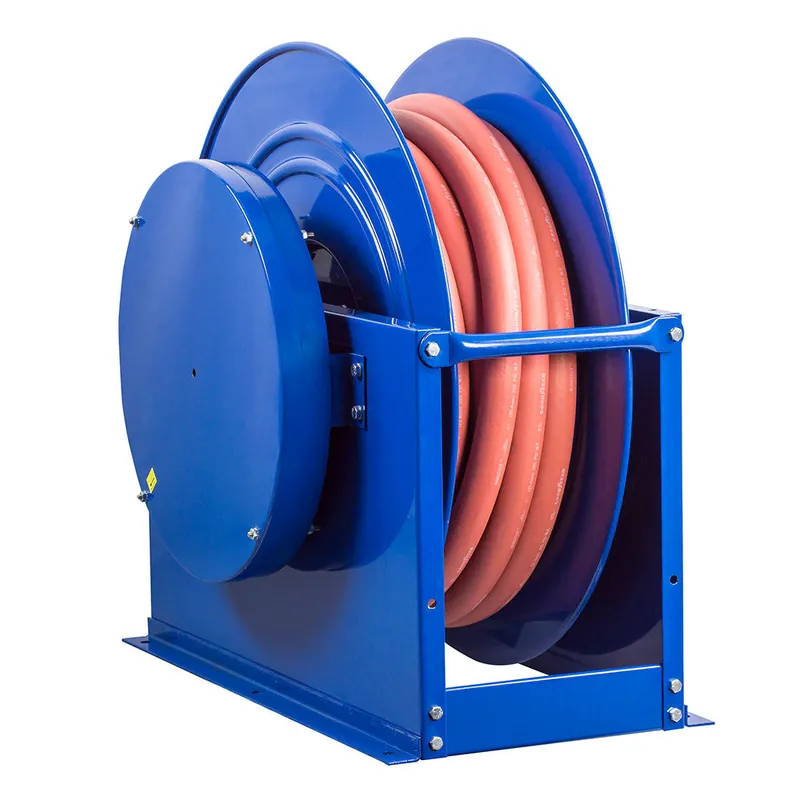

Coxreel Single Hose Spring Rewind Reel, SP Series, Reel Only, 1.5" x 35‘ - SLPL-835

Coxreel Single Hose Spring Rewind Reel, SP Series, Reel Only, 1.5″ x 35‘ – SLPL-835

Original price was: $2,779.10.Current price is: $298.98.

SKU: SK0101726-US20260630-101428 Category: Tag:

Coxreels SLPL-835 Single Hose Spring Rewind Hose Reel | SP Series | 1 1/2″ Hose Diameter | 35′ Hose Length | 250 Max PSI | Less Hose

The Coxreels SLPL-835 Single Hose Spring Rewind Hose Reel is a high-quality hose reel designed for efficient hose management in industrial and commercial applications. This spring rewind hose reel offers convenient hose storage, controlled deployment, and ease of use, making it an excellent choice for a variety of hose applications. This ensures long-lasting performance and protection against the elements, making it suitable for use in demanding environments. The reel’s robust design provides stability and durability, allowing for reliable hose management in different work settings. The SLPL-835 Hose Reel is specifically designed to accommodate a single hose, providing a streamlined solution for managing hoses of various lengths and diameters. It can handle hoses with a maximum length of 100 feet and a maximum diameter of 1 inch, catering to a wide range of fluid transfer needs. This SLPL-835 SP Series Hose Reel utilizes a spring rewind mechanism, enabling effortless and controlled deployment of the hose. The spring mechanism automatically retracts the hose back into the reel, eliminating the need for manual winding and reducing the risk of kinks or tangles. This feature ensures smooth and reliable hose retraction after each use, promoting efficient storage and prolonging the life of the hose. This feature provides convenience and control, ensuring the hose stays securely extended for efficient operations while maintaining safety and preventing accidental retraction. It helps preserve the integrity of the hose for long-term use. This swivel connection allows for effortless attachment of the hose, preventing twisting or tangling during operation.

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Spring Rewind Hose Reel | Series: SP Series | Hose I.D (in.): 1-1/2 | Hose O.D (in.): 2-1/16 | Hose Length (ft.): 35 | Hose Included: No | Max PSI: 250 | Width (in.): 18 | Height (in.): 28.5 | Length (in.): 30.38 | Mounting Pattern (in.): 14M | Mounting Pattern (in.): 26N | Base (in.): 15.38X | Base (in.): 29Y

Swivel

    Machined from solid brass 90º full-flow NPT swivel inlets

    Electroless nickel plated steel swivel on 1″ models

    Straight in-line aluminum swivel on 1 -1/2″ models

    Swivel Seals: NITRILE (AFLAS on 1″ models)

Design & Structure

    Reel features a sturdy box-style frame designn

    Reel adjusts to wall, floor, vehicle & overhead positions

    Heavy gauge 1/4″ steel base for maximum strength

    Reinforced steel frame provides maximumnstrength & stability

    Long lasting self-lubricated flange bearings for smooth rotation

    Heavy duty 1″ stainless steel pinch-proof rollers

Signature Features

    Professional grade heavy duty steel construction

    Rolled edges & ribbed discs provide strength & safety

    Leading 2-year manufacturer’s limited warranty

    Made in the U.S.A. – Sold & Supported Worldwide

    SWIVEL – Electroless nickel plated steel 90º full-flow NPT swivel onn 1″ models for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.

    CARTRIDGE MOTOR – Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.

    CNC SPUN DISCS – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.

    BOX-STYLE DESIGN – Sturdy box-style, reinforced steel frame design provides maximum strenght and stability.

    STEEL ROLLERS – Heavy duty 1″ stainless steel pinch-proof rollers.

    OTHER FEATURES INCLUDE – long lasting, chip resistant and rust inhibiting CPC powder coat finish,and sturdy permanently lubricated precision bearings.
Model I.D O.D Length Hose Max PSI Ship Weight (lbs) Overall Dimensions (W) (H) (L) Mounting Pattern (M) (N) Base (X) (Y) CAD Downloads
SLPL-835 1 1/2″ 2 1/16″ 35′ No 250 128 18″(W) 28.5″(H) 30.38″(L) 14″(M) 26″(N) 15.38″(X) 29″(Y)
