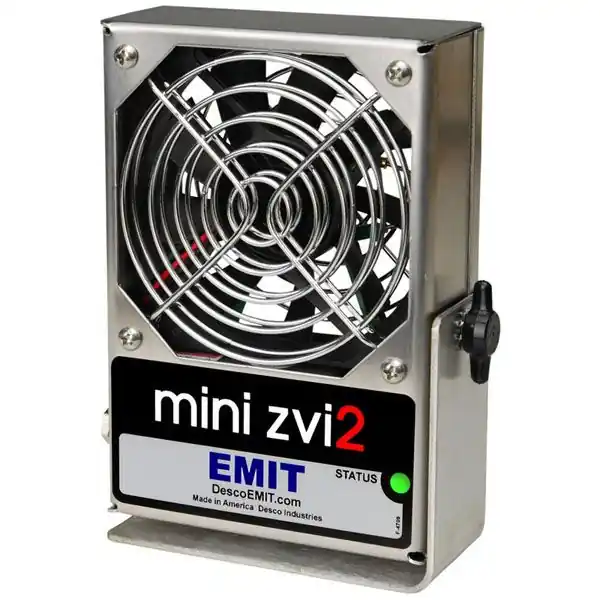

Desco 50642 Mini 2 Zero Volt Benchtop Ionizing Blower, 24V

Improved Fast Discharge Times (<3>

Neutralizes both positive and negative electrostatic charges within the coverage area.

MORE AIRFLOW High/Low Speed Fan (33 to 51 CFM)

Consistent performance at all speeds. Low airflow may be used when working with small moving parts and components that may move with higher airflow.

Compact Ionizer with Stand/Mounting Bracket (24 VDC Input)

Neutralizes electrostatic charges on insulators and ungrounded conductors in a 6.0″ x 24″ coverage area.

Compact Size (5.3″ High x 3.5″ Wide x 1.7″ Deep with Stand)

Use in confined spaces such as environmental chambers and around automated equipment or at standard ESD workstations.

±5 Volt Offset Voltage Balance

Outperforms required limits of ANSI/ESD S20.20 < ± 50 volts tested per ESD TR53.

Steady State DC Emitters

Spaced farther apart to prevent ion recombination, increase decay efficiency, and provide a broader coverage area of ionization.

Solid Tungsten Emitters

Maintains sharp point for optimal ionizer performance. Resists oxidation, melting and other damage that dulls the tip of the emitter

Shielded Bearings

Retains lubricant and minimizes contamination in the work area.

Stainless Steel Housing and Multi-Mount Stand

Minimizes foreign objects debris, corrosion, and other contaminations when used in clean or sensitive areas.

NIST Calibrated with Certificate

Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology

Calibration

100-240V Power Adapter with Interchangeable Plugs

Works with standard electrical systems in North America, United Kingdom, Japan, Asia and Europe

Made in the United States of America

Specifications

Air Flow: Two speed fan (33 CFM, 51 CFM)

Balance (offset voltage) at 12″: in front of Ionizer: ±5 Volts Typical ±25 Volts Maximum (Temperature Range: 65° F to 80° F, RH: 15% to 65%)

Chassis: Stainless steel housing and stand

Dimensions (with stand): 5.3″ x 3.5″ x 1.7″ (14 cm x 9.0 cm x 4 .0cm)

Emitter Points: 0.050″ base diameter Made of pure tungsten

High Voltage Power Supply: 5.5kV DC nominal

Input Power: 24 VDC, center positive, 2.5 x 5.5 mm power jack

Ion Emission: Steady-state DC with sense feedback

Mounting: Bench top tilt adjust frame

Ozone :< 0.05 ppm

Weight: 1.1 lbs. (0.5 kg)

Product Overview

More Information

SKU	I398710
Part No.	50642
Brand	Desco
Input	24V
