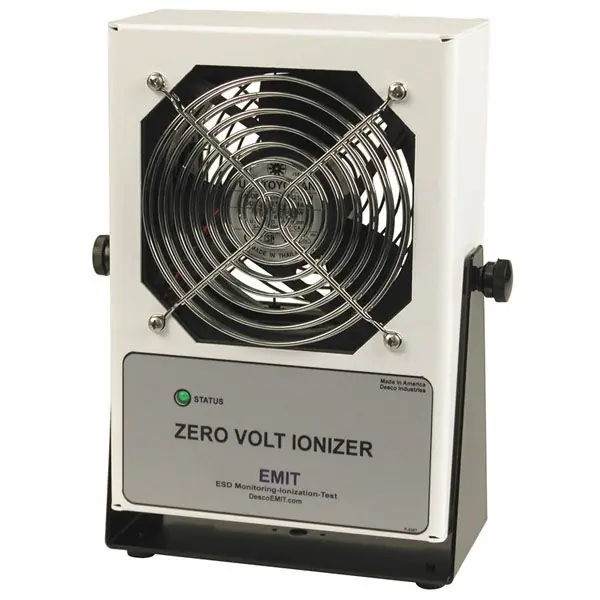

Desco 50690 Zero Volt Powder Coated Benchtop Ionizing Blower, 120V

Single Fan Steady-State DC Ionizer for 16″ x 24″ Coverage Area

Neutralizes electrostatic charges on insulators and ungrounded conductors within the coverage area

Less than 2.0 Seconds Discharge Time with ±3.0 Volts Balance (Offset Voltage) at 12″

Meets the required limits for ionization use in electronics manufacturing areas per ANSI/ESD S20.20 and ESD TR53

Sealed Plenum Air Flow

Prevents contamination from being introduced to the workstation

Auto-Feedback System (Audible and Visual Alarm)

Powers down automatically and alarms should the supply voltage drop

Selectable Input Voltage

Configures to 120V or 220V input voltage via internal jumpers

Low, Medium and High Fan Speeds (50-100 CFM)

Maintains optimum performance at all speeds and allows for use with airflow sensitive applications

Powder Coated Enclosure

Minimizes debris and corrosion for use in clean or sensitive areas

Nort

Specifications

The comparative efficiency of Benchtop ionizers is determined by a standard test published by the ESD Association: ANSI/ESD STM 3.1. Typical positive and negative decay times (1000V – 100V) measured using this standard are shown in Figures 6 and 7. The performance of the ionizer was measured with the unit positioned as shown, with the fan speed on high and without a filter.

Input Voltage and Frequency: Internally selectable for 100-120V, 50/60 Hz

Power Consumption: 12 W

Dimensions (including stand): 9.5″ H x 6.0″ W x 3.1″ D (241 mm x 152 mm x 79 mm)

Weight: 4.5 lbs. (2.0 kg)

Balance (Offset Voltage) at 12″: ±3.0 V typical ±25 V maximum

Neutralization (Discharge) Time at 12″: < 2.0 seconds

Airflow: Three-speed fan 50-100 CFM

Emitter Points: 0.050″ diameter tungsten

Ion Emission: Steady-state DC with sense feedback

Fuse: 250 mA slow blow

High Voltage: Power Supply 5.5 kVDC nominal

Ozone: <0>

Enclosure Powder: coated aluminum

Certifications: CE Country of Origin United States of America

Product Overview

More Information

SKU	I398573
Part No.	50690
Brand	Desco
Input	120V
