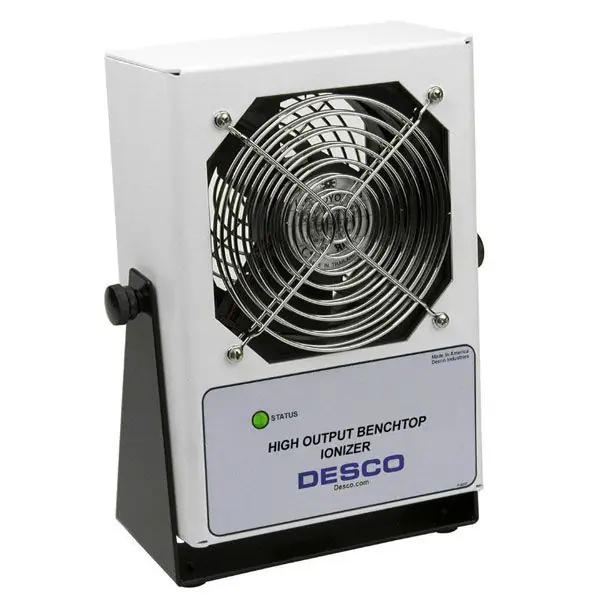

Desco 60505 High Output Benchtop Ionizing Blower, 120V

The Desco High Output Benchtop Ionizer is a compact and lightweight steady state DC auto-balancing benchtop worksurface ionizer with integrated closed-loop feedback. The unit is normally placed at one end of the workbench or area to be neutralized. It may also be mounted to a wall or shelf. The Ionizer’s neutralization discharge time will be best approximately 12″ to 48″ directly in front of the unit and will increase as the distance from the unit increases.

The Desco High Output Benchtop Ionizer employs Steady State DC technology. Steady State DC systems consist of separate negative and positive ion emitters connected by a pair of high-voltage cables to their respective high-voltage power supplies. The spacing between emitters varies depending on the design, and DC power is constantly applied to the emitter points. The ionizer uses feedback from the internal sensor grill to continuously adjust the output to maintain balance.

Specification

The comparative efficiency of benchtop ionizers is determined by a standard test published by the ESD Association: ANSI/ESD STM 3.1. Typical positive and negative discharge times (1000V – 100V) measured using this standard are shown in Figures 5 and 6. The performance of the ionizer was measured with the unit positioned as shown, with the fan speed on high and without a filter.

Input Voltage and Frequency: Internally selectable for 100-120V, 50/60 Hz

Power Consumption: 12W

Dimensions (including stand) 9.5″ H x 6.0″ W x 3.1″ D (241 mm x 152 mm x 79 mm)

Weight: 4.5 lbs. (2.0 kg) Balance (Offset Voltage) at 12″ ±3 V typical ±25 V maximum

Neutralization (Discharge) Time at 12″ < 2.0 seconds

Airflow Three-speed fan 50-100 CFM

Emitter Points: 0.050″ diameter tungsten

Ion Emission Steady-state DC with sense feedback

Fuse: 250 mA slow blow

High Voltage Power Supply: 5.5 kVDC nominal

Ozone <0>

Enclosure: Powder coated aluminum

Product Overview

More Information

SKU	I206207
Part No.	60505
Brand	Desco
ESD-Safe	Yes
Input	120V
