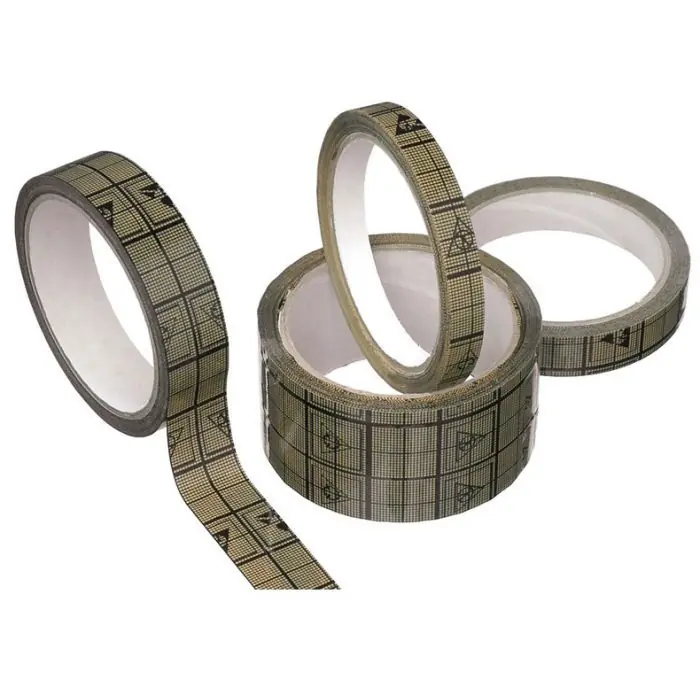

Desco Wescorp Anti-Static Conductive Shielding Grid Tape, 3″ Core, 118‘ Rolls

Low Charging Transparent Cellulose Film (2.4 Mil Thick) With High-Tack Rubber Adhesive – Wescorp tape generates less than 50 volts when unwound from roll (at 73°F, 45% RH average) making it safe to use around most ESD sensitive items.*

Conductive Shielding Layer (1 x 10⁴ to < 1 x 10⁶ ohms) Marked with ESD Symbols (MIL STD 1285 and ESDA) – For use in creating a Faraday Cage to provide static shielding of an ESD sensitive item.

Surface Resistance 1 x 10⁸ to < 1 x 10¹¹ohms – Tested per ANSI/ESD S11.11 to meet dissipative limits of packaging standard ANSI/ESD S541.

Temperature Range 10°C – 71°C (14°F – 140°F) – Meets MIL-B-81705 for exposure to 100°C for 10 minutes max.

Lead-Free RoHS Compliant

Made in USA

Applications for Conductive Shielding Grid Tape

For applications requiring EMI shielding

Use in areas where the generation of static electricity is of concern

Using grounded Tape Dispenser, voltage generated by unrolling will effectively be reduced to approaching zero

Secure (bundle) IC tubes

Cover external plugs, holes or connector pins on electronic chassis (black boxes, etc.) during transportation or storage

Specifications

Electrical Properties

Both surfaces low-tribocharging at 50% RH

Both surfaces low-tribocharging at 50% RH

Conductive grid layer 1 x 10⁴ to < 1 x 10⁶ohms at 50% RH

Adhesive copolymer resistivity 1 x 10⁹ohms (nominal) acrylic based adhesive

Copolymer layer 8 x 10¹²ohms (nominal)

Physical Properties

1.9 Mil (0.0019″), (0.049mm) total thickness

No silicone (adhesive, film backing, release material)

Max Temperature 60°C (140°F)

Non-corrosive

Property

Tensile Strength – Longitudinal: 160 N/mm sq. ; Test Method: ASTM D 882

Tensile Strength – Transverse: 270 N/mm sq.; Test Method: ASTM D 882

Elongation – Longitudinal: 160%; Test Method: ASTM D 882

Elongation – Transverse: 50%; Test Method: ASTM D 882

Static Decay Time: 0.5 sec; Test Method: FTMS 101B, M4046

Base Film Thickness: 30 micron

Peeling Force: 12 N

Cohesion Force: 12 hrs.; Test Method: LCTS-T2-4

Adhesion to Steel: 0.300 kg/25mm min.; Test Method: LCTS-T3-4

Product Overview

More Information

SKU	G100881
Brand	Desco
ESD-Safe	Yes
ESD Properties	Conductive
Length	118′ Roll
Type	Grid
