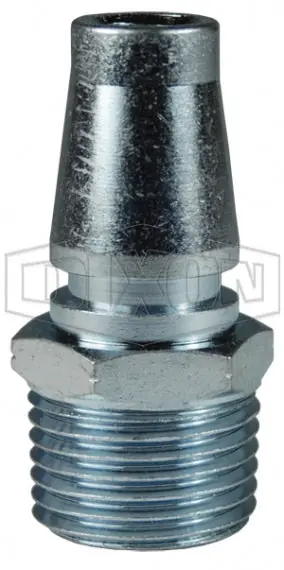

Dixon SHD-Series Schrader Pneumatic Male Threaded Plug

SHD-Series Schrader Pneumatic Male Threaded Plug

Manufacturer: Total Finishing Supplies

Part #: SHD2M2

Description: SHD-Series Schrader Pneumatic Male Threaded Plug

Maximum Operating Pressure: 300 PSI (20 bar)

Weight: 0.05 lb

Material: Steel

Maximum OD: 0.79″

Thread: NPT

Body Size: 1/4″

Temperature Range: -40°F to 250°F (-40°C to 121°C)

Burst Pressure: 6500 PSI (448 bar)

Thread Size: 1/4″

Length: 1.72″

Hex: 11/16″

Compatibility & Interchange Data

Schrader Twist-Lock Interchange

Parker Twist-Lock, Tomco Series-TL, Foster SHD

Construction

Machined components are manufactured using solid bar stock.

Steel componentry is plated using ROHS Compliant Trivalent Chrome.

Safety Notes

It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18″ long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.

ALL FITTINGS, VALVES, & ADAPTERS ARE NOT RETURNABLE. ALL SALES ARE FINAL
