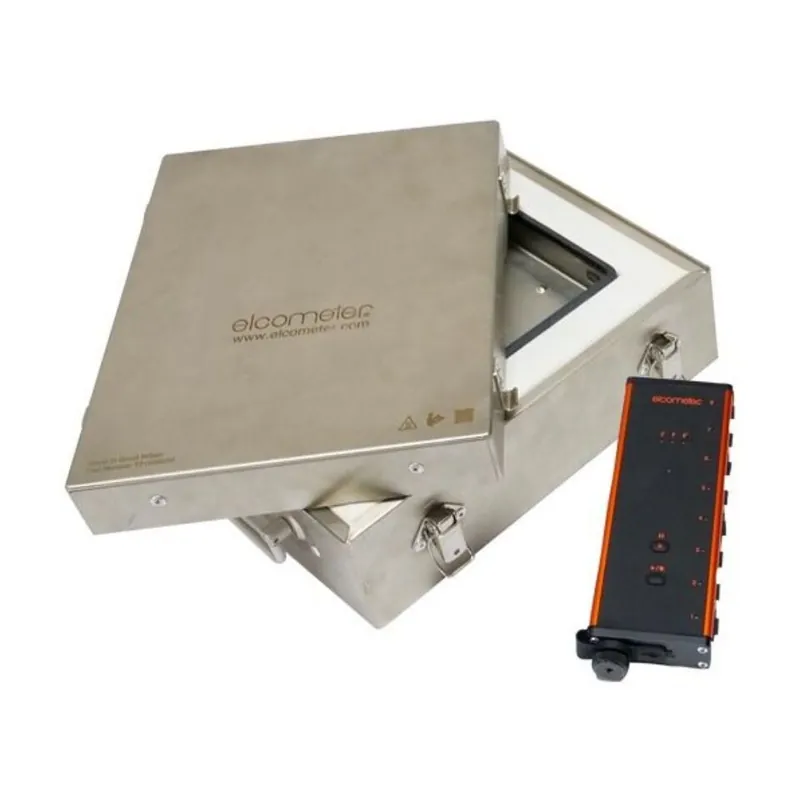

Elcometer 215 Oven Temperature Profiler & Thermal Barrier

Elcometer 215 Oven Temperature Profiler & Thermal Barrier

Tempurature Probes Listed Below

Manufacturer: Elcometer

Part Number: G215-DL

Description: The Elcometer 215 Temperature Profiler w/ Thermal Barrier is the industrial benchmark for capturing accurate curing data. This eight-channel thermal profiler measures both product and air temperatures from –328 °F to 2,372 °F (–200 °C to 1300 °C) with ±0.9 °F accuracy below 932 °F (500 °C). It stores over 1,000,000 readings across 40 runs. Integrated USB-C and long-range Bluetooth® let you start, stop or stream live traces without cracking the barrier.

Housed in anodized aluminum and sealed inside a robust thermal barrier, the logger can withstand 212 °F for 180 min or 572 °F for 60 min—ideal for the toughest conveyor or batch ovens. LED status lights and ElcoMaster® software instantly flag pass/fail, calculate cure-index and build professional reports that help you excel in audits and win new business.

8 independent channels accept Type K, T, J, N, S, E, B & R probes for simultaneous surface and air logging.

Adjustable sampling get samples on the schedule that you want. Adjust the sample rate to as low as one second or define a custom time period.

150 + hour battery life or continuous USB power keeps your oven profiler running shift after shift.

Integrated magnets allow you to mount the barrier outside batch ovens; integrated cable guide protects probe leads.

Works with the free ElcoMaster® app for live dashboards, firmware updates and cloud archiving.

From powder-coat lines to aluminum heat-treat, the Elcometer 215 delivers an actionable temperature profile that cuts energy costs, eliminates rework and proves compliance in seconds.

Specifications:

Gauge Measurement Range	-200°C to 1300°C (-328°F to 2372°F)
Gauge Operating Temperature	-20°C to 80°C (-4°F to 176°F) without thermal barrier
Accuracy	0°C to 500°C: ±0.5°C (32°F to 932°F: ±1.0°F) >500°C: ±1.0°C (> 932°F: ±2.0°F)
Resolution	0.1°C (0.2°F)
Number of Channels	8
Sensor Type	Type K, Type T, Type J, Type N , Type S, Type E, Type B, Type R Thermocouples
Measurement Intervals	Adjustable from 1 per second to 1 per hour
Memory	1,000,000 readings
Multiple Run Capability	Up to 40 profile runs before returning to PC
Batches	Up to 40 sequential batches (25,200 readings per batch)
Display	LED’s
Data Output	USB or Bluetooth®1
Housing Material	Anodised Aluminium
Power Supply	3 x AA batteries or USB
Battery Life	150+ Hours
Thermal Barrier Characteristics	100°C (212°F) for 180 minutes 150°C (302°F) for 120 minutes 200°C (392°F) for 90 minutes 250°C (482°F) for 80 minutes 300°C (572°F) for 60 minutes
Gauge Dimensions	191 x 73 x 25mm (7.52” x 2.87” x 0.98”)
Dimensions (in thermal barrier)	245 x 245 x 115mm (9.65 x 9.65 x 4.5”)
Gauge Weight	464g (16.4oz)
Weight (in thermal barrier)	5.62kg (12.4lb)
Packing List	Elcometer 215 Oven Data Profiler, thermal barrier2, ElcoMaster® software download card, USB cable, carry case2, 3 x AA batteries and operating instructions

Literature:

Elcometer 215 Temperature Probes

A wide range of K-Type temperature probes is available with 1.5m (4’9″), 3m (9’8″) or 6m (19’7″) cable length. The Elcometer 215 can be used with a combination of up to 8 probes simultaneously and feature:

Perfect contact between probe and surface

Low mass and optimized shape to avoid influence on temperature of sample

Extremely strong, highly flexible and easy to clean Teflon® coated cables

Air temperature probe – available with either a clamp or magnet

Clamp Air Probe (1.5m) –

Clamp Air Probe (3m) –

Magnetic Air Probe (1.5m) –

Magnetic Air Probe (3m) –

Magnetic Air Probe (6m) –

Clamp surface probe – small, elegant surface probe for any type of material

Clamp Surface Probe (1.5m) –

Clamp Surface Probe (3m) –

Magnetic Surface probe – suitable or use on magnetic surfaces, this probe has a PTFE coated grip for safe removal from the substrate with a flexible metal probe arm

Magnetic Surface Probe (1.5m) –

Combined Clamp / Magnetic Air and Surface probe – a versatile probe, especially useful when a variety of magnetic and non-magnetic samples is being used

Magnetic, Clamp Air & Surface Probe (1.5m) –

Magnetic, Clamp Air & Surface Probe (3m) –
