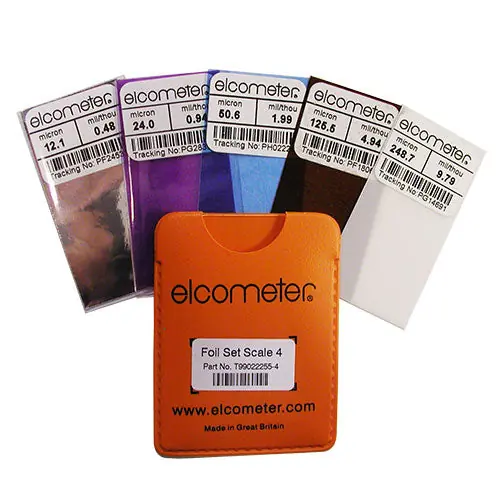

Elcometer Scale 4 Precision Foil Set (T99022255-4)

Scale 4 Precision Foil Set (T99022255-4)

Manufacturer: Elcometer

Part #: T99022255-4

Description: (0.5, 1, 2, 5, 10 MILS)

Calibration foils or ‘shims’ are the most convenient way of creating a coating thickness standard on the substrate material, surface finish or form. This is the ideal method for adjusting the calibration of the coating thickness gauge to ensure the greatest possible accuracy.

Features:

Metric and Imperial values displayed on each foil

Available individually or in foil sets

Each foil has unique serial number for traceability

Available in thicknesses from 12.5µm to 25mm (0.5 to 980mils)

Precision foils have a ±1% accuracy. Foils below 50µm (2.0mils) have an accuracy of ±0.5µm (0.02mil).

Please note: The range and color of foils may be different than what is pictured. Refer to the technical specifications tab to be sure of the range for each foil set.

Additional Foil Sets:

Scale	Un-Certified	Certified	Mils
Scale 1			1.0, 2.0, 5.0, 10, 20, 40
Scale 2			1.0, 2.0, 5.0, 10, 20, 40, 80, 120
Scale 3			10, 20, 40, 80, 160, 310
Scale 4	T99022255-4		0.5, 1.0, 2.0, 5.0, 10
Scale 5			0.5, 1.0, 2.0, 5.0, 10, 20
Scale 6			40, 80, 200, 370, 590, 980
Scale 7			0.5, 1.0, 2.0, 5.0, 10, 20
Scale 8			1.0, 2.0, 5.0, 10, 20, 40, 80 (x2)
