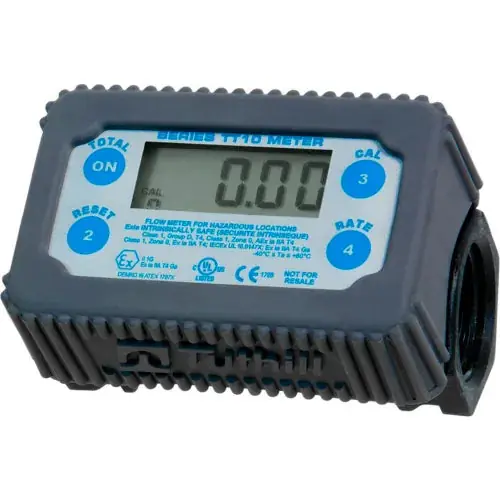

This Digital Chemical Transfer Meter is extremely accurate, durable, and can be installed both in-line at the nozzle or mounted directly at the pump.
• Ready out of the box, factory calibrated for over 20 different fluids for easy installation and use • Can measure fluids within 1% accuracy • 4-digit, digital, LCD display rotates 180 degrees • Tracks fluids in any user-created unit, including gallons, litres, ounces, pints, and quarts • Non-resettable counter tracks total volume over the lifetime of the meter, even if batteries are replaced • External rubber boot provides protection and impact resistance for tough applications • NPT thread connection • Two AA batteries included
Mfr Part #:TT10PN
Stocking Type:Purchased inc. Raw Material
Dimensions:2.7″ x 4.1″ x 2.9″ (H x W x D)
Weight:0.8 lbs (0.36 kgs)
Temperature:-26°C (-15°F) to 60°C (140°F).
Gallons Per Minute GPM :35 (132 LPM)
Inlet Outlet Size:1″/1″
Operating Pressure:50 PSI
Weights & Dimensions
Length
4 in
Width
2-5/8 in
Height
2-7/8 in
Weight
0.6 lbs
Inlet Connection
1 in
Product Details
Mount
In-line
Outlet Connection Type
NPT
For Use With
Fuel Transfer Pumps
Gallons per Minute
2 to 35 gal/min
Manufacturers Part Number
TT10PN
PSI
50.0 psi
Brand
Fill-Rite
Type
Accessory
Color
Black
Outlet
1
Fuel Type
DEF, Anti-freeze, De-icing fluid, Non-Potable Water, other chemicals
Housing Material
Engineered Polymer
Inlet Connection Type
NPT
Warranty
Warranty
2 yr
Compliance & Certifications
Certifications
UL, cUL, CE, ATEX, Iex, ANZEX
