GRACO 24V646 – LD Blue Electric Pump Package – 5 ft Suction Hose Length – Manual Nozzle – SST Clamp

GRACO 24V646 – LD Blue Electric Pump Package – 5 ft Suction Hose Length – Manual Nozzle – SST Clamp Fittings

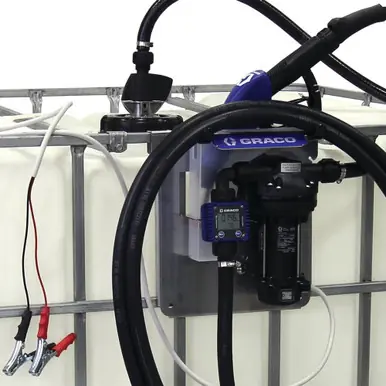

GRACO LD Blue Electric Pump Package featuring long-lasting efficiency in a compact, high-performance design with reduced maintenance through self-priming membrane pump technology that eliminates the need for dynamic seals. Delivers extended uptime with up to twice the life of competitive pumps and includes built-in safety features with automatic shut-off timer to prevent overrunning and maximize pump life.

Graco’s LD Series DEF solutions offer long-lasting efficiency in a compact, high-performance electric pump package capable of pumping up to 9 gpm (34 lpm). Whether a small garage, large dealership, or heavy equipment maintenance facility, Graco has a complete line of Diesel Exhaust Fluid (DEF) products for every application. Our electric, pneumatic, or manual products are engineered specifically for the advanced needs of DEF fluid and are designed to minimize downtime and dispense materials quickly without compromising chemical integrity.

Typical applications include automotive and heavy-duty dealerships, agriculture, service and fast lube centers, and fleet service facilities.

Reduces maintenance featuring a self-priming membrane pump

Stays running longer, reducing downtime and getting more work done with the LD Blue Systems- up to twice the life of competitive pumps.

Built-in safety and reliability with an automatic shut off timer (6.5min) incorporated into 120V pumps.

Preventing the pump from running past the duty cycle and maximizing the life of the pump

2 Year Warranty. See manufacturers website for details.

Additional Specifications

Length: 5 ft suction hose

Max Working Pressure: 3.4 bar

Material: SST clamps

Mount Type: Tote

Meter: Yes

Nozzle: Auto

Container Dispense Coupler: No

Depth: 208 mm

Height: 393 mm

Weight: 15.9 kg

Frequency: DC

Power: 260W

Current: 22 Amps

Rpm: 2600

Operating Temperature: -5 to 40C

Duty Cycle: S3 50% 40 min.

Maximum Flow Rate: 36 lpm

Ingress Protection: Rain Proof

Application	Industrial
Compatible Material	Diesel Exhaust Fluid
Fluid Inlet Size (in)	1
Fluid Outlet Size (in)	NPT
Fluid Outlet Thread Gender	Female
Fluid Outlet Thread Type	BSP
For Use With	DEF
Includes	12 V Electric Pump, Stainless Steel Bracket with Nozzle Holder, LD Automatic Nozzle with SST Spout, LD DEF Meter, Elbow Fitting, Dispense Hose and 2 Clamps, Suction Hose and 2 Clamps
Maximum Fluid Pressure (MPa)	0.35
Maximum Fluid Pressure (psi)	50
Series	Blue
Type	Electric Pump Package

Features

Self-priming membrane pump with no dynamic seal

Up to twice the life of competitive pumps

Built-in safety and reliability with automatic shut-off timer

Compact, high-performance electric pump package

Long-lasting efficiency

Reduced maintenance design

Applications

DEF/AdBlue dispensing

Tote container fluid transfer

Mobile fluid dispensing applications

Compatible Equipment

Tote containers

Related Parts

24V641 – LD Blue Electric Pump Package – 5 ft Suction Hose Length – Automatic Nozzle – SST Clamp Fittings

24V645 – LD Blue Electric Pump Package – 5 ft Suction Hose Length – Manual Nozzle – SST Clamp Fittings

24V644 – LD Blue Electric Pump Package – Tote Mount, 120V, Manual Nozzle

24V656 – LD Blue Electric Pump Package – 5 ft Suction Hose Length – Manual Nozzle – SST Clamp Fittings

26C172 – System Deftot 12V SSnoz w/ Mtr, 50 PSI

26C173 – LD Blue DEF System, TOT, 12VDC

26C174 – LD Blue 120V Electric DEF Tote Mount Dispense Pump Package

26C175 – LD Blue 120V Electric DEF Tote Mount Dispense Pump Package w/ Meter, 50 PSI

Kit Contents

12V electric pump

Stainless steel bracket with nozzle holder

LD DEF meter and 1″ elbow fitting

20′ dispense hose with SST clamps

5′ suction hose with SST clamps

127643 – Pump 12 Vdc

127655 – Nozzle

– Suction Hose

– Delivery Hose

103927 – SS Hose clamps

– Oring

– Swivel Ring Nut

– Hose barb fitting

– Swivel protection boot

– Rope

Part of the LD Blue electric pump package family. Configured specifically for tote applications with meter and auto nozzle setup. This is a complete DEF (Diesel Exhaust Fluid) system package. The table shows quantities of each component included in this model versus other models in the same family. Part of a family of AdBlue pumps with various configurations including tote and drum mount options, with different meter and nozzle combinations

Reference Manuals

352322 (Page 4) DEF Dispensing Systems

333470 (Page 6) Tote and Drum Dispense Systems for Diesel Exhaust Fluid (DEF) (ISO 22241) French, Spanish
