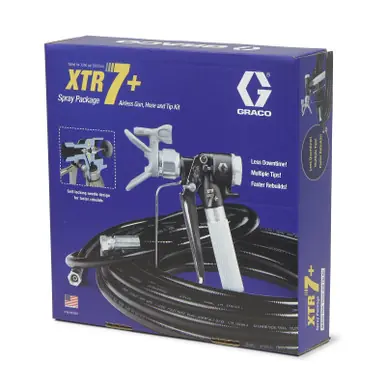

GRACO 26C963 – XTR7+ Gun, Hose & Tip Kit, 7250 PSI

GRACO 26C963 – XTR7+ Gun, Hose & Tip Kit, 7250 PSI

XTR7+ (2) XHD519 SwitchTips, hose and whip hose kit designed for heavy-duty spray applications requiring maximum flow and superior atomization with GRACO’s XHF High-Flo airless spray gun technology

Features:

Bundle, replace and save with this Graco XTR7+ Gun, Hose and Tip Kit. The new self-locking needle assembly of the XTR7+ breaks down for cleaning or rebuilds without the need for cumbersome tools. The appearance of the XTR7+ reflects the Xtreme Duty Hose included, providing confidence that hose to tip are rated to 7250 PSI maximum working pressure. Combine all of this with multiple Graco XHD RAC tips and you’re ready to spray the most challenging of materials.

Protective coatings solution in a box – saving you time and money.

Save time and money replacing your wetted components

Faster gun rebuilds with self-locking needle design

XTR7+ maximum fluid pressure: 7250 PSI (500 bar, 50 MPa)

Xtreme Duty Hoses included: 3/8 in x 50 ft (15 m), 1/4 in x 6 ft (1.8 m)

Multiple XHD RAC tips included – (1) XHD317, (1) XHD319

Additional Specifications

Max Working Pressure: 7250 PSI (500 BAR)

Gun Model: XTR720

Includes	XTR7+, 3/8 in x 50 ft (15 m) Xtreme-duty Hose, Reducing Nipple, 1/4 in x 6 ft (1.8 m) Xtreme-duty Hose, (2) XHD519 RAC SwitchTip
Maximum Working Pressure (MPa)	50
Maximum Working Pressure (psi)	7250
Number of Pieces	6
Type	Spray Gun Kit

Features

Oversized fluid path for maximum flow and minimal restriction

Patented needle design with factory-set handle requiring no adjustment

Heavy-duty design for maximum performance and long life

Filter-less design for maximum flow and superior atomization

Jobsite proven for demanding high viscosity protective coatings

Form-fitting handle for maximum control and comfort

Applications

Heaviest coatings and fibrous materials

High viscosity protective coatings

Epoxy intumescent coatings

Fiber filled materials

Heavy coatings applications

Fibrous materials spraying

Compatible Equipment

XHF High-Flo airless spray gun systems

Related Parts

XTR302

26C962 – XTR5+ Gun, Hose & Tip Kit, 7250 PSI

273142 – XTR5+ Gun, Hose & Tip Kit, 7250 PSI (500 Bar)

273143 – XTR7+ Gun, Hose & Tip Kit

Kit Contents

XTR7+ gun

XHD519SwitchTips (2)

whip hose

XTR7AL gun components

MID519 SwitchTip

XTR720 – XTR7+ Airless Spray Gun, Round Handle, 4-Finger Trigger, No Tip

(2) XHD519 tips

Whip

Part of GRACO’s XHF High-Flo gun family designed for the most demanding spray applications with heavy materials Part of the XHF High-Flo gun system which features oversized fluid passages, patented needle design, ergonomic design, and is jobsite proven for demanding applications including epoxy intumescent coatings and fiber materials Part of XTR+ Gun and Hose Kit family. Includes Xtreme Duty 3/8 in. x 50 ft (15 m) Hose and 1/4 in. x 6ft (2 m) Whip Hose. Also available in 8 pack with display as part number 26C973.

Reference Manuals

3J0416ENAP-A (Page 12)

3J0679EN (Page 12) ENEU

3J0679ENEU (Page 12)

null (Page 2)

3A7469 (Page 21) XTR5+ and XTR7+ Airless Spray Gun
