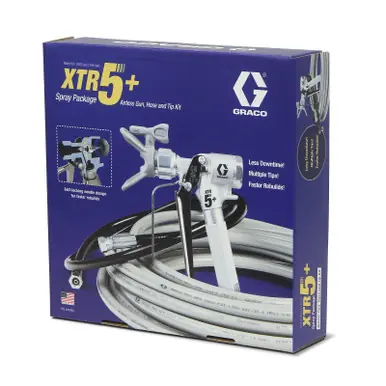

GRACO 273142 – XTR5+ Gun, Hose & Tip Kit, 7250 PSI (500 Bar)

GRACO 273142 XTR5+ Gun, Hose and Tip Kit

Features:

Bundle, replace and save with this Graco XTR5+ Gun, Hose and Tip Kit. The new self-locking needle assembly of the XTR5+ breaks down for cleaning or rebuilds without the need for cumbersome tools. The appearance of the XTR5+ reflects the Xtreme Duty Hose included, providing confidence that hose to tip are rated to 7250 psi maximum working pressure. Combine all of this with multiple Graco XHD RAC tips and you’re ready to spray the most challenging of materials.

Protective coatings solution in a box – saving you time and money.

Save time and money replacing your wetted components

Faster gun rebuilds with self-locking needle design

XTR5+ maximum fluid pressure: 5000psi (345 bar, 34.5 MPa)

Xtreme Duty Hoses included: 3/8 in x 50 ft (15 m), 1/4 in x 6 ft (1.8 m)

Multiple XHD RAC tips included – (2) XHD519

Compatible Equipment

XHF High-Flo airless spray gun systems

Related Parts

273141 – XTR520 Gun Kit

273148 – Electric Heated Hose Plug Kit

Reference Manuals

3J0416EN (Page 13) ENAP-A

3J0416ENAP-A (Page 12)

3J0679EN (Page 12) ENEU

3J0679ENEU (Page 12)

null (Page 2)

Specifications:

Includes	XTR5+, 3/8 in x 50 ft (15 m) Xtreme-duty Hose, Reducing Nipple, 1/4 in x 6 ft (1.8 m) Xtreme-duty Hose, XHD317 RAC SwitchTip, XHD319 RAC SwitchTip
Maximum Working Pressure (MPa)	34.5
Maximum Working Pressure (psi)	5000
Number of Pieces	6
Type	Spray Gun Kit
