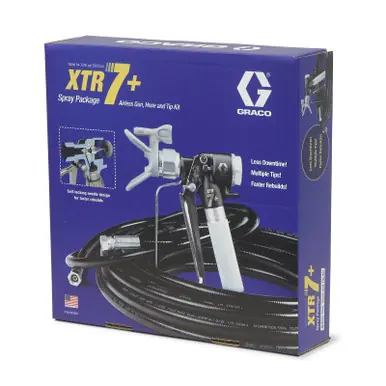

GRACO 273143 – XTR7+ Gun, Hose & Tip Kit, 7250 PSI

GRACO 273143 – XTR7+ Gun, Hose & Tip Kit, 7250 PSI

XTR7(2L) (X) MD519 Switch tip, hose and whip hose kit designed for heavy-duty spraying applications. Part of GRACO’s XHF High-Flo system engineered for the heaviest coatings and fibrous materials with oversized fluid passages and filter-less design for maximum flow and superior atomization.

Features:

Bundle, replace and save with this Graco XTR7+ Gun, Hose and Tip Kit. The new self-locking needle assembly of the XTR7+ breaks down for cleaning or rebuilds without the need for cumbersome tools. The appearance of the XTR7+ reflects the Xtreme Duty Hose included, providing confidence that hose to tip are rated to 7250 PSI maximum working pressure. Combine all of this with multiple Graco XHD RAC tips and you’re ready to spray the most challenging of materials.

Protective coatings solution in a box – saving you time and money.

Save time and money replacing your wetted components

Faster gun rebuilds with self-locking needle design

XTR7+ maximum fluid pressure: 7250 PSI (500 bar, 50 MPa)

Xtreme Duty Hoses included: 3/8 in x 50 ft (15 m), 1/4 in x 6 ft (1.8 m)

Multiple XHD RAC tips included – (1) XHD317, (1) XHD319

Additional Specifications

Max Working Pressure: 7250 PSI (500 bar)

Tip Sizes: XHD417 and XHD419

Gun Model: XTR7(2L)

Tip Type: MD519 Switch tip

Includes	XTR7+, 3/8 in x 50 ft (15 m) Xtreme-duty Hose, Reducing Nipple, 1/4 in x 6 ft (1.8 m) Xtreme-duty Hose, XHD317 RAC SwitchTip, XHD319 RAC SwitchTip
Maximum Working Pressure (MPa)	50
Maximum Working Pressure (psi)	7250
Number of Pieces	6
Type	Spray Gun Kit

Features

Oversized fluid path for no-filter design with minimal restriction and maximum flow

Patented needle design factory set for adjustment-free operation

Heavy-duty design for maximum performance and long life

Ergonomic form-fitting handle provides maximum control and comfort

Optimized trigger and lightweight design for effortless all-day spraying

Jobsite proven for demanding high viscosity protective coatings

Applications

Heavy coatings and fibrous materials

High viscosity protective coatings

Epoxy and intumescent coatings

Fiber filled materials

Professional spray applications requiring maximum flow

Heaviest coatings and fibrous materials

Compatible Equipment

XHF High-Flo gun systems

7250 PSI spray equipment

XHF High-Flo airless spray gun systems

XHF High-Flo spray system

GRACO airless spray equipment

Related Parts

273142 – XTR5+ Gun, Hose & Tip Kit, 7250 PSI (500 Bar)

190647, XHF Gun 269854, XTR7(2) (2) XHD419 SwitchTip, hose and whip hose 260963, XTR7(2) XHD417 and (1) XHD419 SwitchTip, hose and whip hose 271443

Kit Contents

XTR7DL gun

XHD317SwitchTip

XHD319SwitchTip

Hose

Whip hose

XTR7+ Gun

XHD417SwitchTip

XHD419SwitchTip

XTR7(2L) spray gun

MD519 switch tip

Part of the XHF High-Flo gun system designed specifically for the heaviest coatings and most demanding applications. Includes both hose and whip hose components along with two different SwitchTip options. Part of the XHF High-Flo gun family designed for the most demanding spray applications with maximum flow capabilities This is a complete gun and hose kit that includes spray gun, switch tip, hose and whip hose for professional spraying applications

Reference Manuals

3J0416EN (Page 13) ENAP-A

3J0416ENAP-A (Page 12)

3J0679EN (Page 12) ENEU

3J0679ENEU (Page 12)

null (Page 2)
